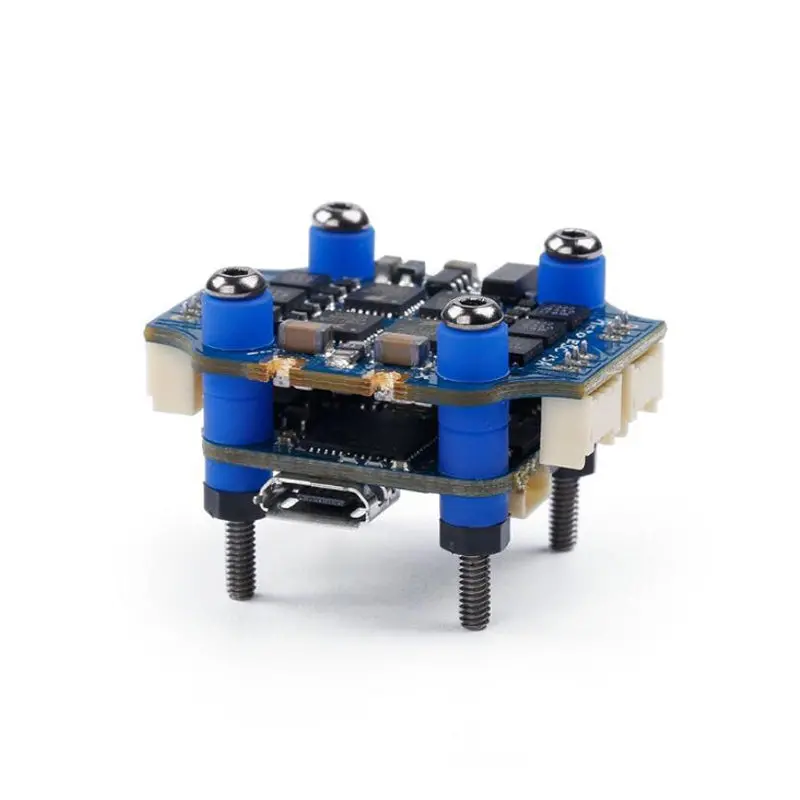

iFlight Succex F4 Flight Controller with Integrated 15A BLHeli_S ESCs (2–4S) for FPV Racing Drones

Description

iFlight SucceX F4 Flight Controller & 15A Blheli_S 2-4S Brushless ESC for RC Drone FPV Racing
Specification:

SucceX Micro F4 V2.1 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-Betaflight OSD :AT7456E
-Blackbox FLASH: 8MB
-BEC 5V 2.5A cont.
-Size: 21mm*21mm
-Mounting holes distance: 16*16mm
-Weight: 2.5g
-Firmware : betaflight_4.0.5_STM32F411.hex
-CLI dump file: IFF411_PRO.config

SucceX Micro 15A 4-in-1 ESC(w/plug)
-Firmware: G-H-30 BLS 16.7
-Input voltage : 2-4S LIPO
-Continuous current: 15A
-MCU: BB21F16G
-BEC: NO
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 3.6g

Downloads

*(SucceX Micro,Whoop)IFLIGHT_F411_PRO.config

*SucceX Micro 16×16,SucceX Whoop FC Firmware(beta flight 3.5.7)

*SucceX Micro 16×16,SucceX Whoop FC Firmware(beta flight 4.0.4)

*SucceX Micro F4 V2 Manual

Package Included:
1 x SucceX Micro F4 Flight controller (M3 hole)
1 x SucceX Micro 15A Brushless ESC (w/plugs,M3 hole)
