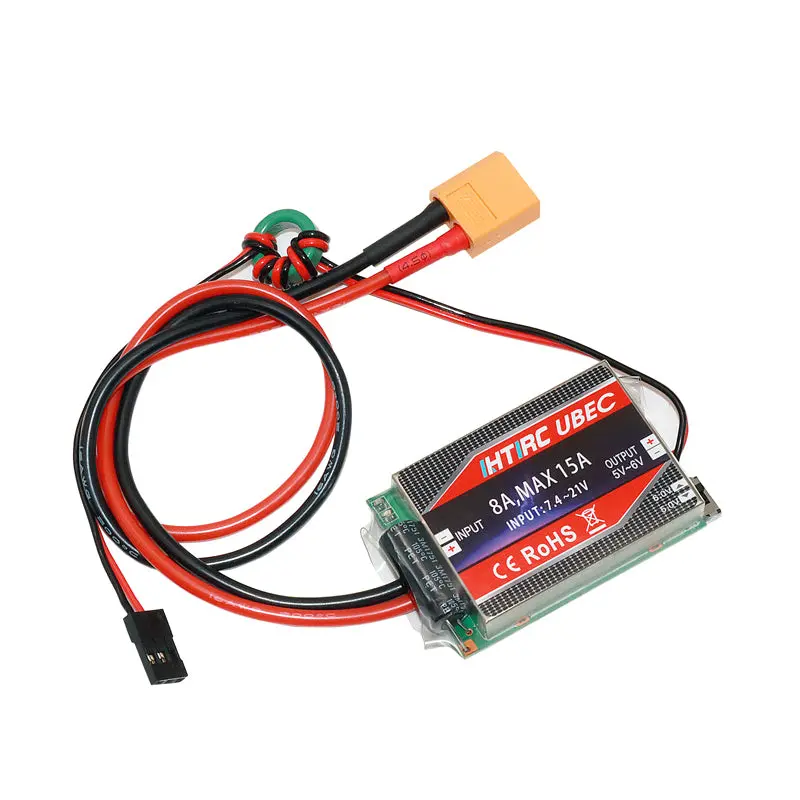

HTIRC SBEC/UBEC 8A Brushless ESC – Single Input/Output Regulator for 2S–5S FPV Drones & Planes

Description

Htirc SBEC UBEC 8A SISO Brushless ESC Single Input Single Output 2S 3S 4S 5S for RC Racing Drone Airplane Aircraft    FEATURES Ultra low stand-by power consumption Power indicator   SPECIFICATION Model : SBEC 8A DISO Continue current : 8A Instantaneous current : 15A Type : SBEC Output : 5.0V/6.0V/8A Support LiPo: 2S-5S Support NC : 5-15NC Size : 53*37*12.5 Weight : 33g      Operation 1. Must connect with external UBEC when uses OPTO ESC No change is needed for brushless esc, just make the input port of UBEC connect with battery pack in parallel, and its output port connect to any free channel of the receiver. 2. Connection between ESC with built-in SBEC and UBEC Disconnect the red wire of SBEC signal cables of ESC, which is the output of built-in SBEC ,then connect the ESC with UBEC(same as OPTO)    PACKAGE INCLUDED 1 x Htirc SBEC 8A SISO ESC For RC Airplane Aircraft Drone
