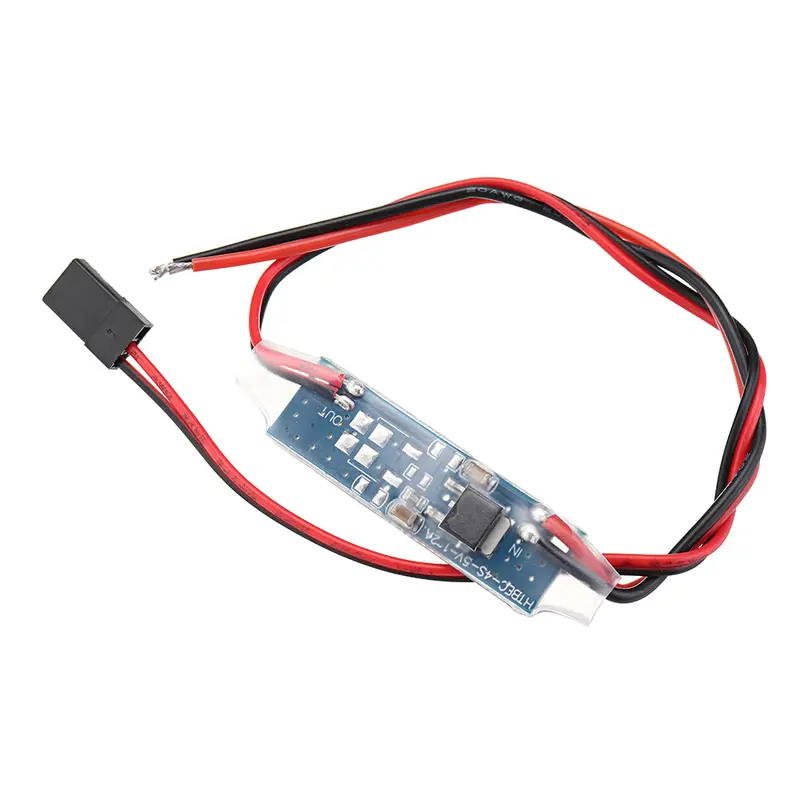

HTIRC Linear BEC ESC – 1A Output, Compatible with 2S–4S Brushless Systems for RC Aircraft

Description

Htirc Linear BEC 1A 2S 3S 4S Brushless ESC for RC Racing Drone Airplane Aircraft    FEATURES Ultra low stand-by power consumption Power indicator   SPECIFICATION Model : BEC 1A  Continue current : 1A Instantaneous current : 1A Type : Linear BEC Output : 5.0v/1a Support LiPo: 2S-4S Support NC : 5-12NC Size : 42*12.5*4 Weight : 7g      Operation 1. Must connect with external UBEC when uses OPTO ESC No change is needed for brushless esc, just make the input port of UBEC connect with battery pack in parallel, and its output port connect to any free channel of the receiver. 2. Connection between ESC with built-in SBEC and UBEC Disconnect the red wire of SBEC signal cables of ESC, which is the output of built-in SBEC ,then connect the ESC with UBEC(same as OPTO)    PACKAGE INCLUDED 1 x Htirc BEC 1A ESC For RC Airplane Aircraft Drone
