HSKRC True-X Carbon Fiber Frame Kits – XL5–XL8 Sizes (232–360mm) for 5–8 Inch FPV Freestyle & Racing Drones

Description

 Descriptions:
This freestyle frame gives you ultimate control over weight distribution and CoG by not only allowing
the use of M3x28mm standoff but also offering a reversible build orientation for a true mid-mount set up.

Specification:
Brand name: HSKRC
Item name: XL5/6/7/8/9 Frame kit

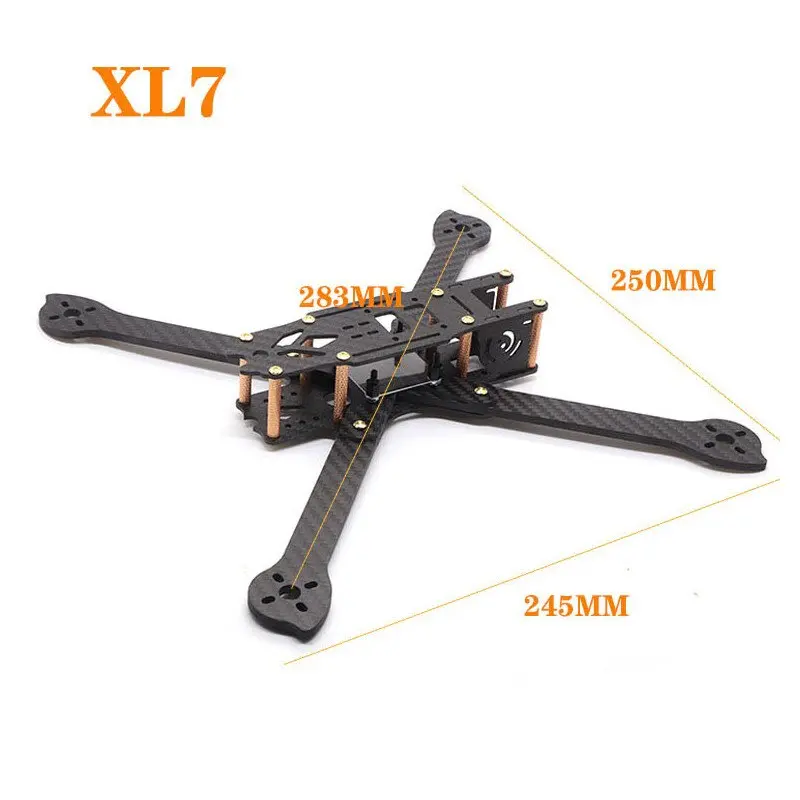

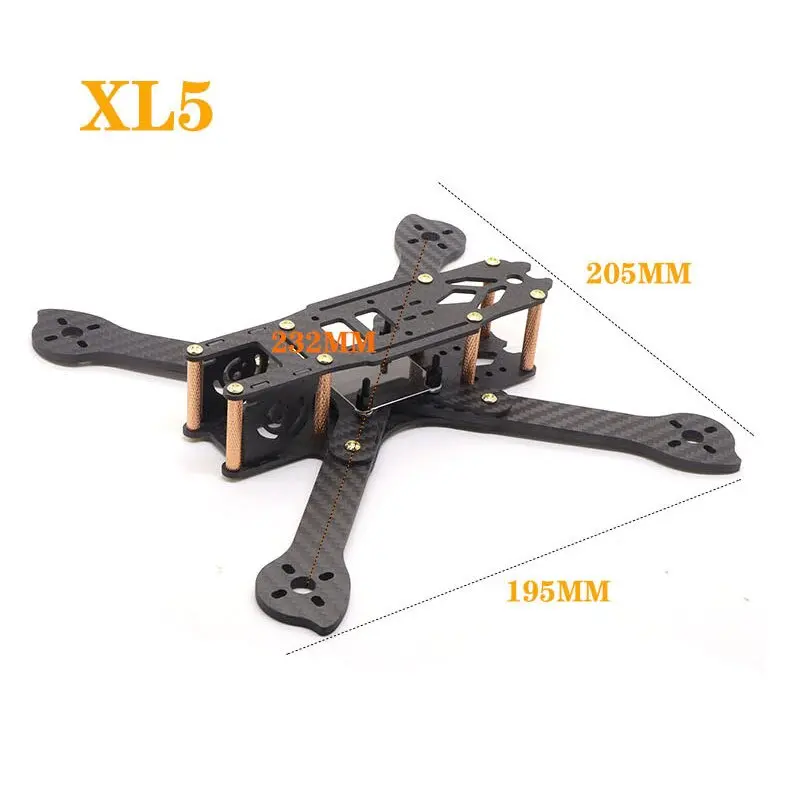

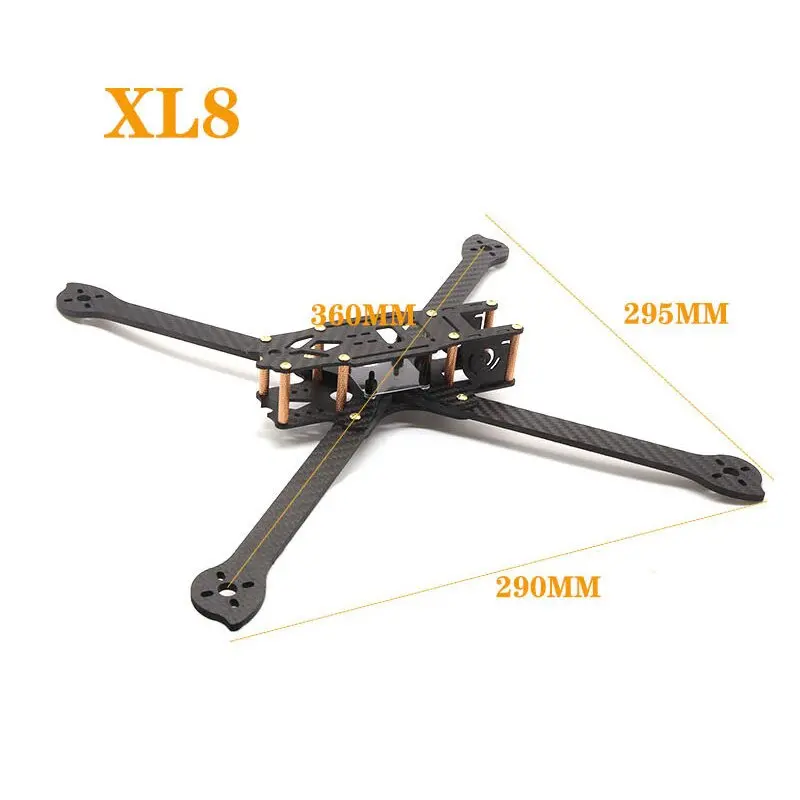

Wheelbase: 232/283/294/360/390mm
Meterial: Carbon Fiber + Aluminum column
Arm board: 4mm
Center board: 2mm
Camera install distance: 22mm
Frame Space: 23mm (Support 2 board flytower)

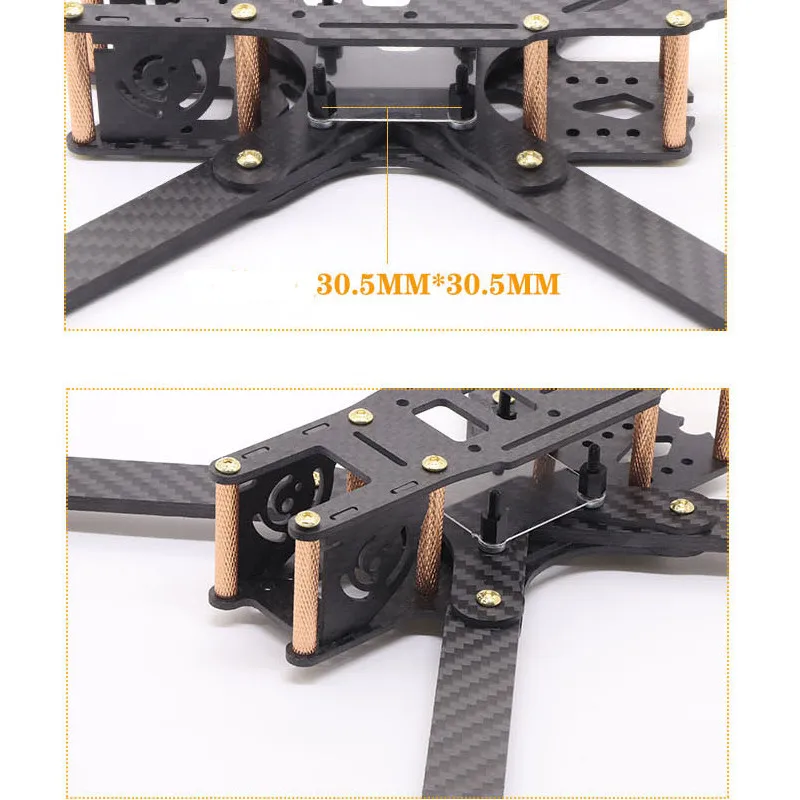

Flight Controller: F3/F4 30.5×30.5mm install hole

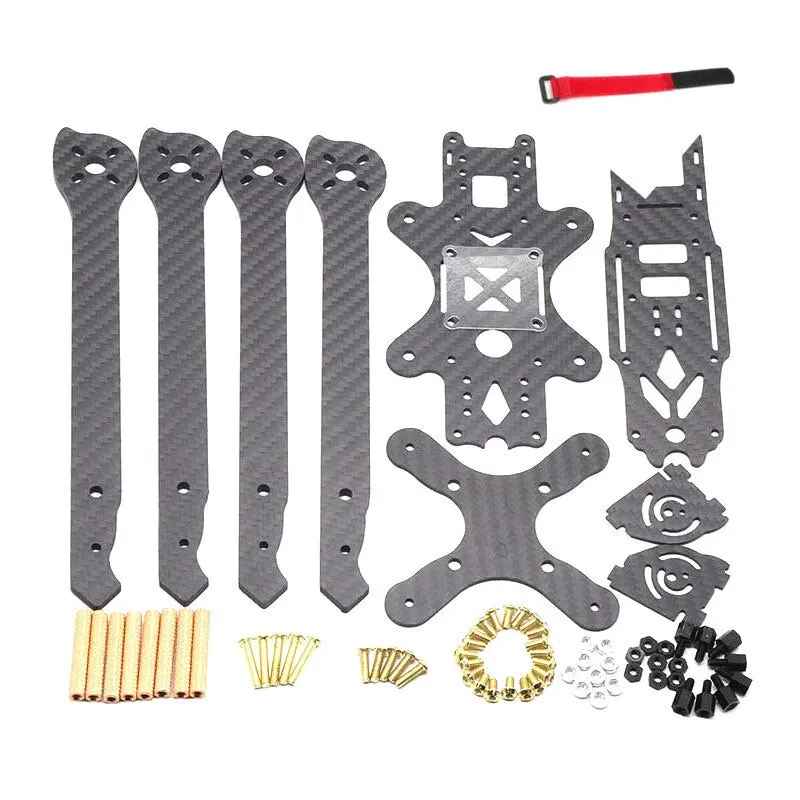

Package Included:
4 x Frame Arm
1 x 2mm Center board
8 x Aluminum column 30mm
5 x M3*6 screws
5 x M3*10 screws
20 x M3*6 screws
8 x M3*6+6 Nylon column
1 x Flight Controller insulation Plate

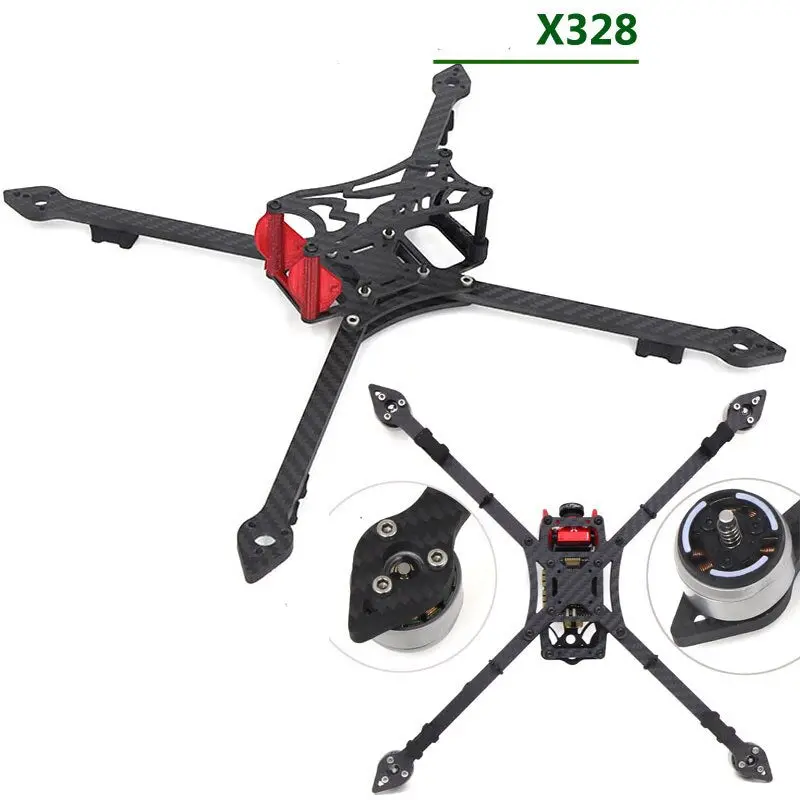

Item name: X328 8 Inch Frame Kit
Wheelbase: 328mm
Bottom plate: 3mm
Arm thickness: 5mm
Arm width: 10mm
Center plate: 2mm
Bottom center plate: 2mm
Frame space height: 35mm
FC/ESC mounting hole: 20×20/30.5×30.5mm
Camera fixed hole: 19/21/28mm (all suitable)
Weight: 105g
