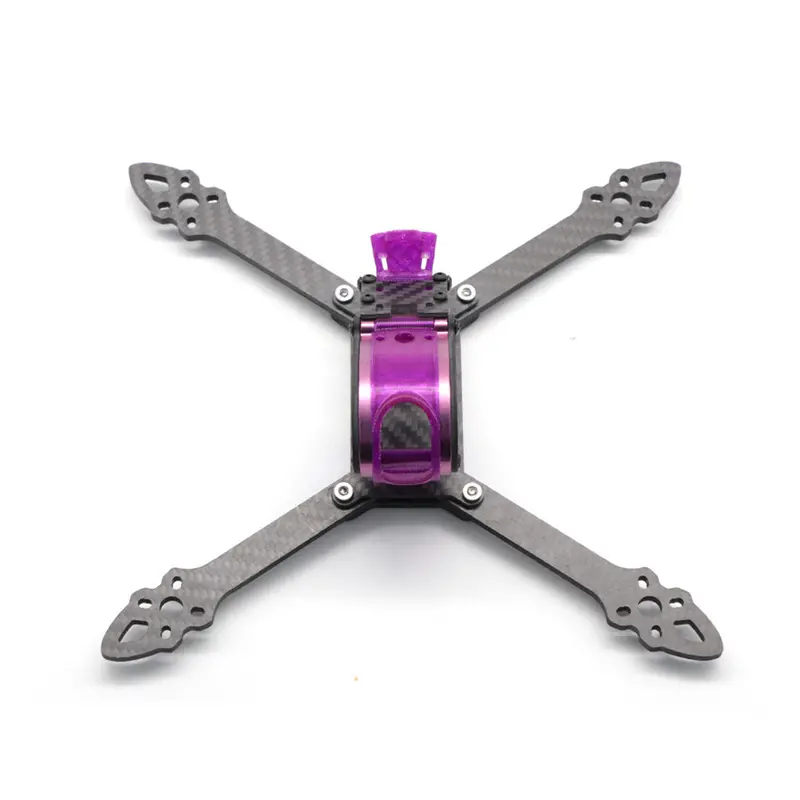

HSKRC Frog X220 Carbon Fiber Frame Kit – 220mm, 4mm-Thick 5-Inch Build for FPV Racing Drones

Description

Specification:
Brand Name: HSKRC
Model: Frog X220
Item Name: 220mm Wheelbase 5 Inch Racing Frame Kit
Wheelbase: 220mm
Material: Full Carbon Fiber + Aluminum Alloy + 3D Printing TPU Parts
Color: Black/ Red/ Purple/ Blue ( Optional)
Arm Plate Thickness: 4mm
Arm Plate Width: 12mm
Bottom Plate Thickness: 4mm
Side Plate Thickness: 2mm
Center Plate Thickness: 2mm
Other Plate Thickness: 1.5mm
Inner Frame Height: 35mm
Camera Mounting Width: 28mm
Weight: 110g
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4 Flight Controller ( M3)
Brushless Motor: 2204/2205/2207/2305/2306 Motor
Brushless ESC: 30.5×30.5mm 20A-50A 4in1 ESC
Propeller: 5 Inch Propeller
FPV Camera: 28mm Mounting Width
Lipo Battery: 3-4S 1500-2200mAh Lipo Battery
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: LDARC KK Super Flytower F4 FC w/ VTX & 40A BL_S ESC
Brushless Motor:  DYS SE2205 2300KV 3-5S Brushless Motor 2 CW & 2 CCW
Propeller: 2 Pairs HQProp DP5X4.5X3V1S Durable 5045 5 Inch 3-Blade Propeller
FPV Camera: RunCam Eagle 2 Pro Global WDR OSD Audio 800TVL CMOS Camera
Lipo Battery: AHTECH Infinity 4S 14.8V 1500mAh 85C Graphene LiPo Battery XT60
Package Included:
1x HSKRC Frog X220 220mm Frame Kit
