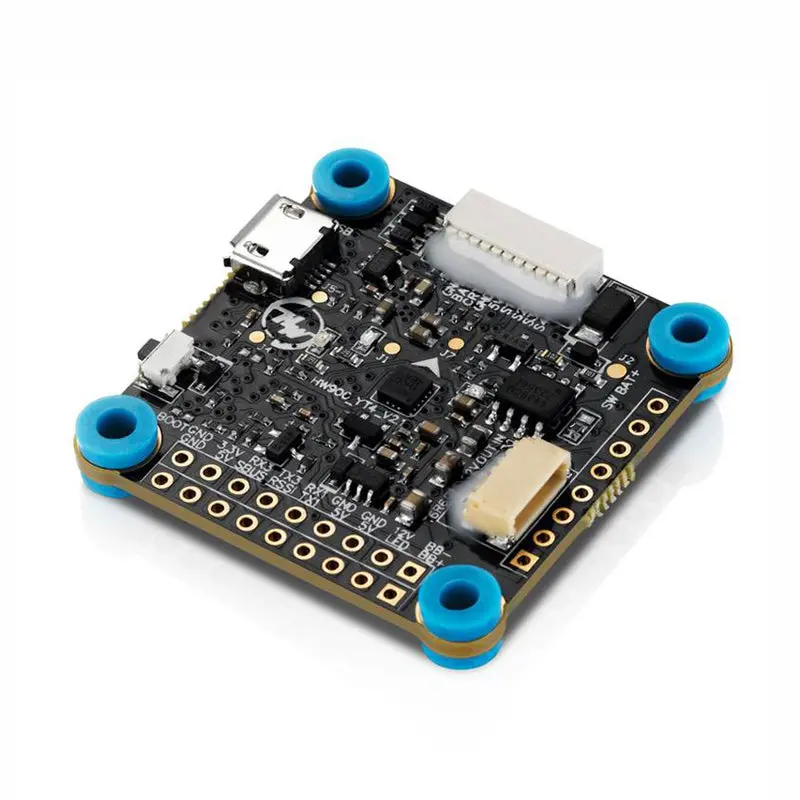

Hobbywing XRotor F405 G3 Omnibus Flight Controller – F4 FC with OSD & 12V BEC (30.5×30.5mm)

Description

Hobbywing XRotor F405 G3 Omnibus F4 Flight Controller PIT Switch w/ 12V BEC 30.5×30.5mm for RC FPV Racing Drone
Specification:
Brand name: Hobbywing
Item name: XRotor F405 G3 Flight Controller
Firmware: OMNIBUSF4SD
FC Programming: Supported
Programming via: Betaflight/Cleanflight-configutator or others
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300600/1200, Proshot1000 and etc.
Compatible with (Transmitter): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
Applications: 130-300mm FPVs
BEC: 12V @ 2A
USB Port: MicroUSB
Size: 36x36mm
Weight: 6g
User Manual, DOWNLOAD
Package Included:
1 x XRotor F405 G3 Flight Controller
