Hobbywing Skywalker ESC Series – 15A to 80A Programmable Brushless ESCs for 2S–6S RC Aircraft, Multirotors, and Fixed-Wing Platforms

Description

Features:

1. Special core program for multi-rotor controllers meets various functional requirements against multi-rotors. 2. Specially optimized software for excellent compatibility with disc-type motors. 3. The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

Specifications:

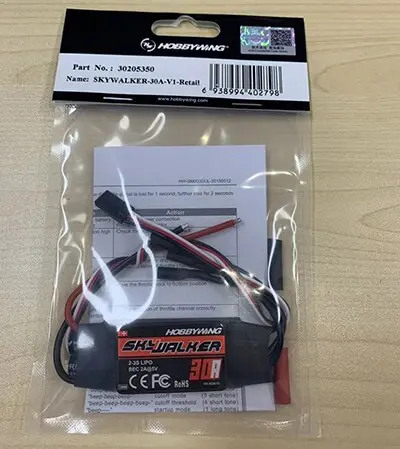

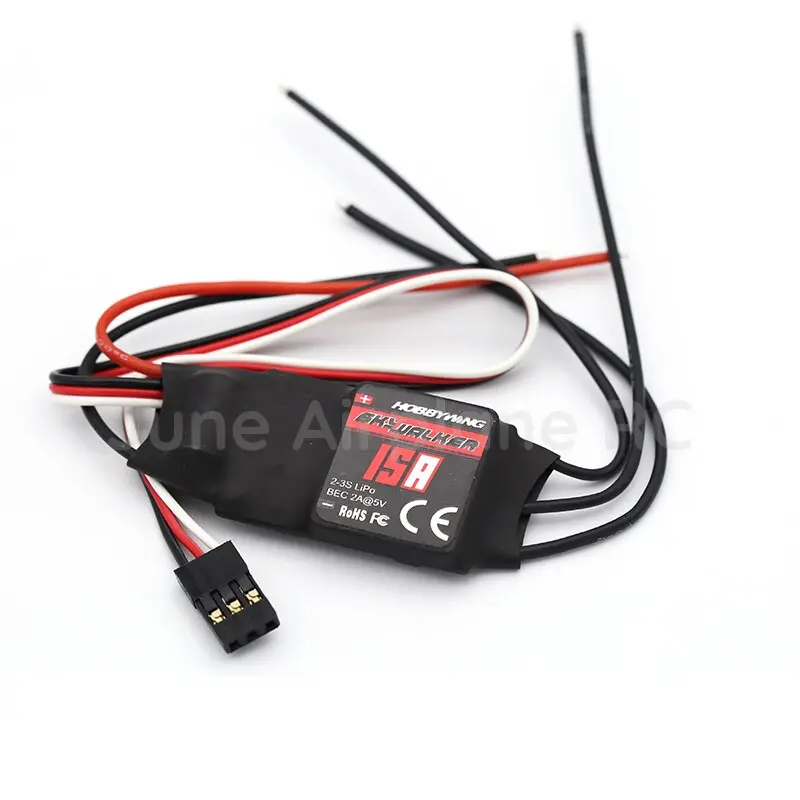

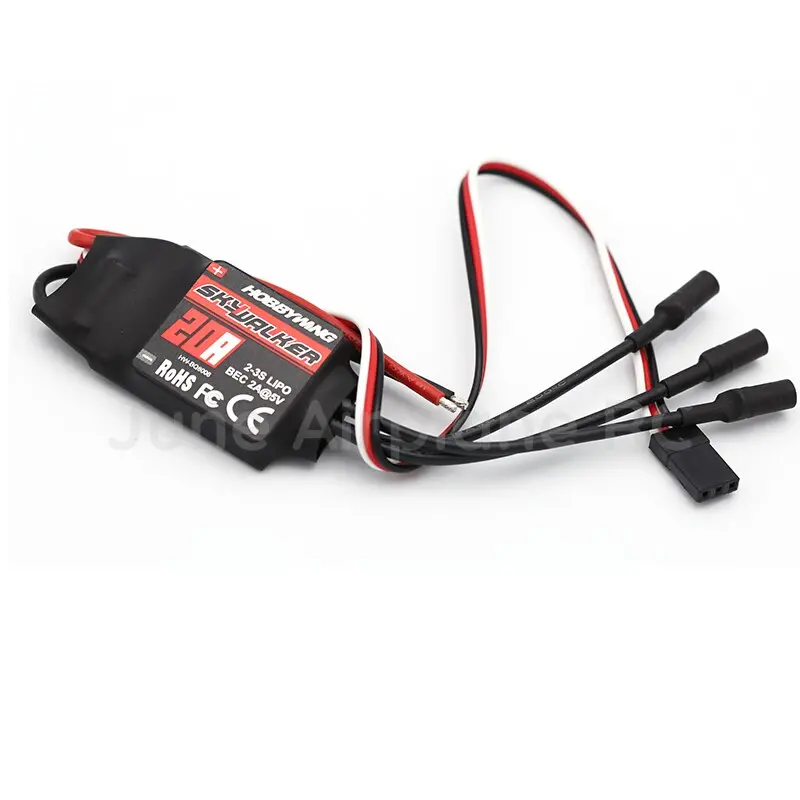

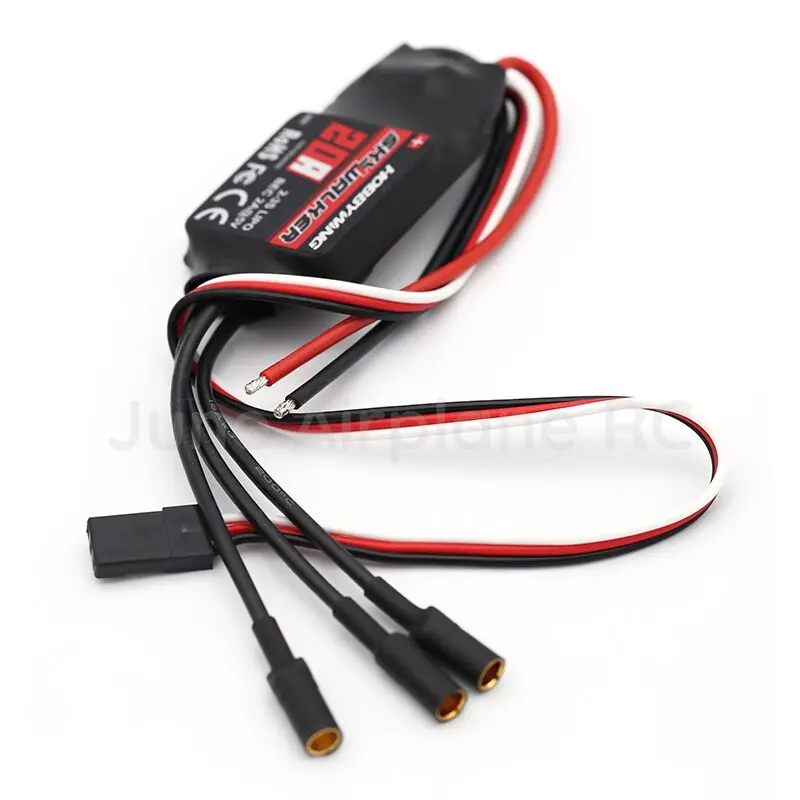

  15A Model: Skywalker-15A Continuous Current: 15A Burst Current (>10s): 20A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Weight: 16.5g Dimension (L x W x H): 48 x22.5 x 6mm   20A Model: Skywalker-20A Continuous Current: 20A Burst Current (>10s): 25A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Weight: 19g Dimension (L x W x H): 42 x25 x 8mm   ​30A: Output: Continuous 30A, Burst 40A up to 10 seconds
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2 kHz
Size: 45 x 21 x 8mm
Weight: 21g

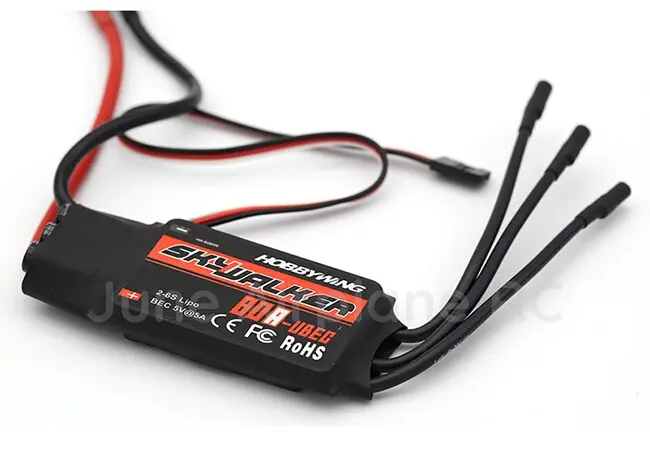

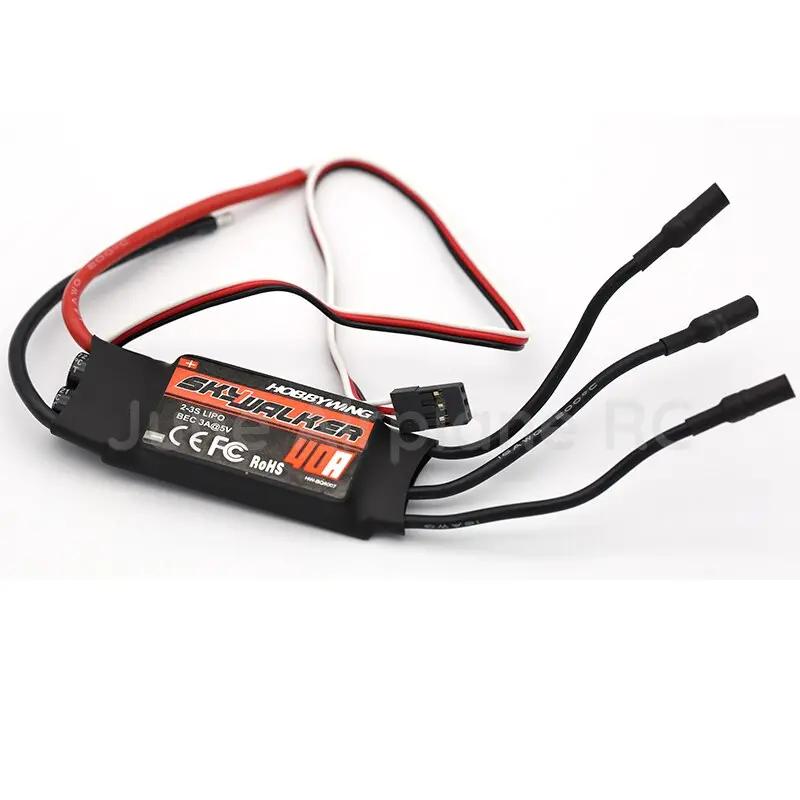

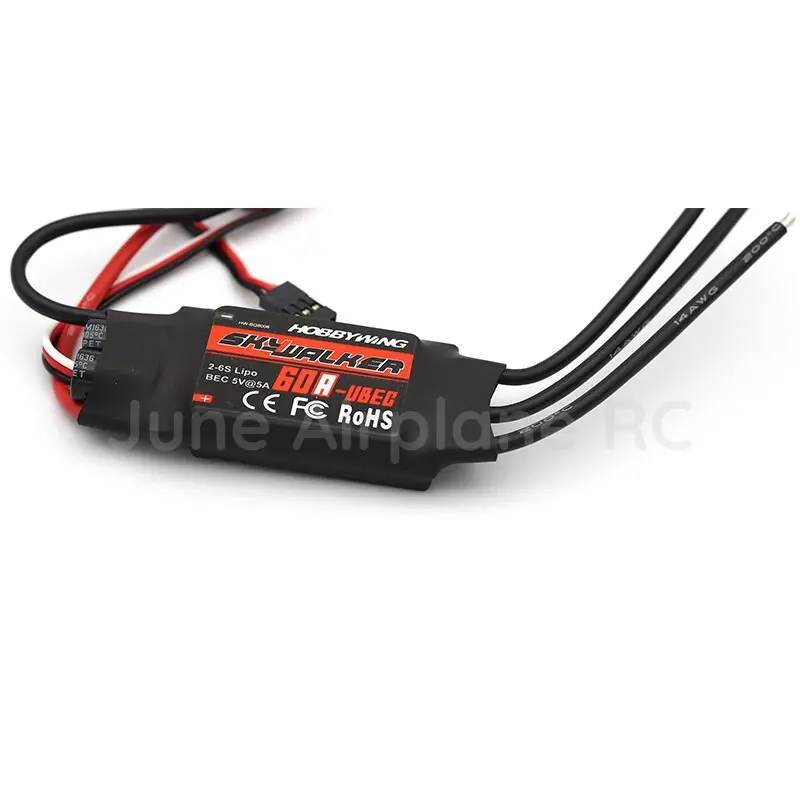

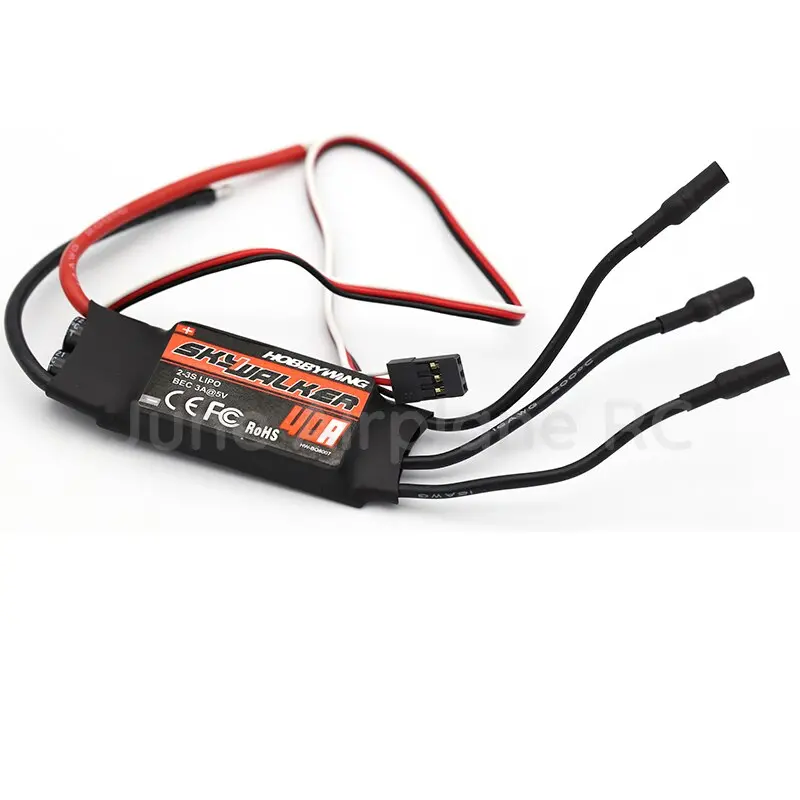

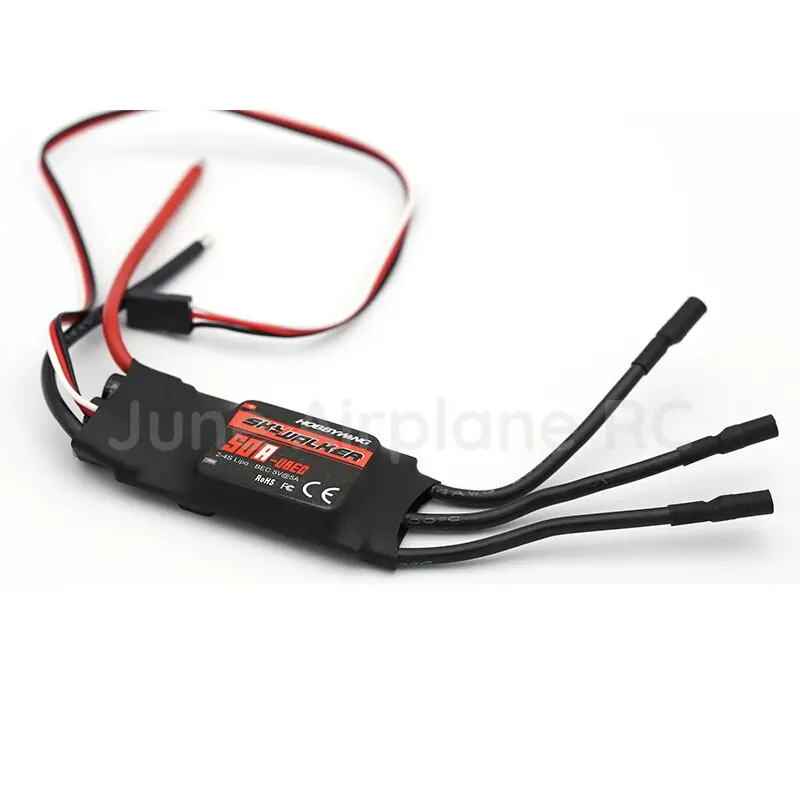

40A Model: Skywalker-40A Continuous Current: 40A Burst Current (>10s): 55A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Weight: 39g Dimension (L x W x H): 68 x25 x 8mm   50A Model: Skywalker-50A Continuous Current: 50A Burst Current (>10s): 65A BEC Mode: Switch BEC Output: 5V5A BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo)    / 6 Servos (4S Lipo) / 6 Servos (6S Lipo)    Battery Cell: 2-4S (Lipo) / 5-12 cells (NiMH) Weight: 41g Dimension (L x W x H): 65 x29 x 10mm   60A Model: Skywalker-60A Continuous Current: 80A Burst Current (>10s): 65A BEC Mode: Switch BEC Output: 5V5A BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo)   / 6 Servos (4S Lipo) / 6 Servos (6S Lipo) Battery Cell: 2-6S (Lipo) / 5-18 cells (NiMH) Weight: 63g Dimension (L x W x H): 77 x34 x 14mm   80A Model: Skywalker-80A Continuous Current: 80A Burst Current (>10s): 100A BEC Mode: Switch BEC Output: 5V5A BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo) / 6 Servos  (4S Lipo) /  6  Servos   (6S Lipo) Battery Cell: 2-6S (Lipo) / 5-18 cells (NiMH) Weight: 82g Dimension (L x W x H): 83 x38 x 12mm     Product Pictures:   Shipping:
