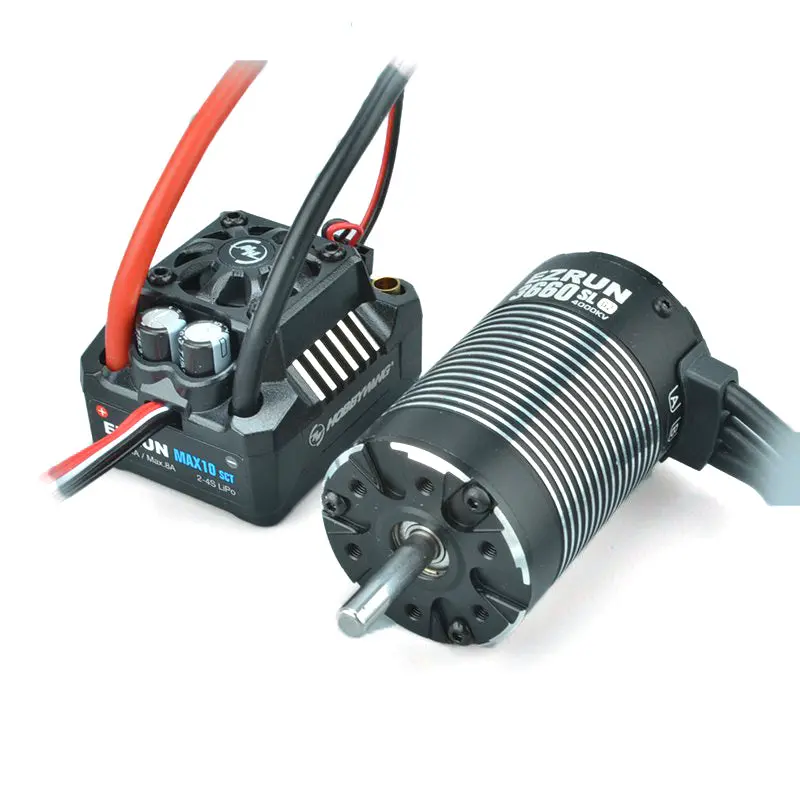

Hobbywing EZRUN MAX10-SCT Brushless ESC (120A Waterproof) + 3660 SL-G2 Motor for 1/10 SCT Trucks

Description

Description:
Brand:Hobbywing
Name:MAX10-SCT 120A Waterproof Brushless ESC +3660 SL G2 Motor
Fit for
1/10 short course,big foot rc car truck(4WD)
ESC Specification: Scale:1/10th
Size:49*39.5*34.7mm Brushless & Sensorless& Waterproof Continuous current:120A Instantaneous current:830A Input:2-4S LiPo/6-12 Cells NiMH BEC Output: Switch Mode:6V/7.4V /4A Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1 Output Wires: Black-12AWG-200mm*3 Output Connectors: 4.0 Bullet Connectors (Female) (Note: All the wire length above is the original length not the length you see from the outside.) Fan Size: 25.0×25.0x10.0mm Fan Voltage Range: 5-7.4V Fan Powered by: Powered by BEC Firmware Upgrade: Supported Applications Motors: SL BL Motors/SD BL Motors(only in SL mode); Applications Vehicles: 1/10th SCTs / Truck / Monster Truck; Applicable motor KV rating / T count:2S LiPo: KV≤6000; 3S LiPo: KV≤4000; 4S LiPo: KV≤3000 (36XX series motor) ESC Programing Supported: SET Button on ESC, LED Program Box, LCD Program Box, WiFi Module

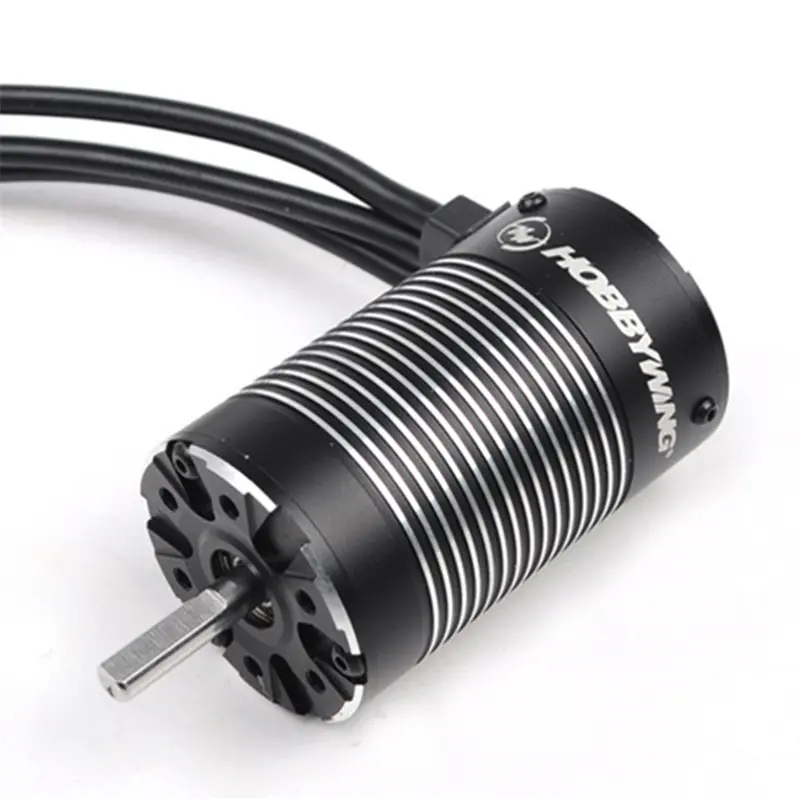

Motor Specification:
Name:EZRUN-3660SL-3200KV-G2/EZRUN-3660SL-4000KV-G2/EZRUN-3660SL-4600KV-G2
Scale:1/10
Brushlesss & Sensorless
Number of poles:4
Support lithium battery:3200/400KV:2-3S; 4600KV:2S
No-load current:3200KV:4.9A;4000kV:5.7A;4600KV:7.2A
Size:3200KV/4600KV:outside diameter:36mm(0.417in);Length 60mm(2.36in);Shaft diameter:5mm(0.196in),weight:262g(9.24oz)
4000KV:outside diameter:36mm(0.417in);Length 60mm(2.36in);Shaft diameter:5mm(0.196in),weight:about 268g((9.453oz)
Package included:
1X 120A Brushless ESC
1X 3660 SL G2 Motor
