Hobbywing 5A Ultra-Low-Noise UBEC (5V/6V) with Full RF Shielding for RC Receivers and Sensitive Electronics

Description

1. Hot  5V / 6V HOBBYWING RC UBEC 3A Max 5A Lowest RF Noise BEC Full Shielding Antijamming Switching Regulator New Sale

Features
Brand new and high quality
Designed with an advanced switch mode DC-DC regulator IC
The output is powerful even working with 4 to 6 cells Lipo battery
Battery polarity reversal protection

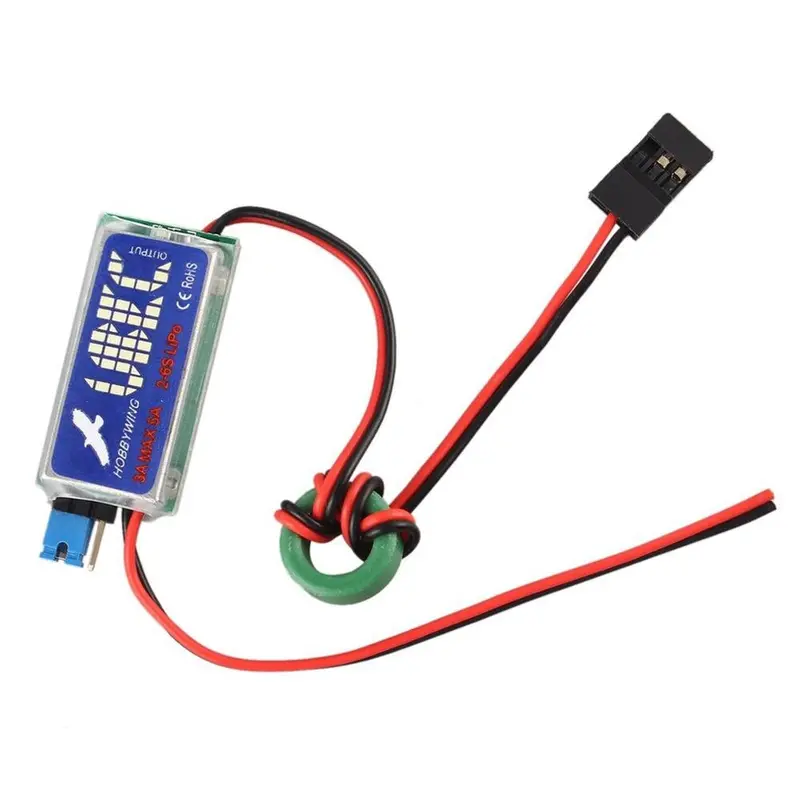

A metal shield covers almost all the electronic components, and a specially made filter is
attached with the output wires to significantly reduce the electromagnetic interference
The working status is shown by an indicator (LED), lights when the output is in normal range
Item: 3A-UBEC
Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )
Continuous output current: 3 Amps
Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMh /NiCd battery)
Size: 42mm (L) * 24mm (W) * 11mm (H)
Advantages
The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-6 cells lithium battery pack (or 5-18 cells NiMh /NiCd battery ) and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter.
Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is higher.
