Description

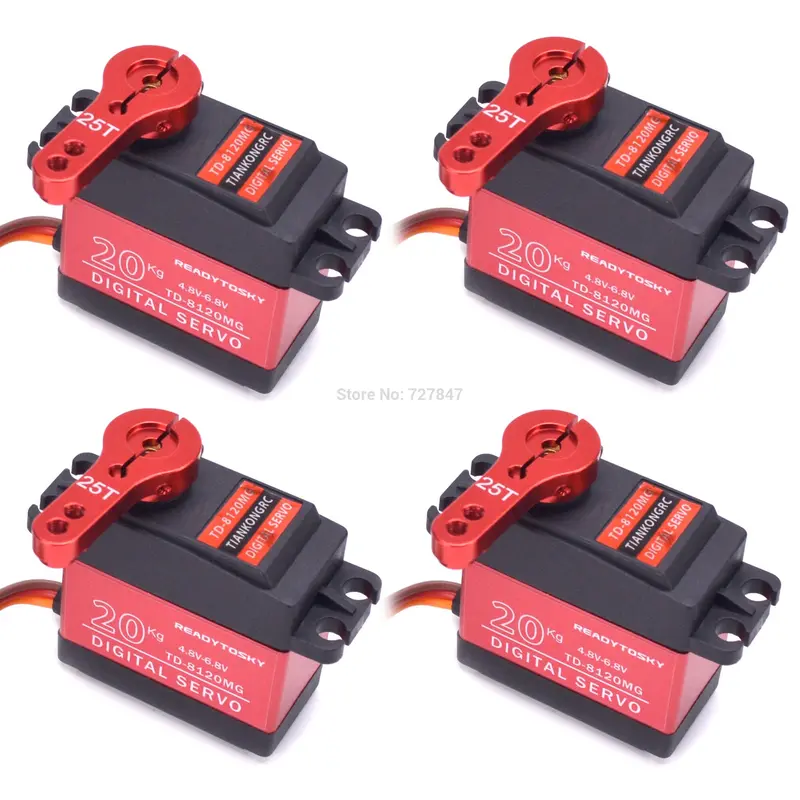

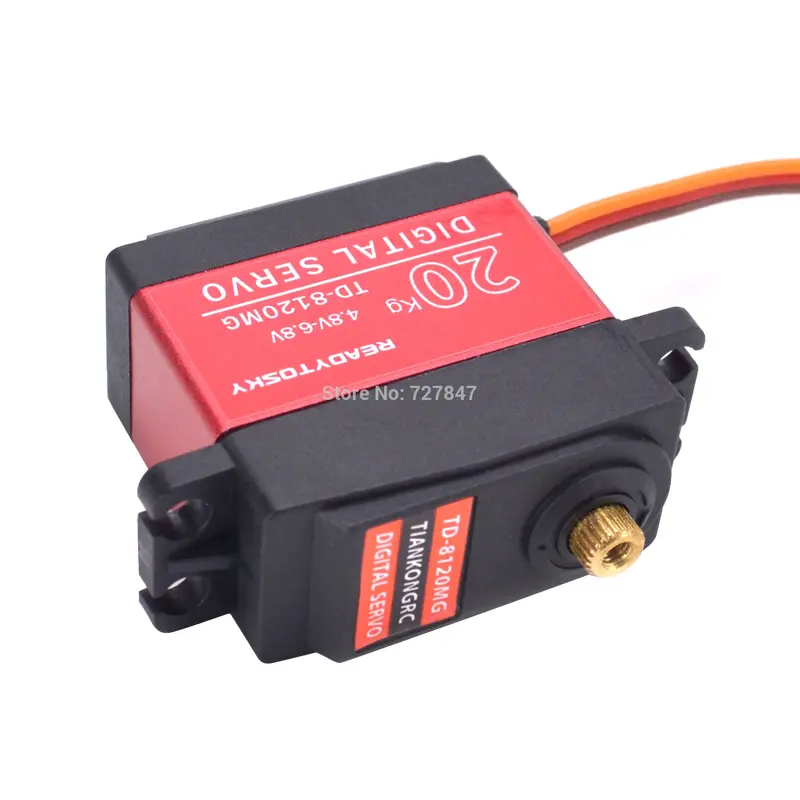

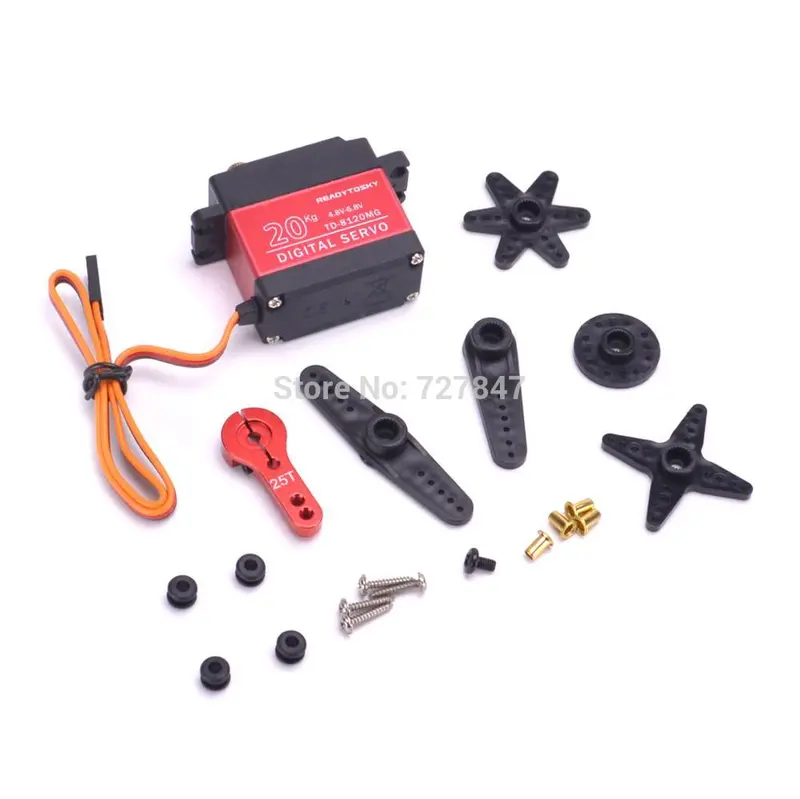

20KG Servo:

– High-precision metal gears with hard anodizing  – CNC aluminium middle Shell,    Control system :PWM control （1500 u-sec is the central point） Working voltage:4.8V ~ 6V Working temperature: -20C°~ +60C° Torque :4.8V /17.2kg.cm 6.0V /20.3kg.cm  Idle speed :4.8V/0.15sec / 60 deg                      6.0V/0.13sec / 60 deg ​Steering angle: 0-180 degree ; Idle current:4.8V/470mA 6.0V /650mA  Load current :4.8V/750mA 6.0V /950mA  Dead band :2usec  Lifetime:>15000 times without load Moving angle:60°±10° Drive type: MOS drive  Motor type:Cored motor Potentiometer type:Direct drive Signal booster type:Digital  Size:40.5X20.2X40.3mm Weight : 62g (without accessories) Ball Bearing:2BB Gear material:Metal gear Case material: PA66+fiber40% Wire length:260mm  Wire gauge No and plug type:26AWG，JR plug  Brown wire:Negative   Red wire:Positive  Orange wire:Singal  Application:RC car, RC airplane, Helicopter

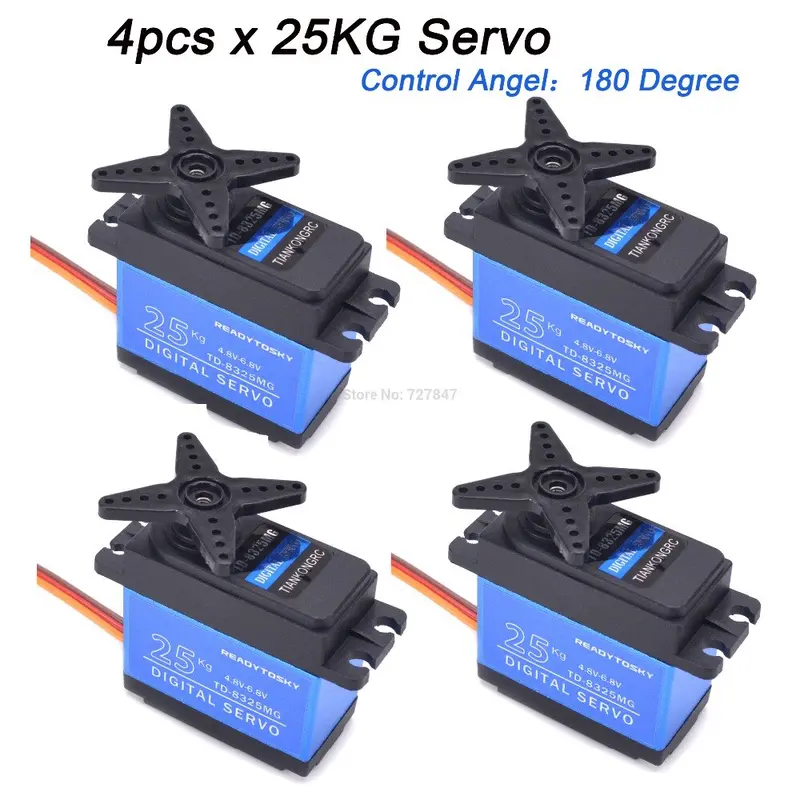

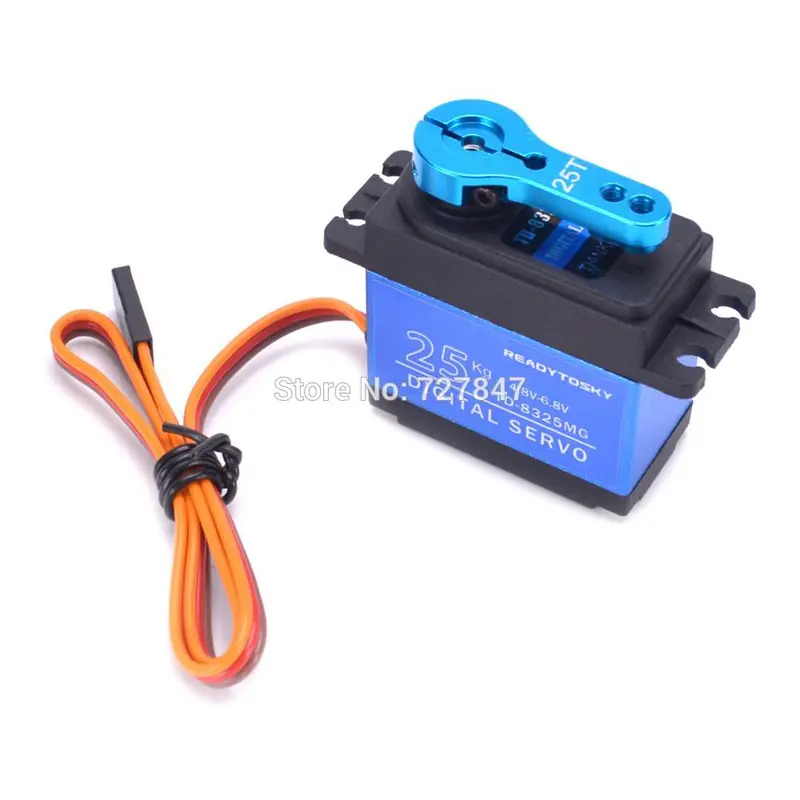

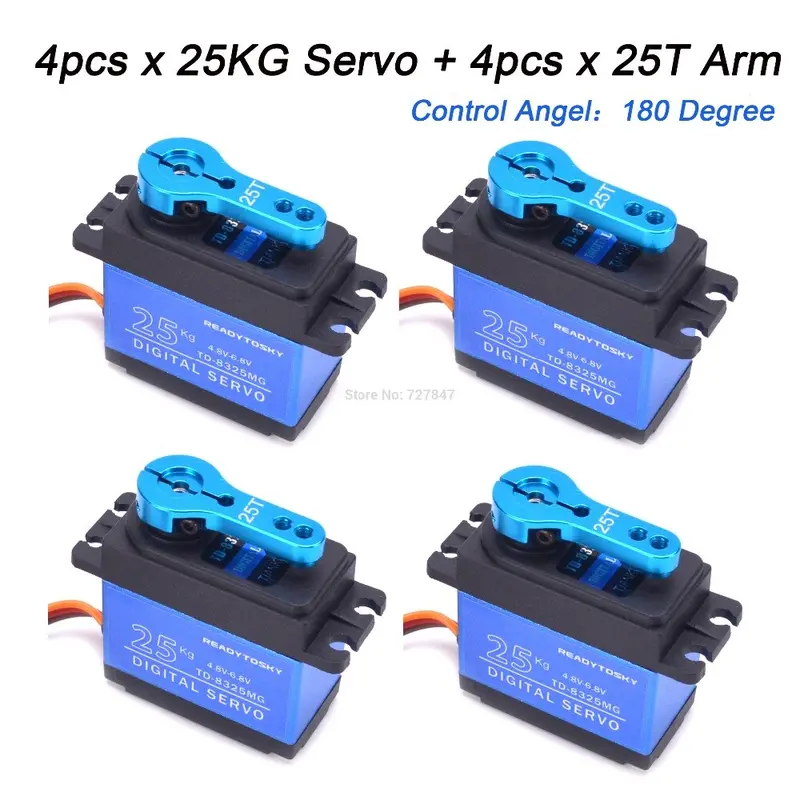

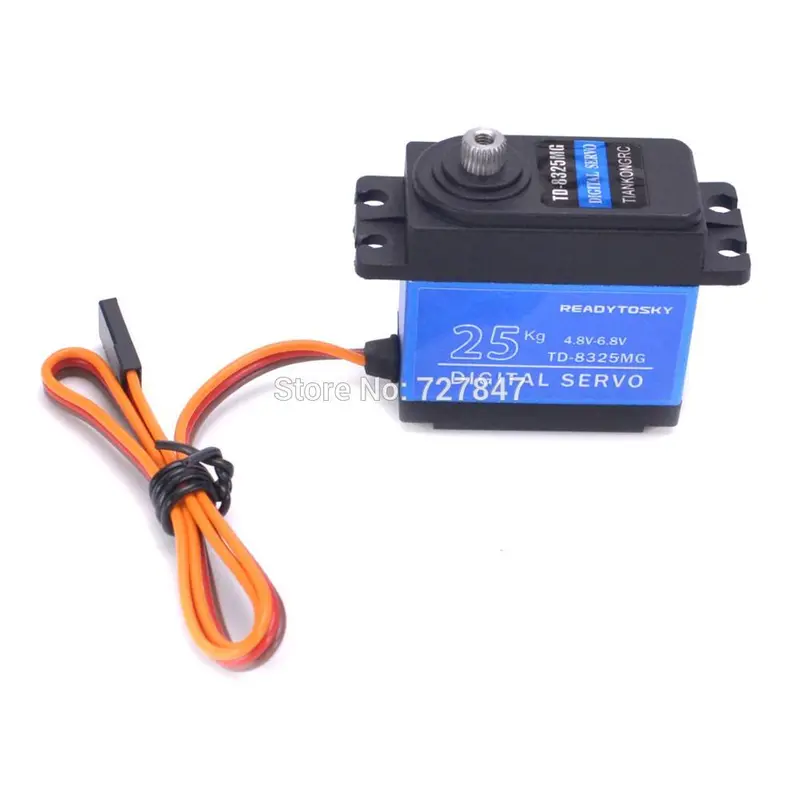

25KG Servo:

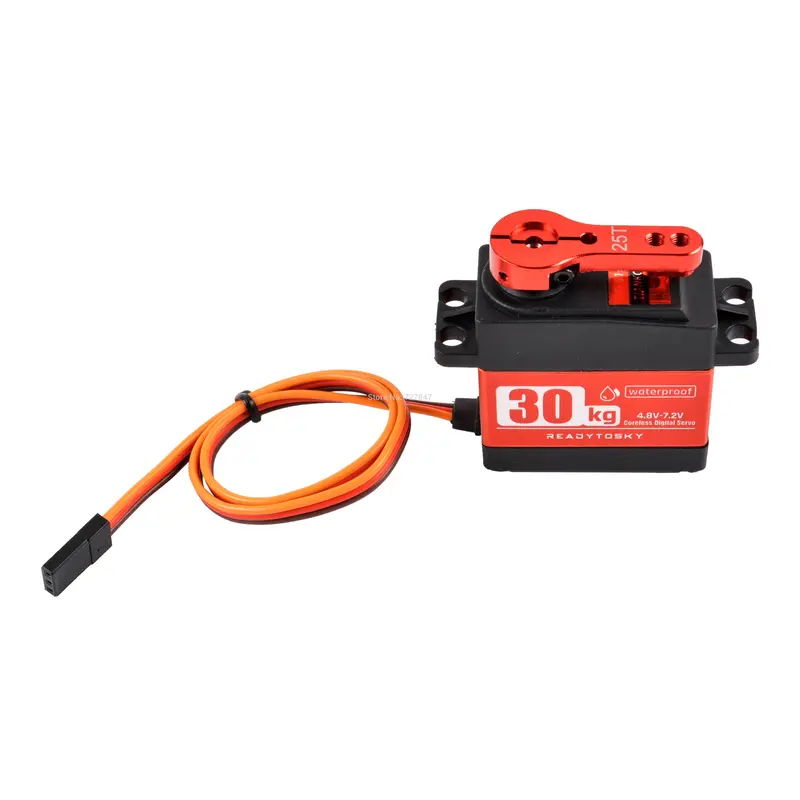

  30KG Servo:

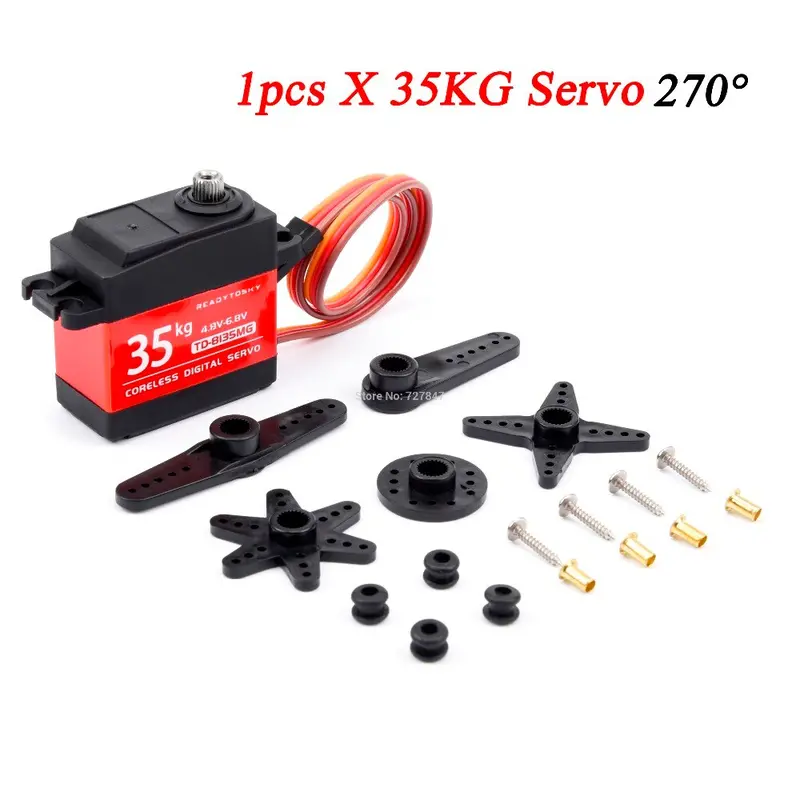

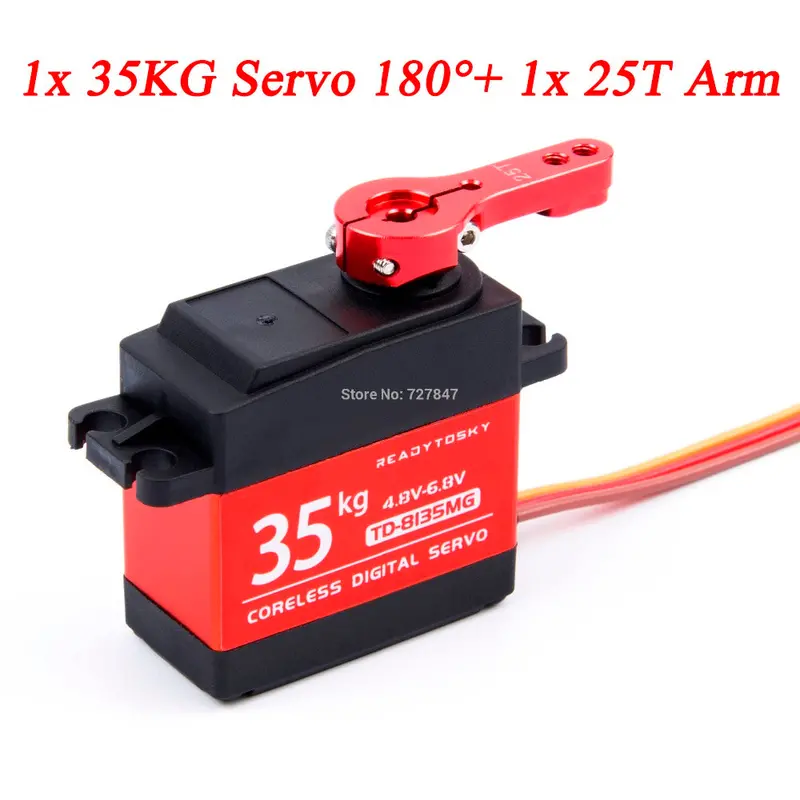

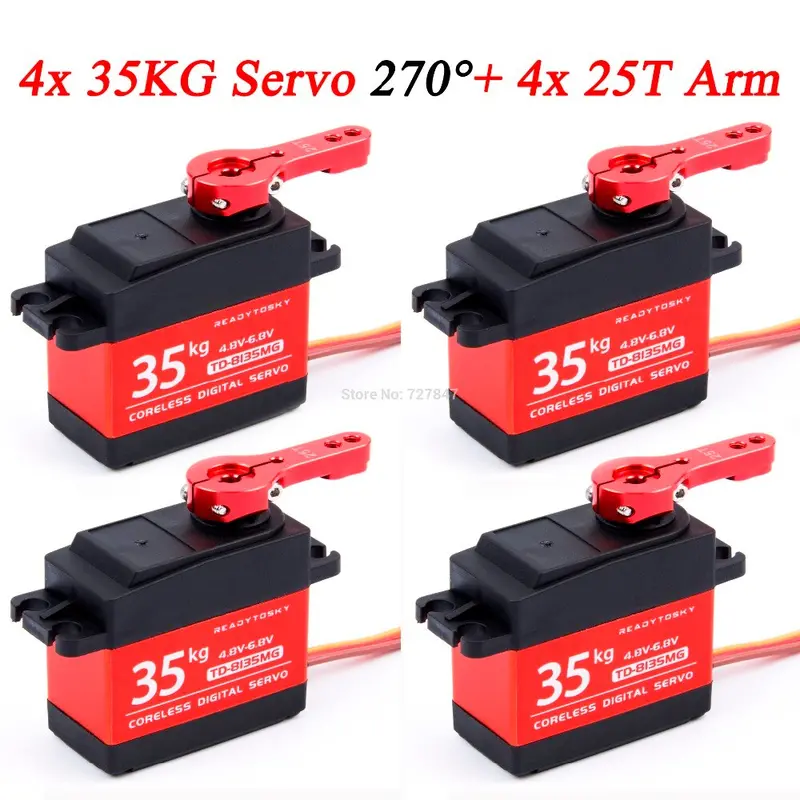

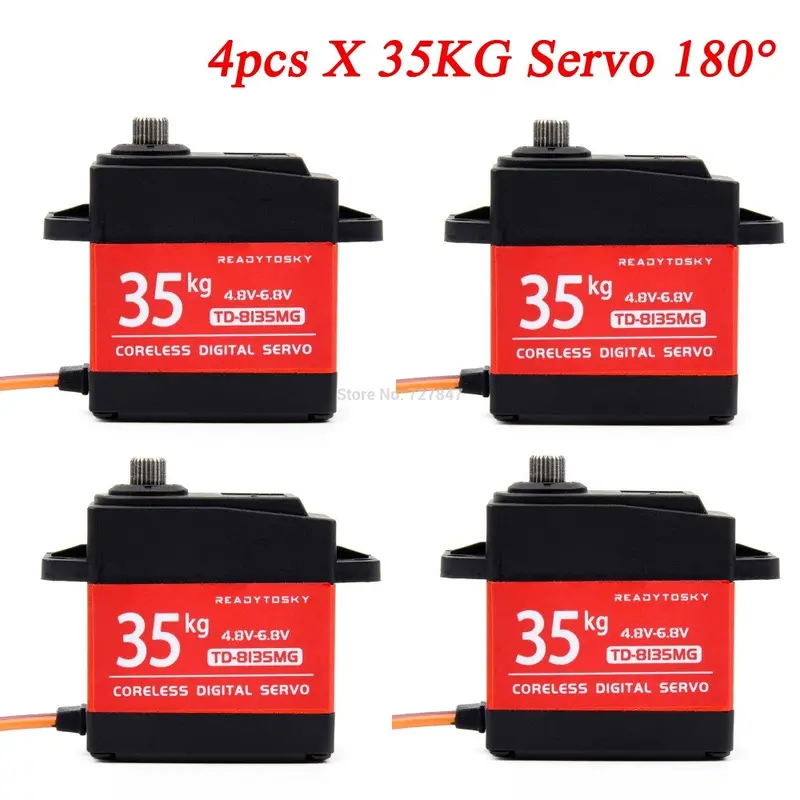

35KG Servo 180/ 270 Degree Products Specifcation:

1.Apply Environmental Conditon
No.	Item	Specifcation
1.1	Storage Temperature Range	–30°C~80°C
1.2	Operating Temperature Range	-25°C~70°C
2. Standard Test Environment
No.	Item	Specifcation
2.1	Temperature Range	–25°C~70°C.
2.2	Humidity Range	65%土10%
3.Mechanical Specification
No.	Item	Specifcation
3.1	Size	40.0*20.5*40.5nn
3.2	Weight	56g士5%
3.3	Gear type	5Metal.
3.4	Limit angle	360°
3.5	Bearing	2BB
3.6	Horn gear spline	25T Diameter:5.9mn
3.7	Horn type	lPlastic,POI
3.8	Case	Engineering plastics(PBT)+Aluminum alloy
3.9	Connectorwire	320mm土5mm
3.1	Motor	Carbon brush motor
3.11	Splash water resistance
4.Electrical Specification
	Operat voltage	4.8V	7.2V
	Idle current		nA
4.2	Noload speed	0.32sec/60°	0.22sec/60°
4.3	Runnig current	140mA	200mA
4.4	Peakstalltorque	32.7kg.cn	35.2kg.cn
4.5	Stall current	2600mA士10%	3400mA土10%
4.6.	Working voltage range	4.8-7.2V
5.Control Specification
	Item	Specifcation
5.1	Command signal	Pulse width modification
5.2	Amplifier type	Digital controller
5.3	Pulse width range	500~2500usec
5.4	Neutralposition	1500usec
5.5	Running degree	180°土3°(when500~2500usec)
5.6	Dead band width	5usec
5.7	Rotatingdirection	Counter clockwise(when1000~2000usec)

          Note:The direction the servo rotates all depends on the signal the servo is receiving



( send as your choice)

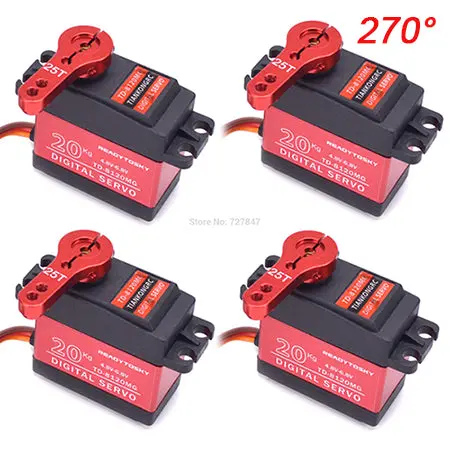

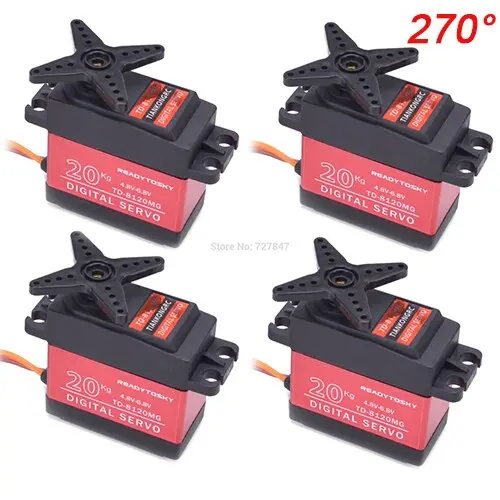

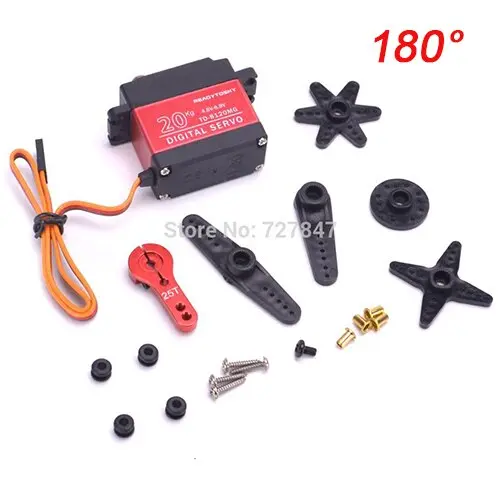

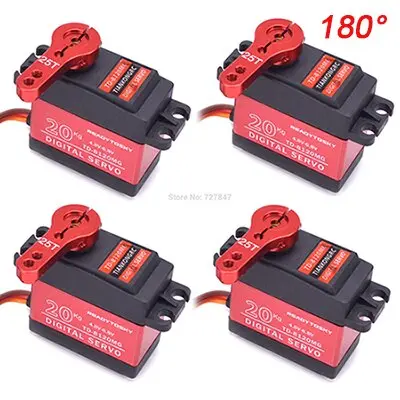

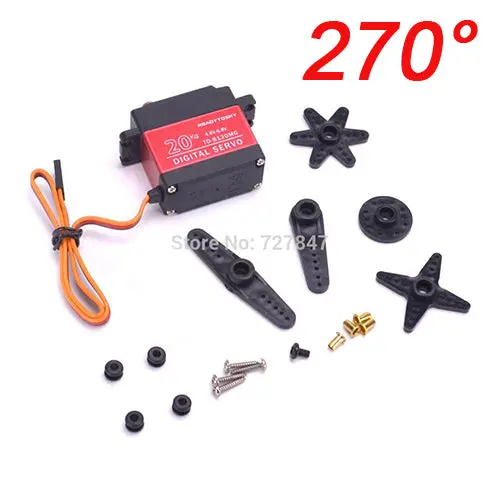

20KG 180 / 270 Degree Servo:

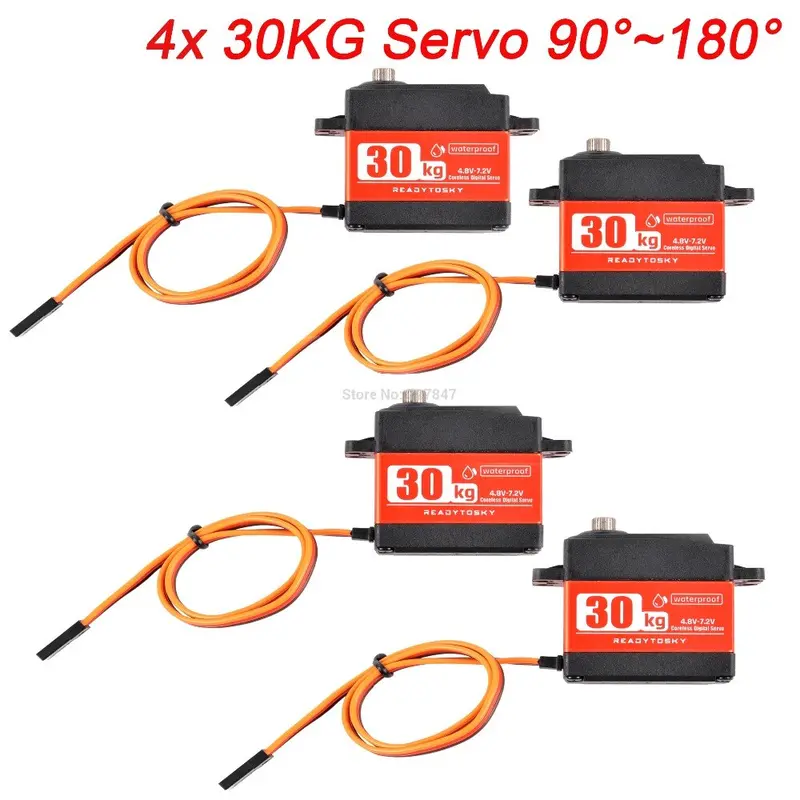

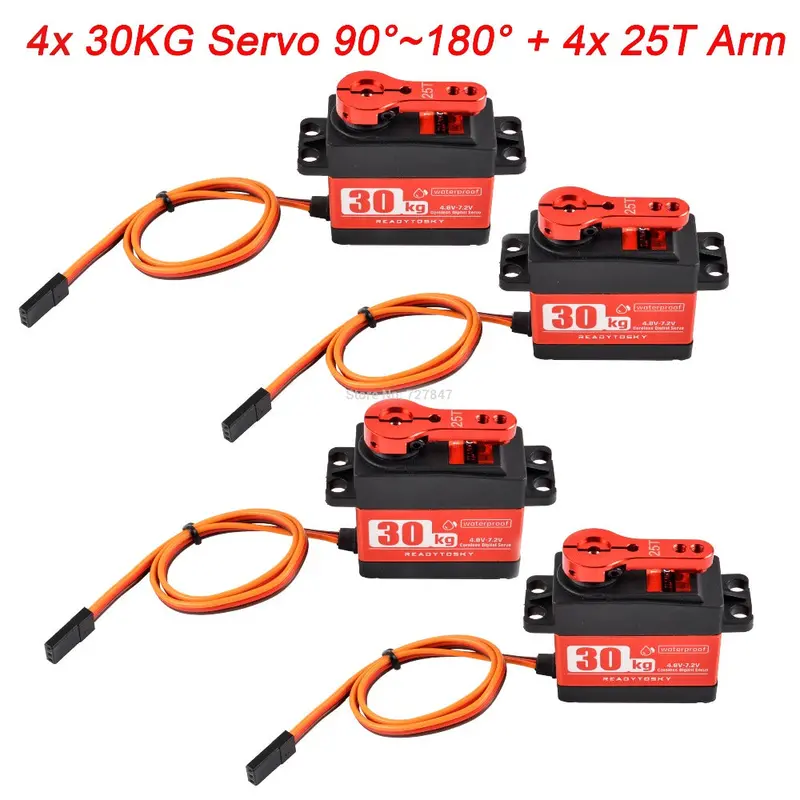

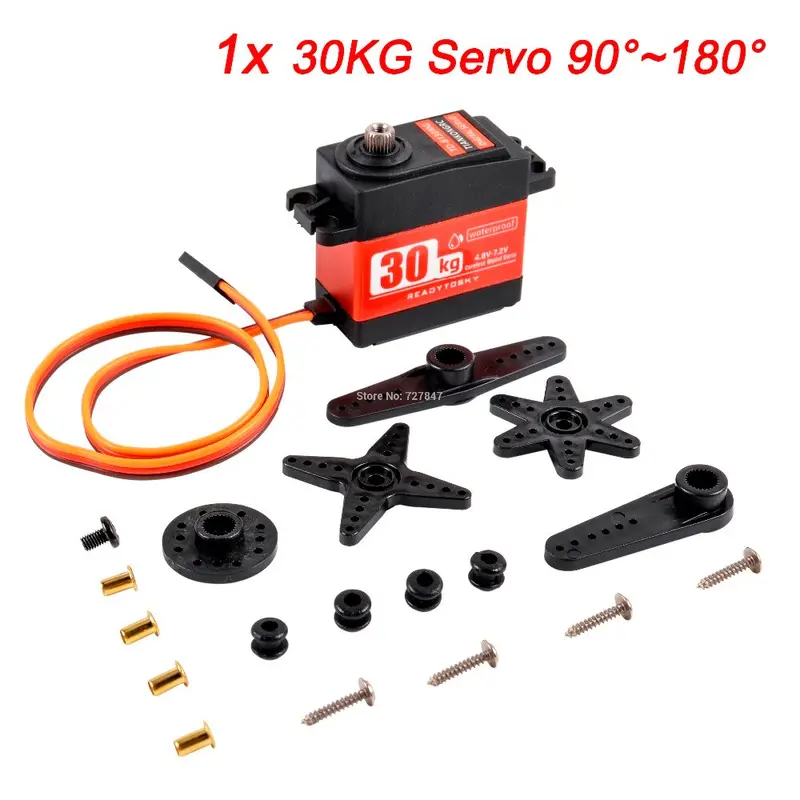

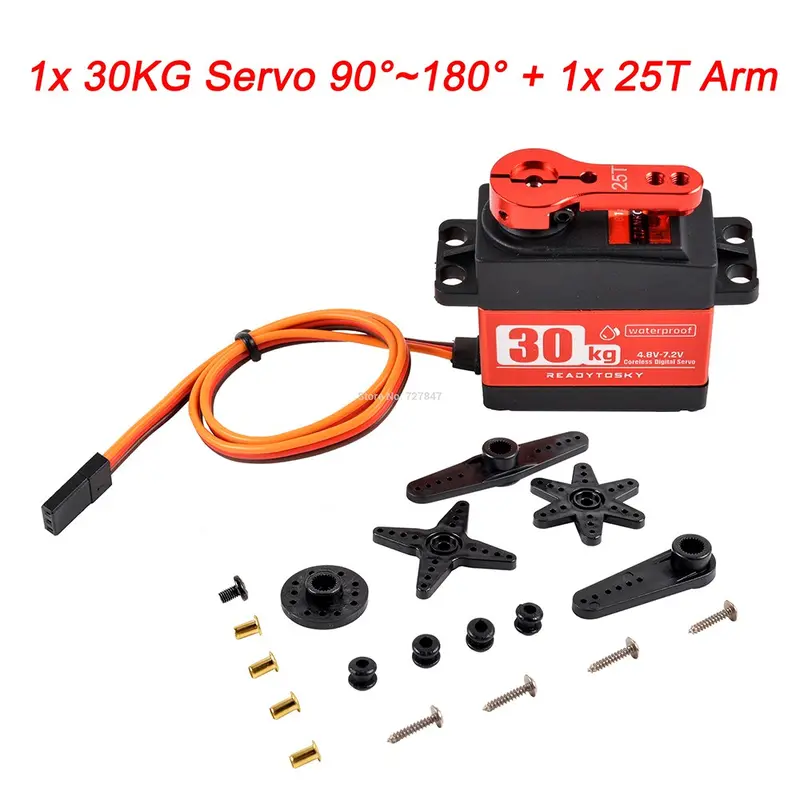

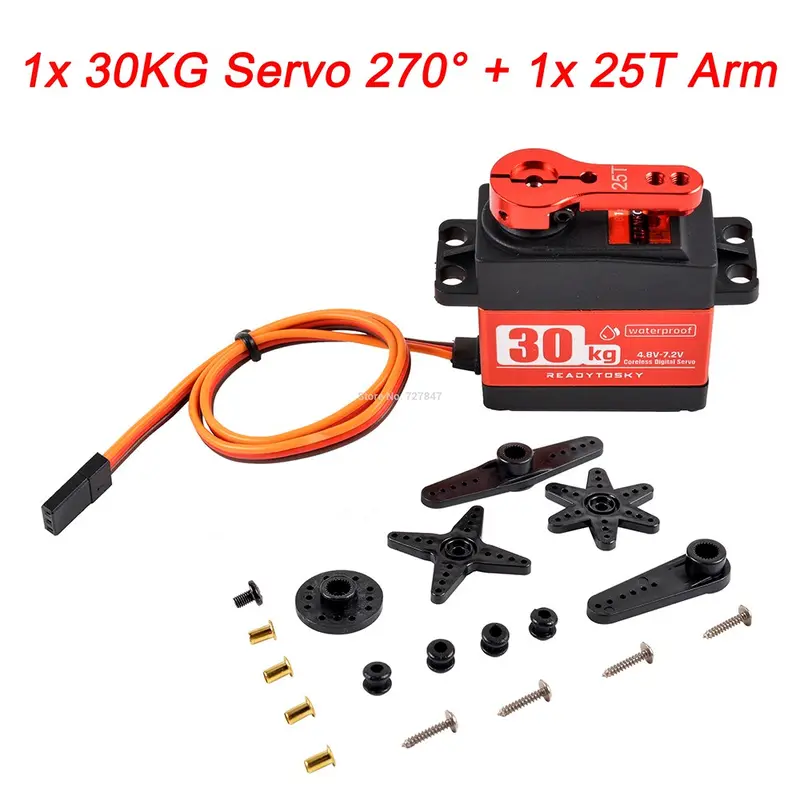

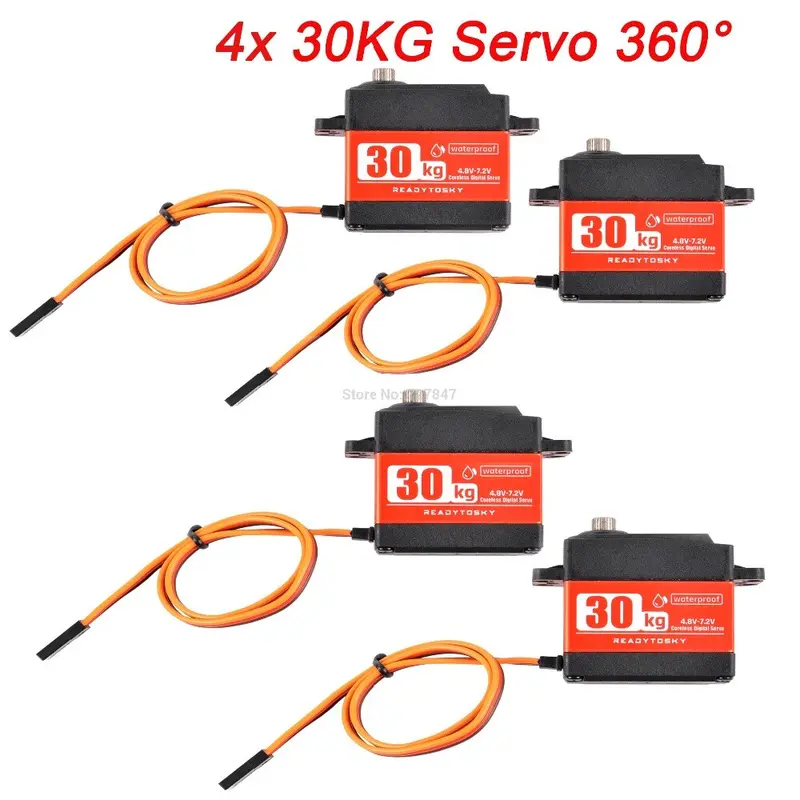

        30KG 90~180/ 270 / 360 Degree Servo:
