High-Torque Coreless Digital Servo (35kg/cm or 25kg/cm) – Waterproof DS3235/DS3225 Model for Robotics and RC Vehicles

Name: High-Torque Coreless Digital Servo (35kg/cm or 25kg/cm) – Waterproof DS3235/DS3225 Model for Robotics and RC Vehicles
Brand: Drone Spark
SKU: 106553
Availability: InStock

Price range: $79.00 through $94.33

Color

Clear

Quantity

SKU: N/A Category: 200001407 Brand: Drone Spark

Description

Advantage of coreless motor servo:

High reliability、good stability、strong adaptability,

Low noise、small vibration、smooth operation、long life

product description

No.	工作电压Operating Voltage	5V	6V	7.4V
1	待机电流 Idle current(at stopped)	5mA	5mA	5mA
2	空载转速Operating speed (at no load)	0.13 sec/60°	0.12 sec/60°	0.11sec/60°
3	堵转扭矩Stall torque (at locked)	29 kg-cm	32 kg-cm	35 kg-cm
4	堵转电流Stall current (at locked)	1.9A	2.1 A	2.3A

Sepcification:

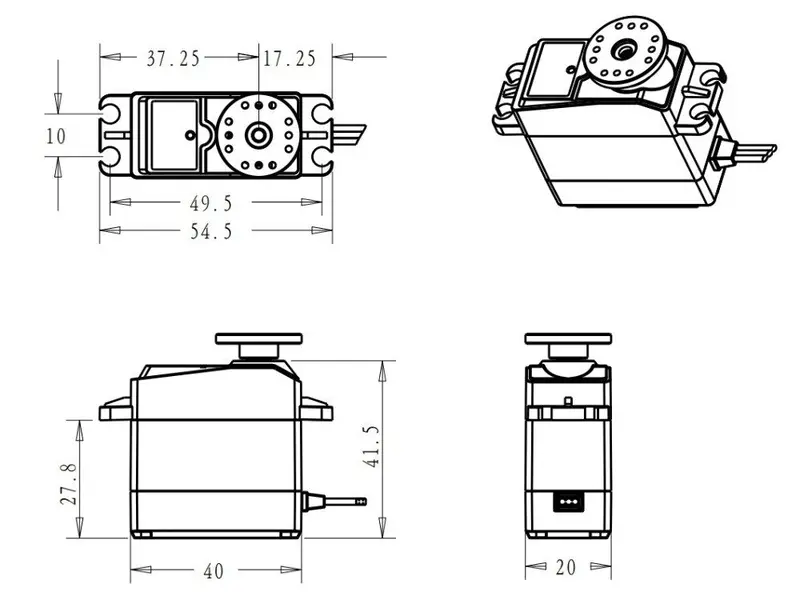

Brand:Dsservo Item: DS3225-25KG and DS3235-35KG Coreless Stainless Steel Gear Waterproof Digital Servo Operating Voltage: 5 ~ 7.4 DC Volts Dead brand: 2 μs Weight: 60 g (2.12 oz) Motor Type: Coreless Motor Gear Type: Stainless Steel & Aluminum Working frequence: 50-333Hz Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)

Features:

– High performance digital standard servo – High-precision metal gears （Stainless steel gear）with hard anodizing – CNC aluminium middle Shell – Dual ball bearings Package Included: 1 x DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo 1 x 25T Adjustable metal servo arm a set of accessories Or 1 x DS3225 25KG Coreless Stainless Steel Gear Waterproof Digital Servo 1 x 25T Adjustable metal servo arm a set of accessories product pictures
