Description

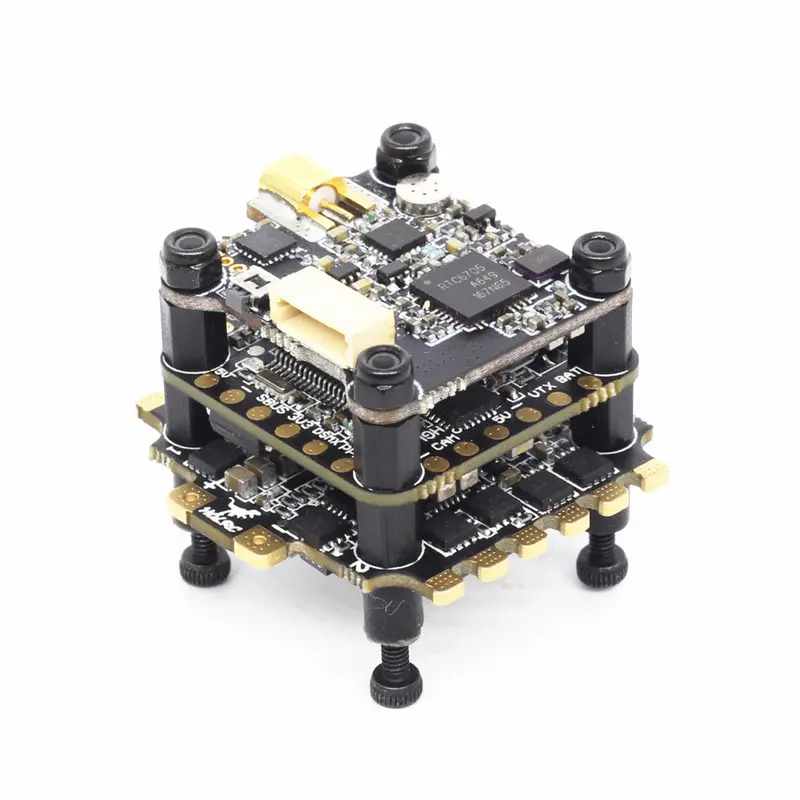

HGLRC XJB F428-Forward VTX Mini 20x20mm Stack F4 V2 FC & 28A BL_S ESC & 25/100/200/350mW VTX
Specificaiton:
Brand Name: HGLRC
Model: XJB F488-Forward VTX Mini
Item Name: 20x20mm F4 V2 FC & 28A ESC & VTX Stack
Weight: 15.1g
Application: for 65mm-250mm Frame Kit
F4 V2 Flight Control Board (D-Shot Version)
MPU: MPU6000-SPI CPU: STM32F405RGT6, dual 8K. Black Box: Flash 16M Input Voltage: 2-4S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 25x25mm board, 20mm mounting holes (M2) Support SBUS/PPM/DSMX receiver Weight:3.7g
28A BLHeli_S 2-4S 4in1 ESC
Input Voltage: 2-4S Lipo battery Constant Current: 28A Peak Current: 35A BEC Ouput: NO Firmware: BLHELI_S firmware Size: 27x27mm (main board) 32x32mm ( including pad) Mounting Hole: 20x20mm, M2 Weight: 4.2g CPU: SILABS EFM8BB2 48MHZ MOS Tube: TOP QUALITY MOSFET Support Damped Mode, Oneshot125/42, Multishot, Dshot150/300/600, forward and reverse Forward VTX Mini FPV Transmitter
Output Power: PIT/25mW/100mW/200mW/350mW Switchable Control Mode: BFOSD Control(RX)/Button BAT: 7-26V, BEC 5V-1A,250mA—-350mW Video System: NTSC/PAL Antenna: MMCX Size: 24*27mm(L*W),Hole:20*20mm Weight: 2.7g Frequency and power control methods: 1.Button frequency control:
Short press once to change channel number CH (CH1-CH8) ; Long press for 2 seconds and then short press to change frequency group FR (A-B-E-F-R-L) 2.Button power control:
Long press button for 6 seconds and then short press button to change power level PIT/25/100/200/ 350mw
Package Included:
1x HGLRC F4 V2 Flight Controller 1x HGLRC 28A 2-4S BLHeli_S 4 in 1 ESC 1x HGLRC Forward VTX Mini
1x MMCX to SMA Adapter Cable
1x bag of Screws
