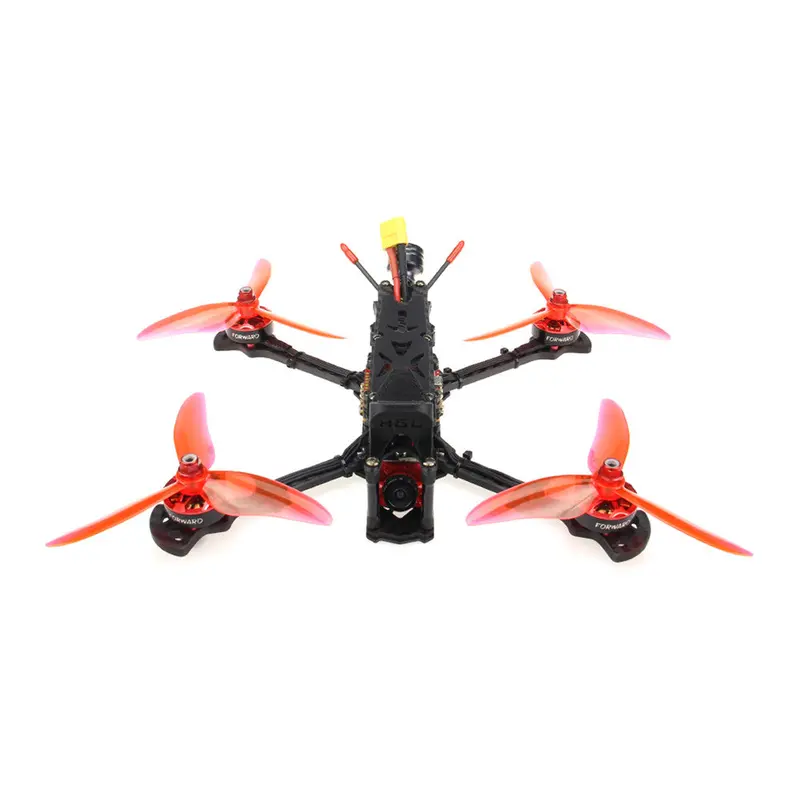

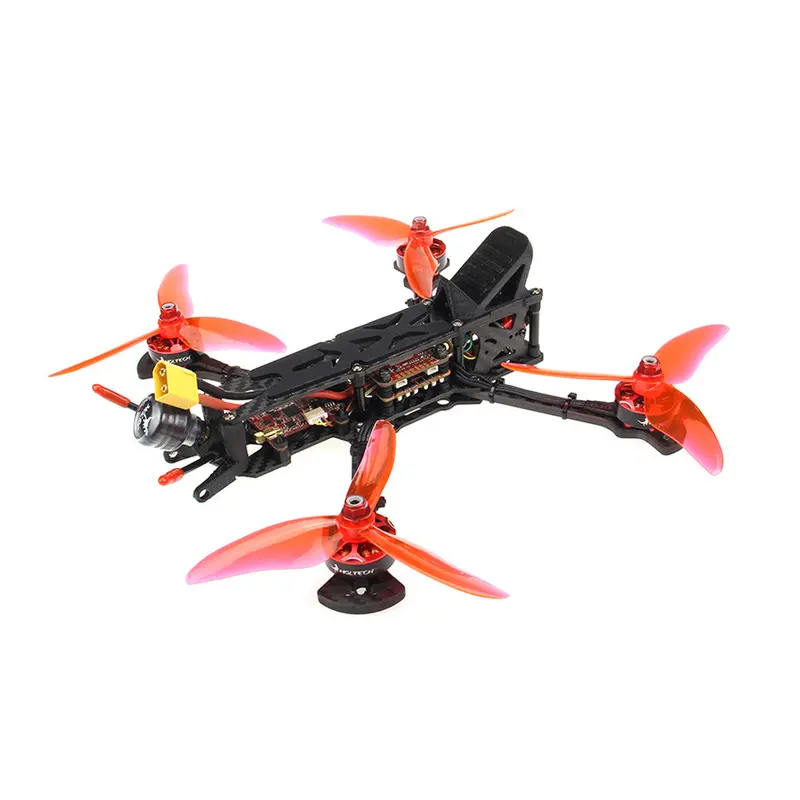

HGLRC Sector 5 V2 FPV Racing Drone – 4S BNF with Dual F7 Flight Control & 60A 4-in-1 ESC

Description

HGLRC Sector 5 V2 FPV Racing Drone 4S BNF F7 Dual Flight Control 60A 4in1 ESC 2306 Motor   Item Name:  HGLRC Sector 5 V2 FPV Racing Drone 4S PNP/ BNF Net Weight:357g (Does not include receiver)   HGLRC Sector 5 V2 Frame Kit Material: 3K Carbon  Fiber Model: Sector V2 Freestyle Frame Kit Wheelbase: 226mm Top plate thickness: 2mm  Bottom plocte thickness: 2mm Middle plate thickness: 2mm Camera side panel thickness: 1.5mm Type: 5″ Frame Arm Thickness: 5mm Arm width : 10mm Standoff Height: 25mm Flight control installation holes: 20*20mm&30 * 30mm Chute type Support camera: 19/22mm Weight: 103.5g (Does not contain TPU)   HGLRC FD F7 Dual Flight Control MPU: ICM20608 (32K) & MPU6000-SPI CPU: STM32F745VGT6, 32K+16K Input Voltage: 3-6S Lipo  Built-in Betaflight OSD to adjust PID BEC Output: 5V/2A, 8V/1.5A  LED Output: 5V/2A Size: 37x37mm, 30.5mm mounting holes  Weight:10.2g
Blackbox: No   HGLRC DinoShot 60A BL32 3-6S 4in1 ESC CPU: STM32F051 MOS Tube: TOP QUALITY MOSFET Input voltage: 3-6S lipo battery Constant current: 60A-4S/50A-5S/40A-6S Peak current: 70A BEC ouput: NO Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped mode Size: 36x36mm (main board)     40x48mm (including pad) Installing hole: 30.5×30.5mm, M3 Weight: 12.9g   HGLRC FD VTX 400MW Output power: PIT/25mW/50mW/100mW/200mW/400mW Control mode:BFOSD control(RX)/button Input: DC 7-28V BEC:5V-1A Video system: NTSC/PAL Antenna: MMCX Frequency: 5.8GHz 6 bands 48 channels.with Raceband: 5362-5945 MHZ Size:36x36x5mm.Hole:30.5*30.5mm Weight: 5.2g     HGLRC AURORA V2 FPV Camera 1200TVL Image Sensor:1/2.7 ” 1200TVL CMOS  TV System: PAL/NTSC Switchable Lente:2.1mm S/N: > 50dB Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON) WDR: Support Lanuage: Chinese/English/Italian/Russian OSD programming board: Support Input Power: DC 5V-30V Working Temperature:-10℃ ~50℃ Storage Temperature: -40℃ ~60℃  Dimensions:19mm*19mm*27mm Net weight:8.9g   HGLRC FD2306 2450KV Brushless Motor Internal Resistance (mΩ): 50 Stator Diameter:23mm Stator Height:6mm No.of Stator Slots:12S No.of Rotor Poles:14P Max Continuous Current:22.04A(60S) Max Continuous Power:577.3 W Shaft Diameter:5mm Overall Dimension(mm):27.9 X 30.7 Lead Wire Size :20AWG X 150 mm ESC:50 A No.of Cells(Lipo):16.8 V (4S) Recommended Prop(inch): 5-6 Inch Weight:32 g   Gemfan 51499 5 Inch 3-Blade Propeller Quantity: 3 CW & 3 CCW
Recommend Battery: 1300-1800mAh (Not Included)   Package Included: 1x FD F7 Dual Flight Control 1x DinoShot 60A BL32 3-6S 4in1 ESC 1x FD VTX 400mW  1x AURORA V2 CAMERA 1x Sector 5 V2 Freestyle Frame Kit 4x FD2306 2450KV Motor 6x GF51499 3 propeller 1x Hammer Antenna  1x Battery Strap 1x Receiver (PNP Version Without Receiver)
