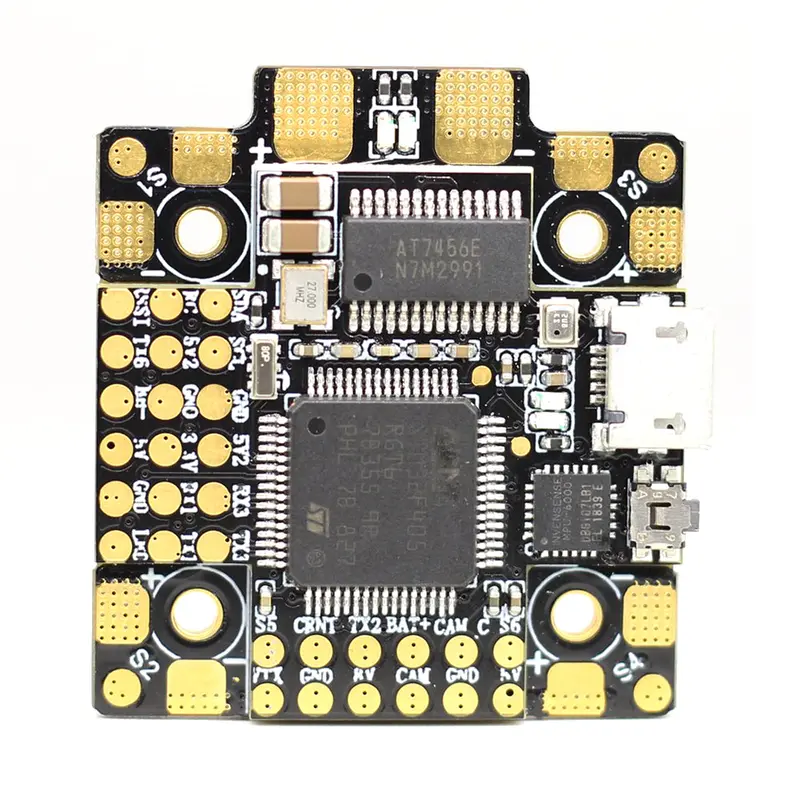

HGLRC Forward F4 AIO Flight Controller – Omnibus F4 V6, STM32F405, OSD, Dual BEC (5V/3A & 8V/1.5A), MPU6000

Description

HGLRC Forward F4 AIO 3-6S Flight Controller STM32F405 OSD w/ 5V/3A 8V/1.5A BEC MPU6000 Gyros 10.4G 20x20mm
Specification: User Manual
Brand name: HGLRC
Item name: Forward F4 AIO Flight Controller
CPU: STM32F405
MPU: MPU6000-SPI
Direct welding ESC PDB
Black Box: No dataflash chip found
Input Voltage: 3-6S Lipo
Copper foil thickness: 3OZ * 6
Maximum current: 280A
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A, 8V@1.5A
Firmware: Omnibus F4 V6
Size: 31.0×34.5mm board, 20.0mm mounting holes (M2)
Weight:10.4g

Recommended ESCs:
HGLRC T-Rex 35A BLHeli32 ESC
HGLRC Forward BLHeli_32 50A ESC
Individual ESCs or 4-in-1 ESC

Package Included:
1x HGLRC Forward F4 AIO Flight Controller
1x SH1.0 8PIN 60MM Cable
