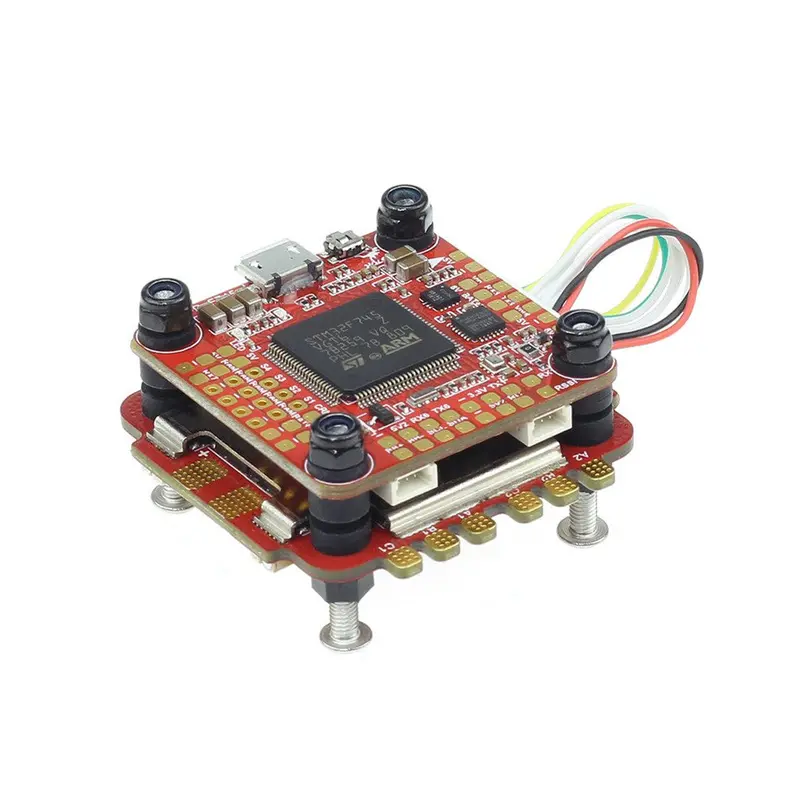

HGLRC FD765 All-in-One Flight Controller Stack (F7 Dual Gyro, OSD, BEC, 65A BL32 ESC)

Description

HGLRC FD765 Stack F7 Flight Controller AIO OSD BEC & L431 65A BLHeli_32 4in1 3-6S ESC for RC Drone
Specification: ( Manual)
Brand Name: HGLRC
Model: FD765
Item Name: F7 Flight Controller AIO OSD BEC & L431 65A BLHeli_32 4in1 3-6S ESC Stack
Mounting Hole: 30.5×30.5mm
Stack Height: 25mm
Stack Weight: 41.7g
Application: for 180mm-1000mm Frame Kit
FD F7 Dual Gyroscope Flight Controller MPU: ICM20608 (32K) & MPU6000-SPI CPU: STM32F745VGT6, 32K+16K Input Voltage: 3-6S Lipo  Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A, 8V@1.5A  LED Output: 5V@3A, Size: 37x37mm, 30.5mm mounting holes  Weight:10.2g    FD 65A L431 BLHeli_32 3-6S 4in1 ESC CPU:STM32L431 BLHELI32 Firmware Input Voltage: 3-6S Lipo Steady Current: 65A Peak Current: 75A BEC: NO Supported Protocols: DSHOT1200/600/300/150.ONESHOT125/42.MultiShot Size: 46*45*6mm Weight:23.8g   Package Included: 1xFD F7 Dual Flight Control 1xFD 65A L431 Blheli_32 3-6S 4in1 ESC
