Description

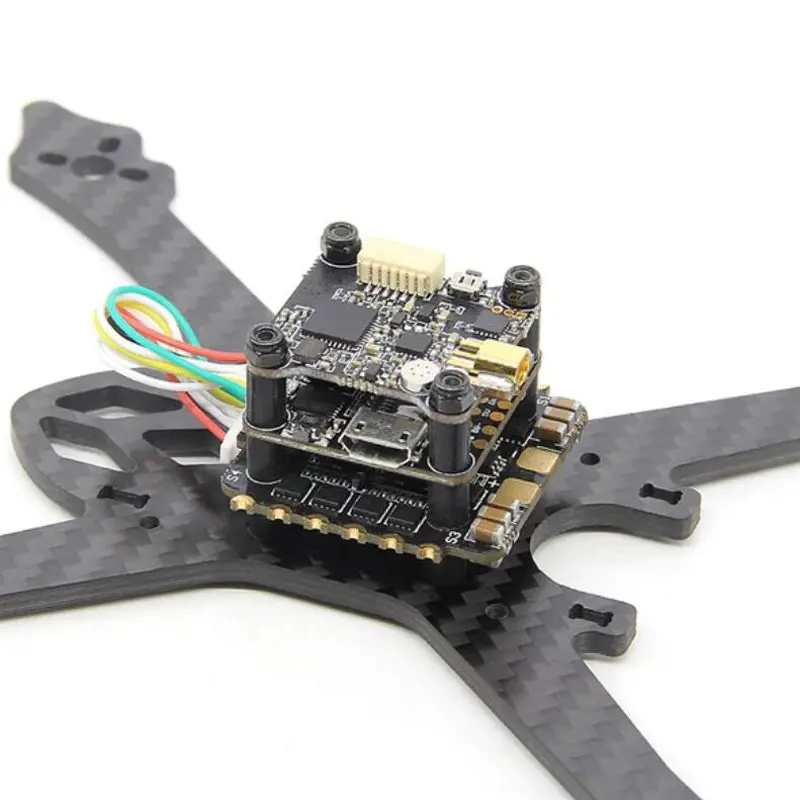

HGLRC FD435-VTX Stack FD F4 Mini FC 35A Blheli_32 3-6S 4 In 1 ESC 25-300mW VTX Mini 20X20mm
Specificaiton:
Brand name: HGLRC
Item name: FD435-VTX Stack
Usage: for 120mm-250mm Frame Kit
Weight: 18.4g
HGLRC FD F4 Mini Flight Controller
CPU: STM32F405R6T6
MPU: MPU6000-SPI
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25.0×25.0mm
Installing Hole: 20X20mm,M2
Weight:4.7g
HGLRC FD 35A 4in1 BL32 3-6S ESC
Input Voltage: 3-6S Lipo
Constant Current: 35A
Peak Current: 40A(10s)
BEC Ouput: NO
Size: 36x36mm
Installing Hole: 20x20mm,M2
Weight: 6.5g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode:
DSHOT1200/600/300/150/Oneshot125/42,MultiShot
HGLRC FD VTX Mini
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V,
BEC 5V-1A,
250mA—-350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm
Installing Hole: 20x20mm,M2
Weight: 2.7g
User Manual, DOWNLOAD
Package Included:
1x FD F4 Mini Flight Controller
1x FD 35A 4in1 ESC
1x FD VTX Mini
