Hbs F405 F4 Flight Controller Aio Betaflight Osd Bec & Built-In 5A Bl_S Dshot600 Esc 1-2S For Rc Drone Fpv Racing

Description

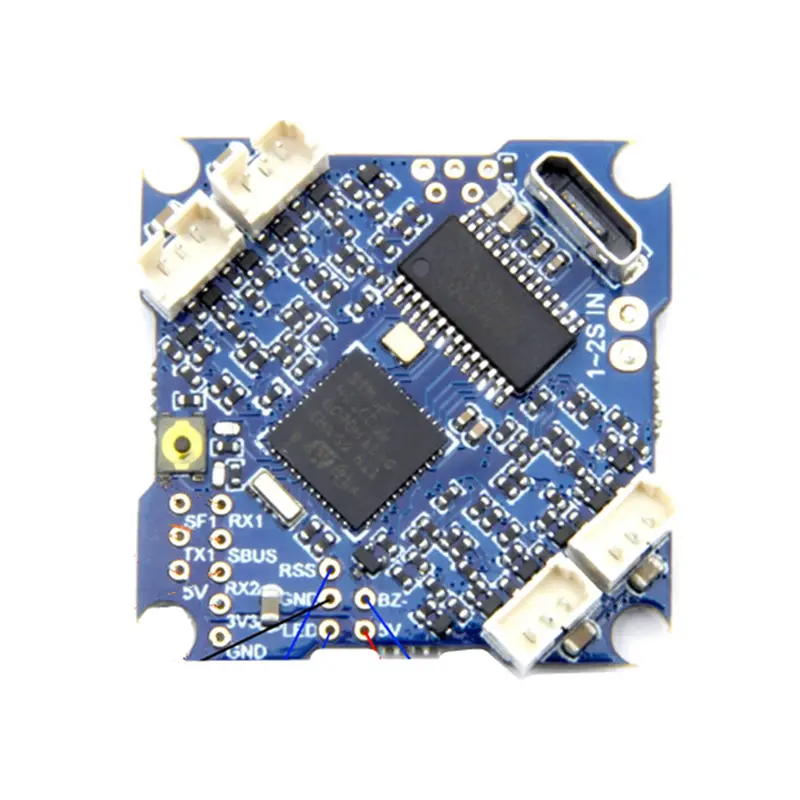

HBS F405 F4 Flight Controller AIO Betaflight OSD BEC & Built-in 5A BLheli_S DShot600 ESC Module
Specification:
Brand Name: HBS
Model: F405
Item Name: F4 Flight Controller Integrated with 5A ESC Board
Board Size: 28.5×28.5mm
Screw Hole Spacing: 24.5×24.5mm ( M3)
Board Weight: 3.2g
F4 Flight Controller
CPU: STM32F411CEU6
Sensor: MPU6000 Triaxial accelerometer/  Triaxial Gyroscope ( SPI Connection)
Firmware: betaflight_3.5x_MATEKF411 (4.0.0 ready)
Input Voltage: 1-2S Lipo ( DC 3.2V-8.7V)
BEC: 5V @ 0.5A ( 1S ) ; 5V @1.5A ( 2S )
Built-in OSD interface
– Support BLHeli Suite ESC programming
– Support DShot ESC Built-in Voltage Detection, Alarm
– Support LED Strip
– Support Smart Audio OSD Control
– Support Buzzer
– Support Compatible PPM, SBUS, IBUS, DSM2/DSMX Receiver
5A ESC:
Input Voltage: 1-2S
Con. Current: 5A
Peak Current: 6A ( 3S)
Support BLHeliSuite Programmable
Factory Firmware: S_H_50_REV16_7.HEX
– Support Oneshot125, Multishot, DShot150, DShot300, DShot600, PWM
Package Included:
1x HBS F405 F4 Flight Controller Built-in ESC Module
