HappyModel SE0603 1S High-KV Brushless Motor – 16000KV & 19000KV Options for FPV Racing Drones

Description

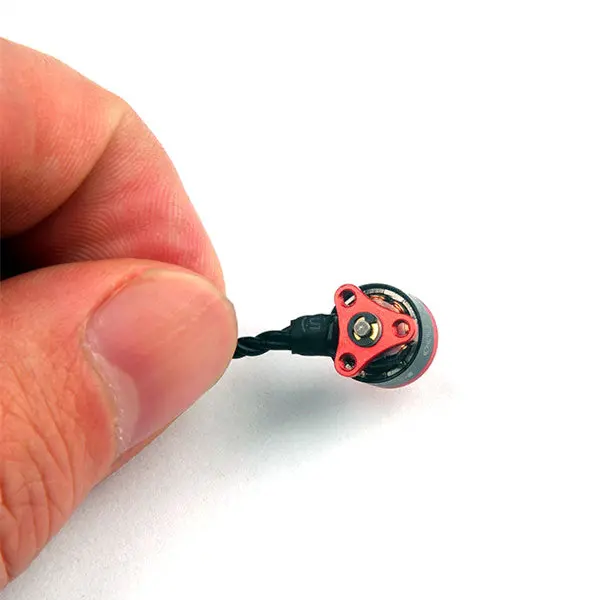

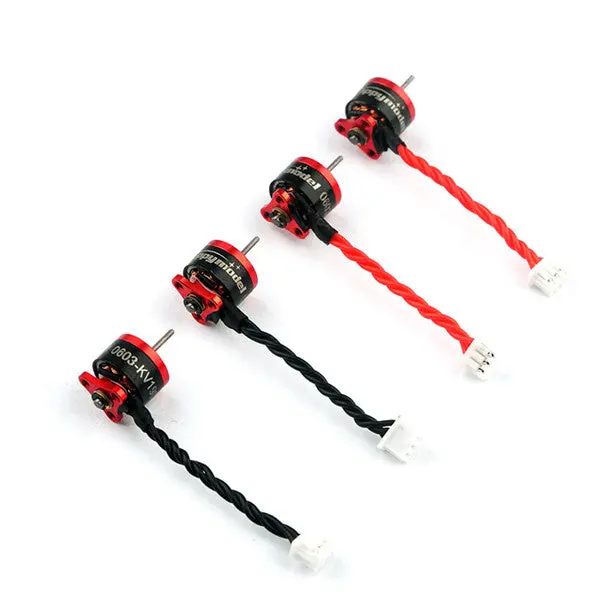

Happymodel SE0603 1S 16000KV 19000KV Brushless Motor for RC FPV Racing Drone






31mm propeller (0.8mm shaft):

40mm 3-blade propeller(1.0mm shaft):

55mm 2-blade propeller(1.0mm shaft):

Specification:
Brand name: happymodel
Item name: SE0603 1S brushless motor
KV: 16000KV, 19000KV (option)
Shaft Diameter: 0.8mm,1.0mm (option)
Configu-ration: 9N12P
Stator Diamter: 6mm
Stator Length: 3mm
Motor Dimension(Dia.*Len): Φ9mm*15.4mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1S
Wire length(include connector): 35mm
Weight: 1.7g
Features:
Super tiny only 1.7g
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance
0.8mm Shaft compatible Tiny whoop 0.8mm propellers
Package included:
1x SE0603 1S brushless motor
