Description

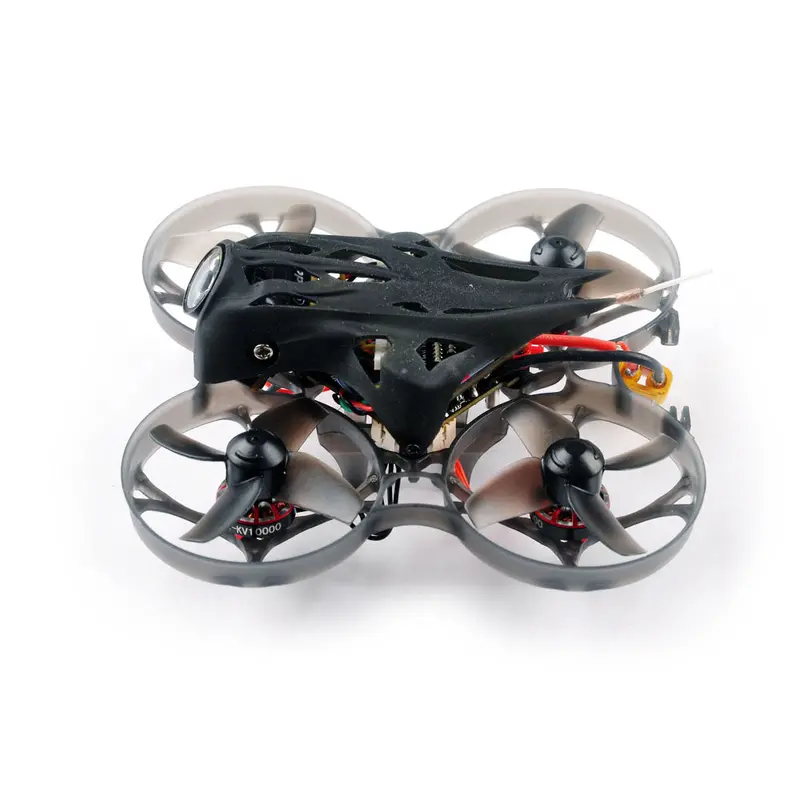

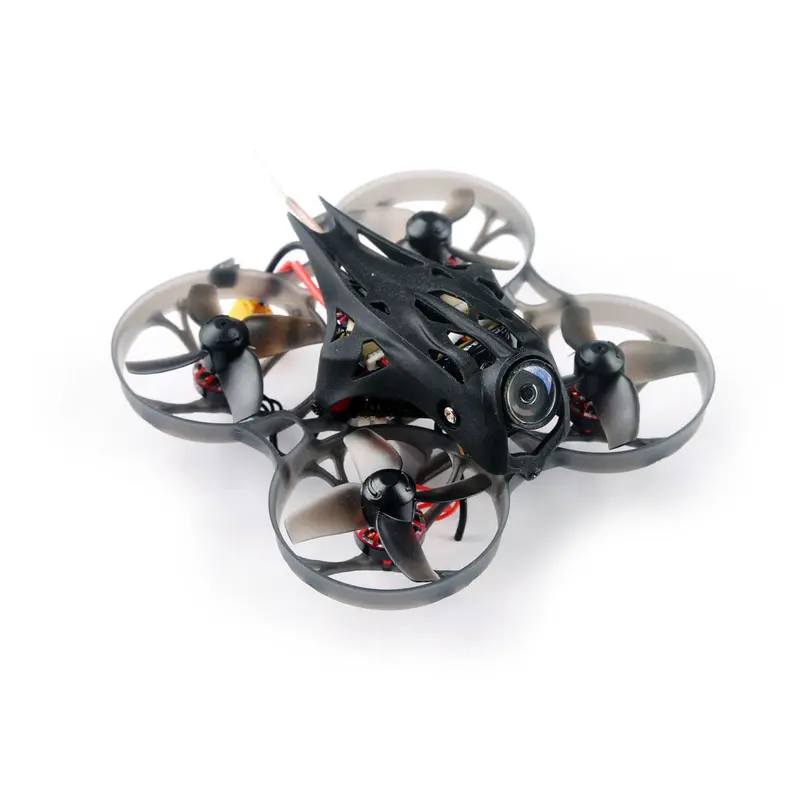

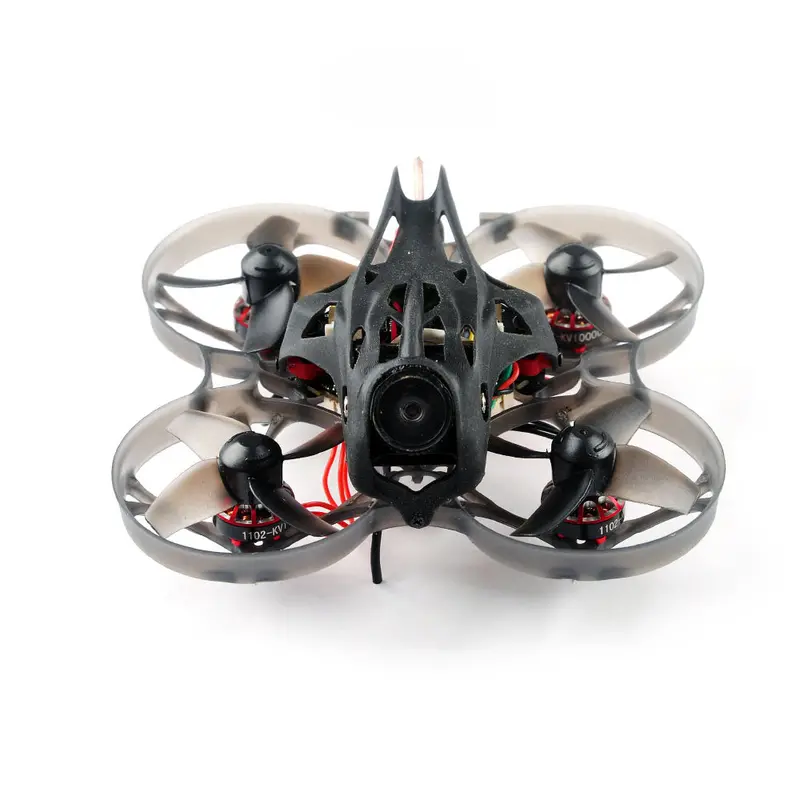

Upgrade Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro Whoop FPV Racing Drone PNP BNF
Upgrade Version:
1. Motors are upgraded to 9000KV Version.
2. Removed the Microphone and it was packed separately in the pacakge.
3. Heighten the frame
07.29 Beijing Time
Notice:
New betaflight configurator 10.5.0 and 10.5.1 are not compatible for Mobula7 HD very well for now.
We suggest to use Betaflight configurator 10.4.0
In order to reduce risk from the Mobula7 HD (10000kv motor version )esc burnt , we suggest to limit the throttle scales to 75% .
Performance is almost the same like new 9000KV version. The cli command is : set throttle_limit_type = scale set throttle_limit_percent = 75 save
Specification:
Brand Name: Happymodel
Model: Mobula7 HD
Item Name: 75mm Wheelbase 2-3S Brushless Whoop FPV Racing Drone
Wheelbase: 75mm
Receiver ( Optional): Compatible Frsky NON-EU Receiver
Compatible Flysky Receiver
Compatible DSM2/DSMX Receiver
Without Receiver
Size: 98mm*98mm*45mmWeight: 48g (without battery)
72g ( with battery )
| Crazybee F4 PRO V2.0 Flight Controller | Item Name: Crazybee F4 Pro V2 FC MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-3S battery input (DC 3.5-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Receiver ( Diffirent version having diffirent receiver, without receiver version doesn’t have rx) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A Buck / Boost with LC filter Built-in voltage detection Firmware (Frsky version) CRAZYBEE F4FR PRO V2.0 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V2.0 Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.0 Firmware target: CrazybeeF4DX (No RX version) CRAZYBEE F4 PRO V2.0 Firmware target: CrazybeeF4DX |
| Onboard 5A 4 In 1 ESC | MCU upgraded to EFM8BB21 Power supply: 1-3S LiPo/LiPo HV (3.5v/13v) Current: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 |
| Onboard Frsky NON-EU receiver Version | SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Onboard Flysky receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| Onboard DSM2 / DSMX receiver version | Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| EX1102 9000KV Motor | Mode: EX1102 KV9000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ13.5mm*16mm Weight(g):2.8g No.of Cells(Lipo):1S-3S |
| Propeller | 40mm 4-blade Propeller ( 4 CW + 4 CCW) |
| 5.8G 40CH 25-200mW VTX | Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 3g |
| CADDX Turtle V2 Camera | Image sensor: 1/2.7″ CMOS sensor Horizontal: 800TVL TV system: NTSC/PAL changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20V FPV FOV: 155° Recording FOV: 170° Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Lens: 1.8mm Turbo Eye Lens Working Current: 380mA@5V/160mA@12V (low consumption) OSD Menu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II) Color: Red |
| Lipo Battery | Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 23g Connector: XT30 |
Features:
– New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible – 2S for indoor Cine whoop mode – 3S for outdoor Freestyle whoop mode – Betaflight support , multi flight mode: ACRO/AIR/ANGLE – The lightest 1102 brushless motor only 2.7g with double ball bearings – Powerful and smoothly – Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output) – Caddx turtle v2 + 1080p 60fps DVR ready – Camera Angle adjustable – VTX power switchable 25mw~200mw – Smartaudio ready , change VTX bands, powers, channels via OSD – Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible – Flysky version support both AFHDS and AFHDS-2A protocol transmitter – DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter – No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.. – Full telemetry function ready (Frsky Non-EU and Flysky version support) – Special Breath light ready – Real Bind and Fly version – Compatible both for 2s-3s Lipo/LIHV
Package Included: 1x Mobula7 HD 75mm FPV Drone 4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW) 1x 3S 11.4v 300mah 30C/60C battery 1x Propeller Disassemble Tool 1x Screwdriver
