Description
Another recommend indoor FPV drones please click here
extra battery for Mobula7 please click here ,don’t put extra in one orderextra battery for Mobula7 please click here ,don’t put extra in one order
Note:Version: Basic Version / Standard Version ( Optional)
– The diffirence of them are the package charger.
Basic Version: USB Charger
Standard Version: 6-way Charger
Specification:
Model: Mobula7
Item Name: 75mm Wheelbase 2S Brushless Whoop FPV Racing Drone
Receiver ( Optional): Compatible Frsky NON-EU Receiver
Compatible Frsky EU-LBT Receiver ( XM+ Receiver)
Compatible Flysky AFHDS/ AFHDS-2A Receiver
Compatible DSM2/DSMX Receiver
| Crazybee F3 Pro Flight Controller | Item Name: Crazybee F3 Pro FC MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Receiver ( Diffirent version having diffirent receiver) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready Firmware (Frsky version) CRAZYBEEF3 PRO FR Firmware target: CrazybeeF3FR (Flysky version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS (DSM2/DSMX version) CRAZYBEEF3 PRO Firmware target: CrazybeeF3DX (Frsky EU-LBT version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS |
| Onboard 5A 4 In 1 ESC |
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) |
| Onboard Frsky NON-EU receiver Version | SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Onboard Frsky EU-LBT Version (External XM+ receiver) |
Operating Voltage Range: 3.7~10V |
| Onboard Flysky receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Onboard DSM2 / DSMX receiver version | Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| SE0802 16000KV Motor | Model: SE0802 KV: 16000KV Configu-ration: 9N12P Stator Diamter: 8mm Stator Length: 2mm Shaft Diameter: Φ1.0 Motor Dimension (Dia.*Len) : Φ10.5*14.5mm Weight: 1.8g Support 1-2S Lipo No.of Cells: 1S Lipo |
| Propeller | 40mm 3-blade Propeller ( 4 CW + 4 CCW) |

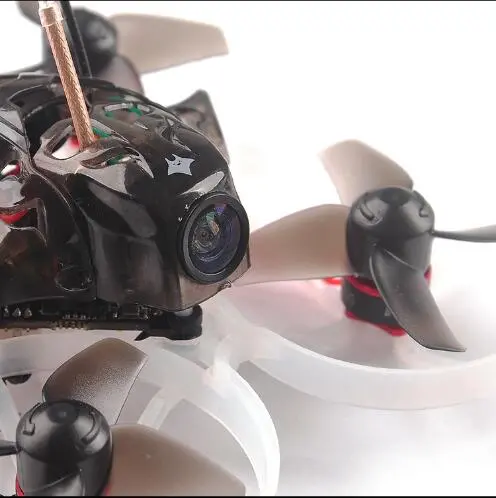

| 5.8G VTX AIO Camera | 5.8G 40CH 25mW VTX Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) 700TVL FOV120 Camera Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 13.9″12.0mm ( L*W ) Weight: 3g |
| Lipo Battery | Capacity:250mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 55mmx12mmx7mm Weight: 6.5g Connector: PH2.0 Notes: Need 2pcs batteries for Series circuit |
Features:
– New Crazybee F3 PRO Flight controller 1-2s Lipo compatible
– 2S whoop more powerful and more flight time
– Betaflight support , multi flight mode: ACRO/AIR/ANGLE
– New 0802 Powerful and High efficiency Brushless motor and Smooth ESC
– Smartaudio ready , change VTX bands, channels via OSD
DSM2/DSMX and Frsky EU-LBT version are Serial-based receiver, so Smartaudio is not compatible.
– Adjust the settings and the PID of the flight controller via OSD
– Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
– Flysky version support both AFHDS and AFHDS-2A protocol transmitter
– DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
– Frsky EU-LBT version support Frsky EU-LBT firmware transmitter
– Full telemetry function ready
– Head lights ready
– Camera angle adjustable
– Real Bind and Fly version
– Buzzer Ready
Package Included:

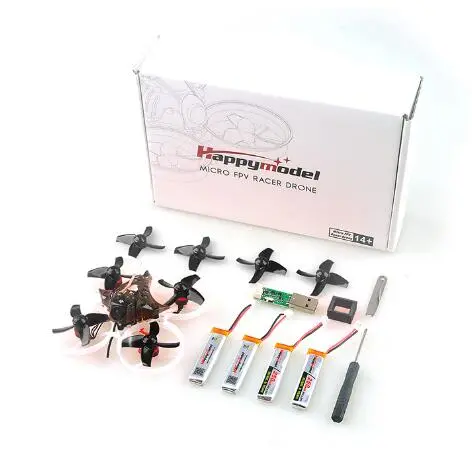

Basic Version
1x Mobula7 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x USB Lipo/LIHV Charger
1x Fixing Mount for Lipo Battery
1x Propeller Disassemble Tool
1x Screwdriver

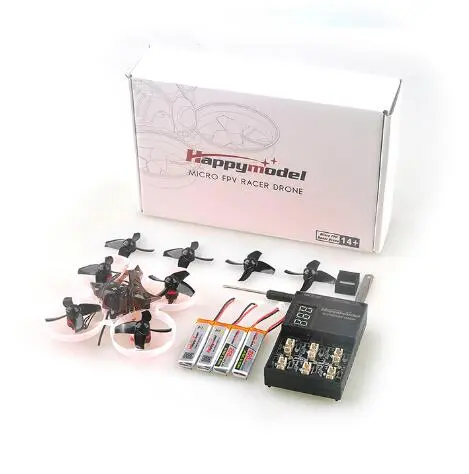

Standard Version
1x Mobula7 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x 1S06 6 Way Lipo/LIHV charger
1x Propeller Disassemble Tool
1x Fixing Mount for Lipo Battery
1x Screwdriver
