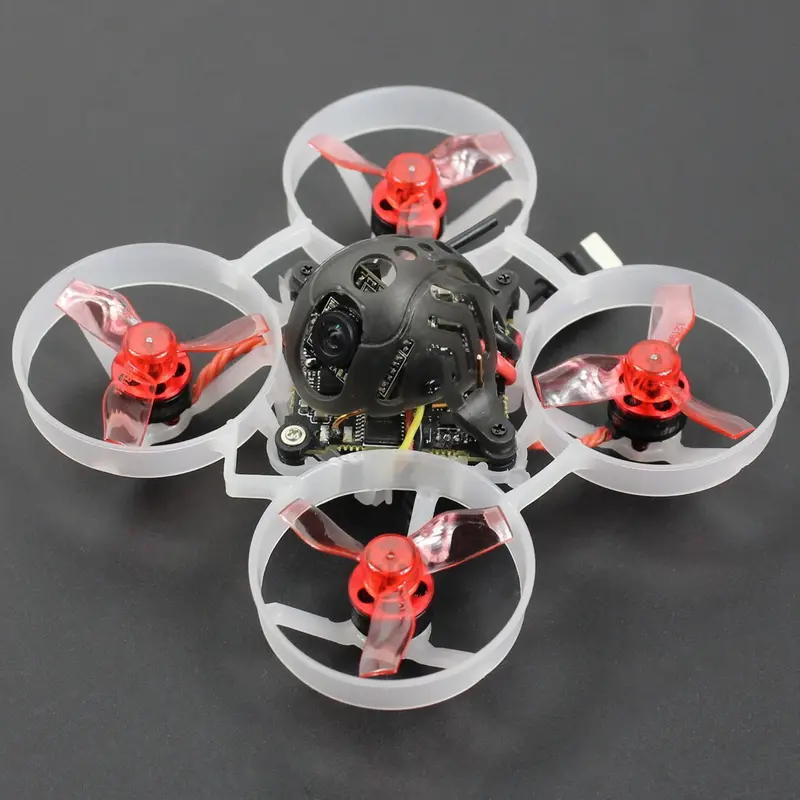

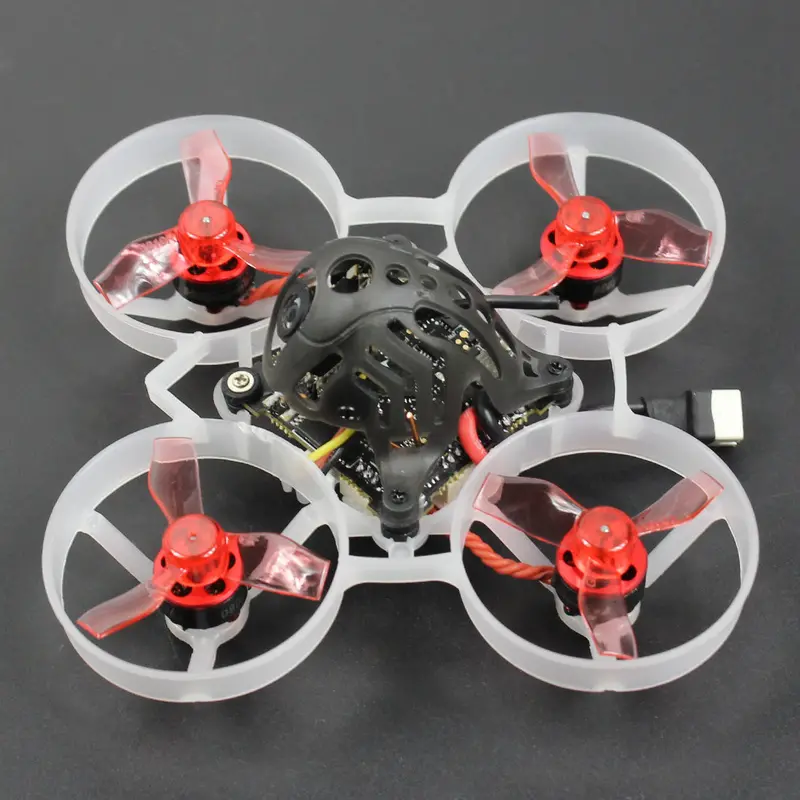

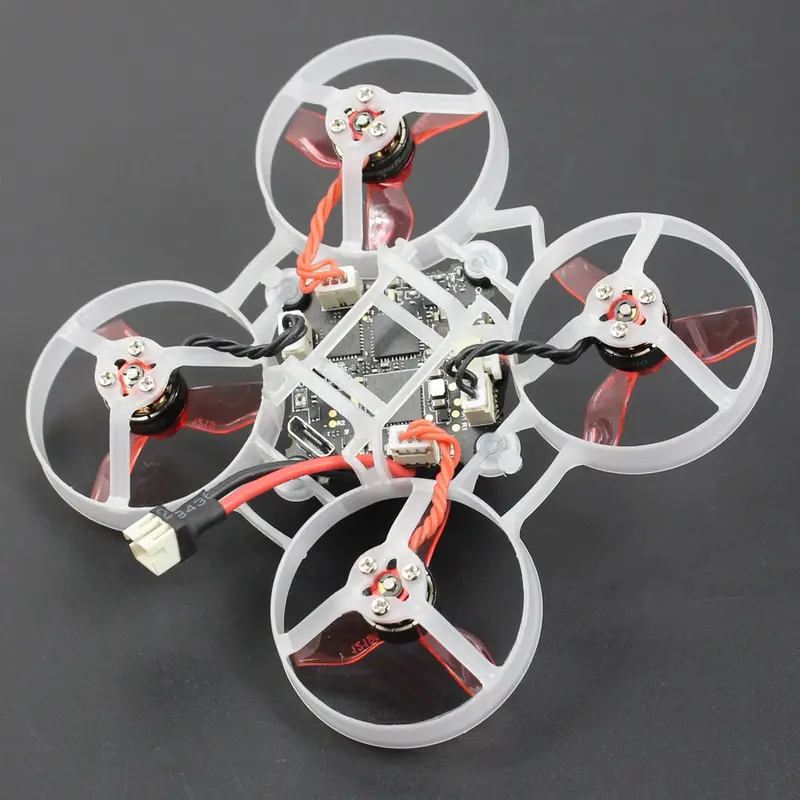

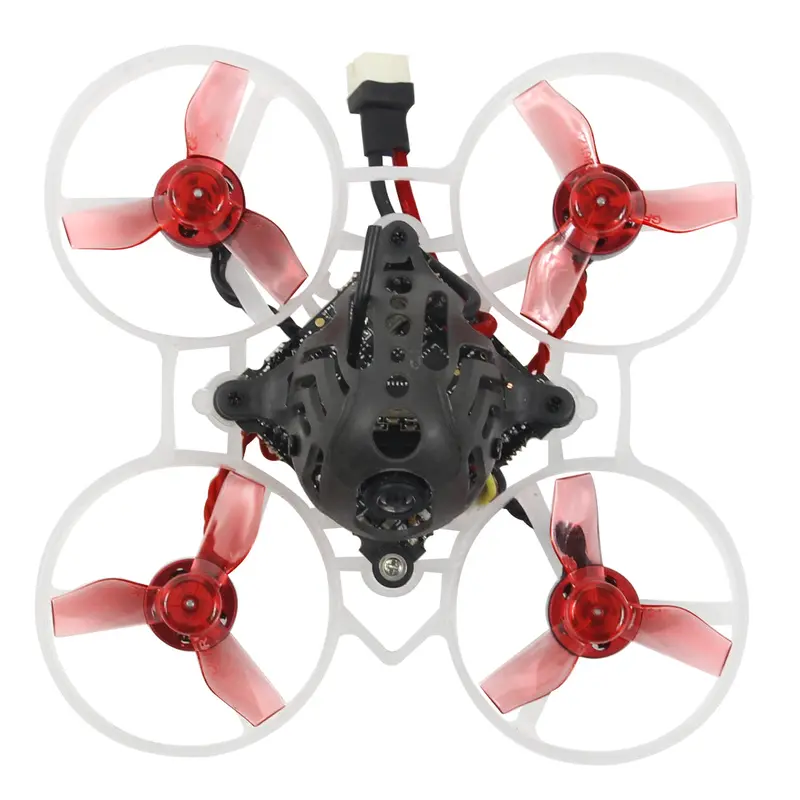

HappyModel Mobula6 1S 65mm Brushless Whoop FPV Drone – All-in-One F4 Lite Flight Controller, Ready-to-Fly Micro Racer

Price range: $92.03 through $92.81

Quantity
SKU: N/A Category: Brand:

Description

Happymodel Mobula6 1S 65mm Brushless Whoop Drone Mobula 6 BNF AIO 4IN1 Crazybee F4 Lite Flight Controller Built-in 5.8G VTX

Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

Extreme light 1S 65mm Brushless whoop only 20g

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

Weight: 20g

Receiver option:

Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

Motor speed option:

SE0802 KV25000(Race Edition)

SE0802 KV19000(Regular Edition)

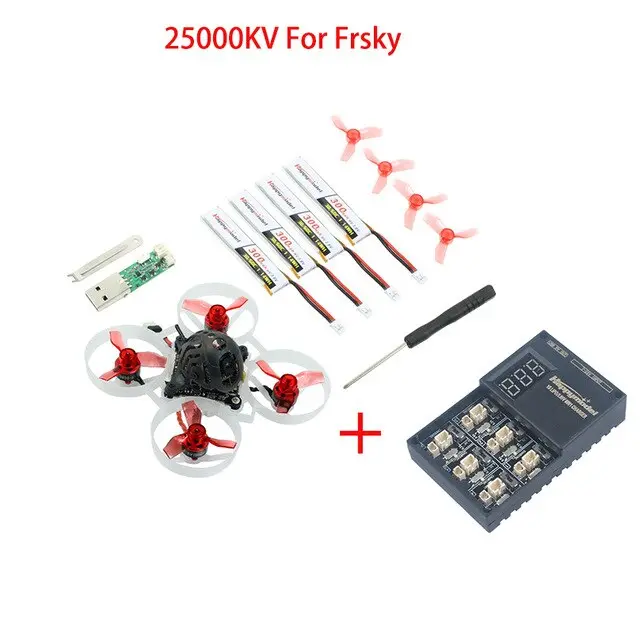

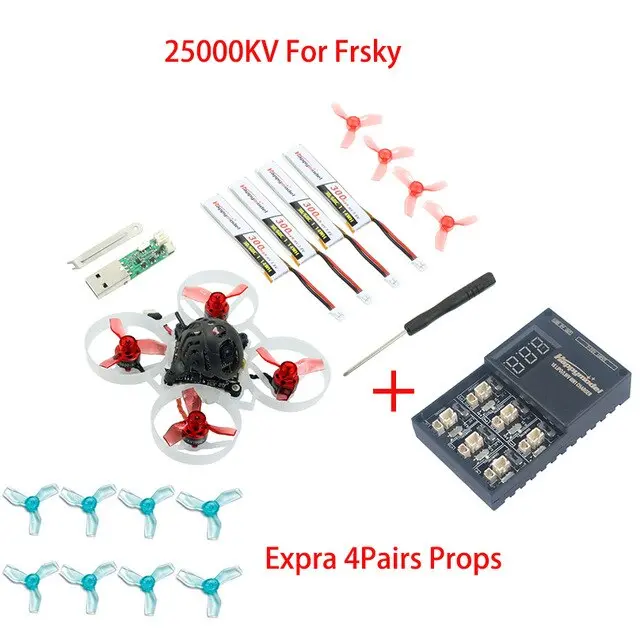

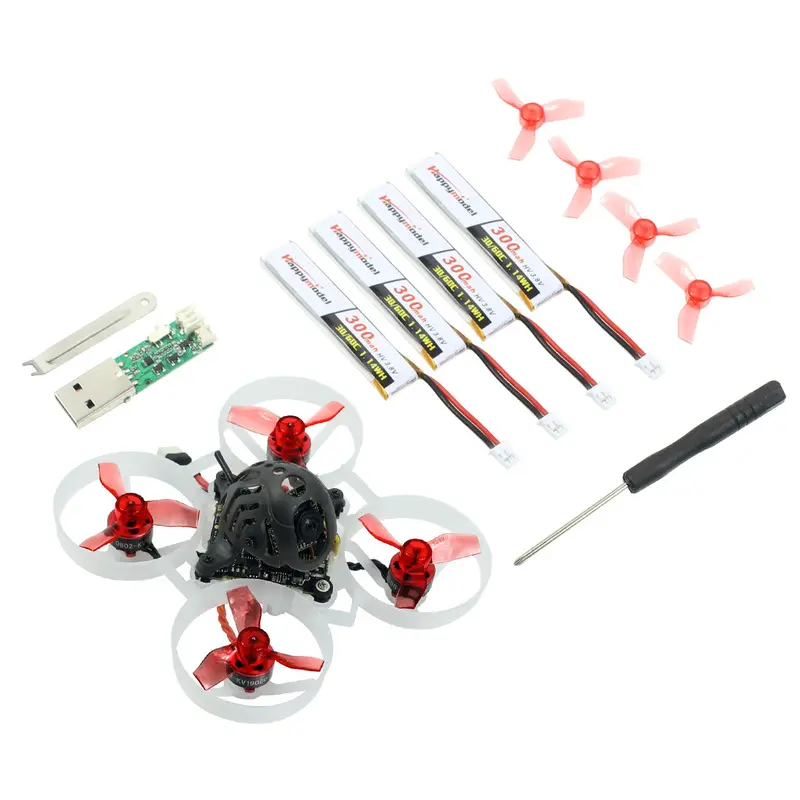

Package includes:

Item Name

Qty

Mobula6 1S 65mm whoop Drone Frame

1

SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX

1

SPI Receiver Option2: Crazybee F4 Lite FC built-in Flysky SPI RX

SE0802 KV19000 or KV25000 brushless motor

4

Gemfan 1219-3 Propellers(4cw+4ccw)

1

Runcam Nano3 1/3 CMOS 800TVL camera

1

5.8G 25mw 40ch vtx (Flight controller built-in)

1

1S 300mah 30C LiHV Battery

4

1S Lipo/LIHV USB Charger

1

Propeller disassemble tool

1

Spare parts specifications:

Motor

Mode: SE0802 19000KV or KV25000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only

Propellers

Gemfan 1219-3

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm

Weight:0.28g

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

OnboardFrsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model

Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

OnboardFlysky SPIreceiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support

Onboard 5.8g VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3″ CMOS

Horizontal Resolution: 800TVL

Lens : 2.1mm(M8) FOV 160°

Signal System: PAL/NTSC Non Switchable

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V  120mA@3.3V

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g

Connector: PH2.0
