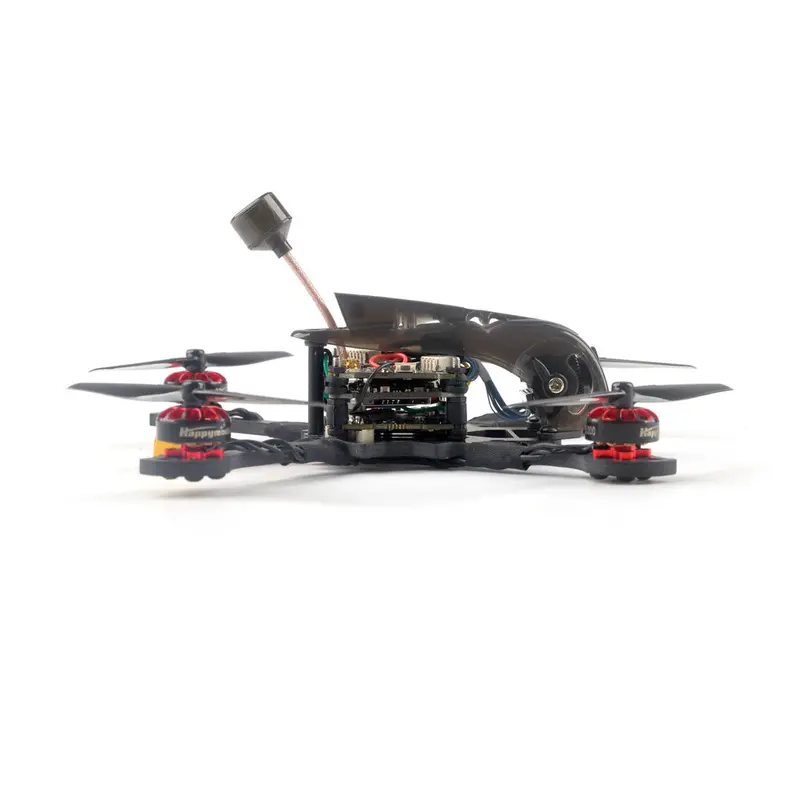

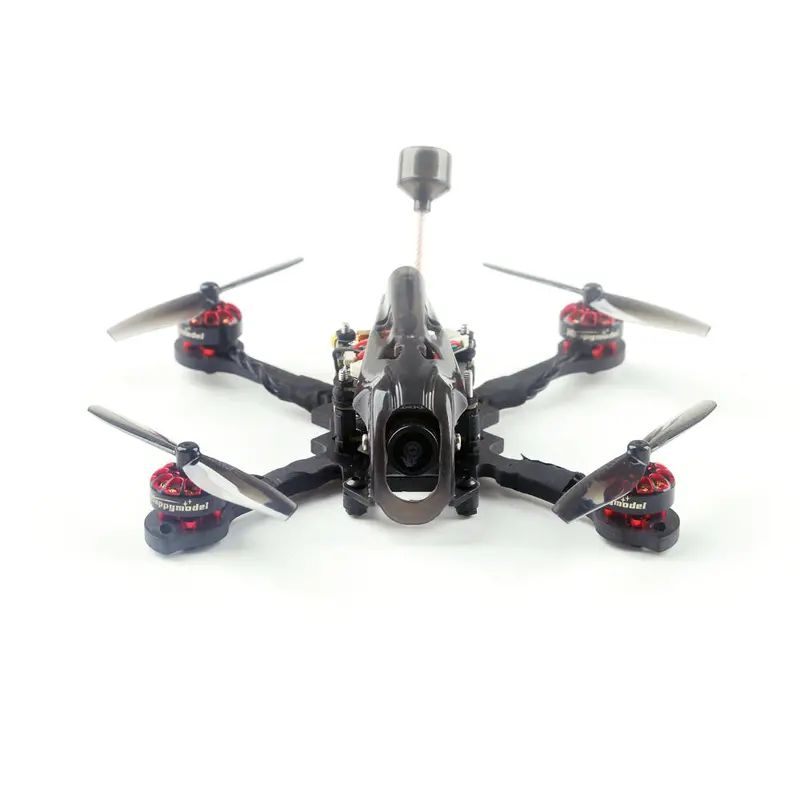

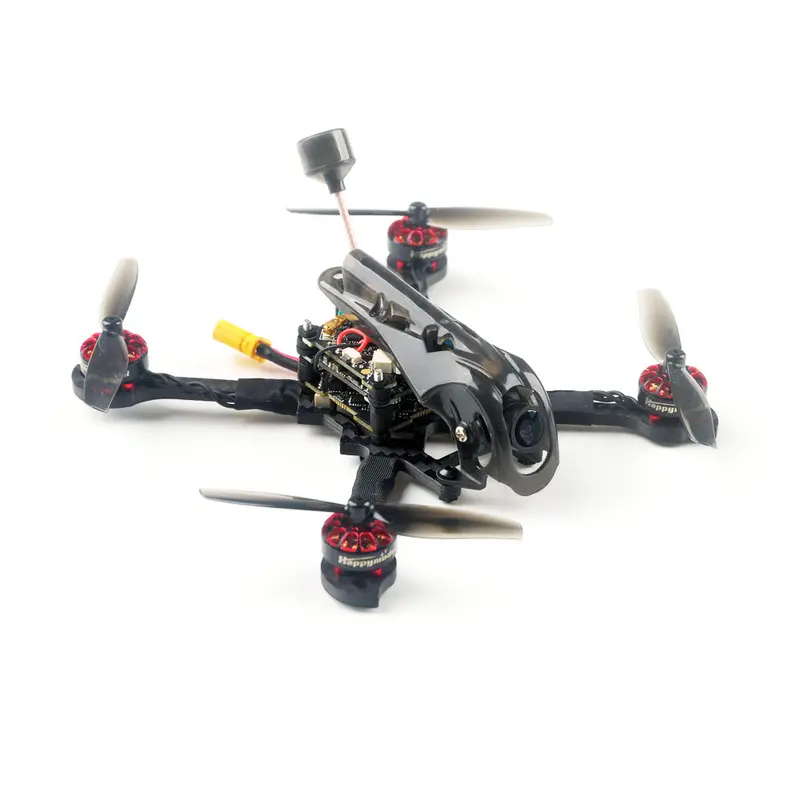

Happymodel Larva X HD 125mm F4 2-3S Toothpick HD Whoop HD 2in1 FPV Racing Drone PNP BNF
Specification:
Brand Name: Happymodel
Model: Larva X HD
Item Name: Larva X HD 125mm F4 2-3S Toothpick HD Whoop HD 2in1 FPV Racer

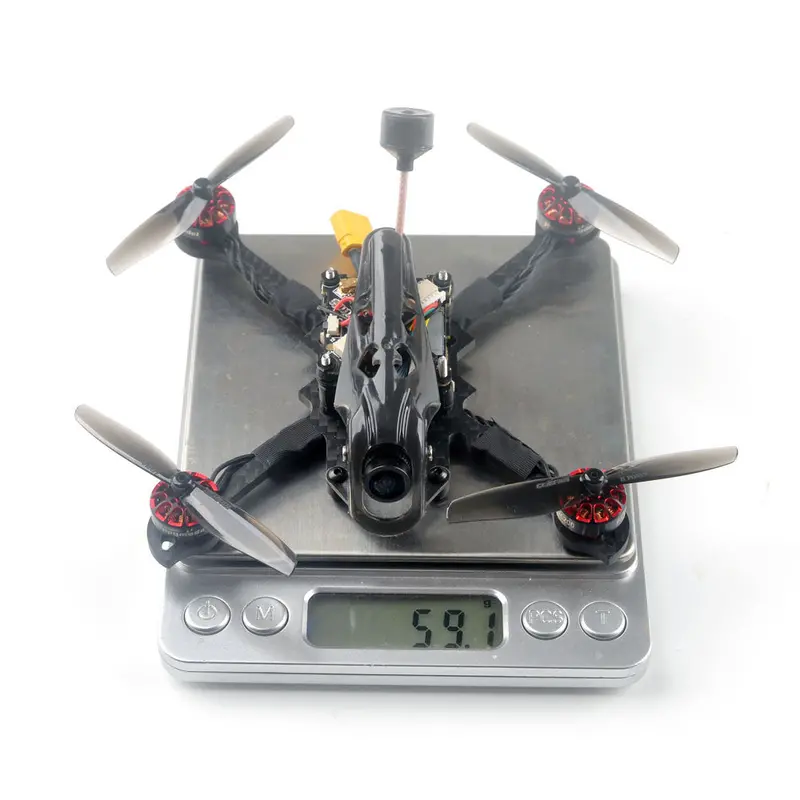

Wheelbase: 125mm Size: 105x105x35mm (without propellers) Weight: Toothpick style ductless 63g (without battery) Whoop style ducted 79g (without battery)
| EX1203 6200KV Motor | Configuration: 9N12P Stator Diamter: 12mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len): Φ15x5mm Weight: 4.7g No.of Cells: 2-3S Lipo |
| Crazybee F4FR PRO Flight Controller | Frsky SPI RX version: CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR Flysky SPI RX version: CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS External RX version: CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board Size: 28.5x 28.5mm Power supply: 2-4S battery input (DC 7-17V) Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready Could add external receiver on the FC board Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 70A Current meter scale set to 470 Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 12A 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Current: 10A continuous peak 12A (5 seconds) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_7.HEX Default protocol: DSHOT600 |
| Built-in Frsky SPI D8 Receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m – Support add extral external receiver if you need |
| Built-in Flysky SPI Receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support – Support add extral external receiver if you need |
| External DSMX/DSM2 Receiver Version | Resolution: 1024/2048 Operating voltage: 3.3V Working current: 60MA Size: 18mm*13mm*5mm Antenna length: 30mm Protocol: DSM2/DSMX |
| External Frsky XM+ Receiver Version | Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC) Operating Voltage Range: 3.7~10V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Antenna: 10cm Firmware Upgradeable Compatibility: FrSky D16 mode |
| External Frsky RXSR Receiver Version | Weight: 1.5g Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel) Operating Voltage Range: 3.5V~10V Operating Current:70mA@5V Firmware Upgradable Compatibility: FrSky X Series modules and radios in D16 mode Could support Frsky New ACCST Protocol ( Upgrade firmware) |
| External TBS CRSF Nano Receiver Version | Original TBS CROSSFIRE Receiver , CRSF Protocol , Official TBS transmitter compatible |
| 5.8G 40CH 25-200mW VTX | Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: Micro UXII Antenna Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready Weight: 3g |
| Caddx Baby Turtle Camera | TV system: NTSC/PAL changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20V Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Working Current: 380mA@5V/160mA@12V (low consumption) OSD Menu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS |
| 3S 11.4V 450mAh 75C Lipo Battery | Capacity:450mAh Voltage:11.4v Continuous Discharge Rate: 75C Size: 66mmx21mmx18mm Weight: 42g Connector: XT30 |
Features:

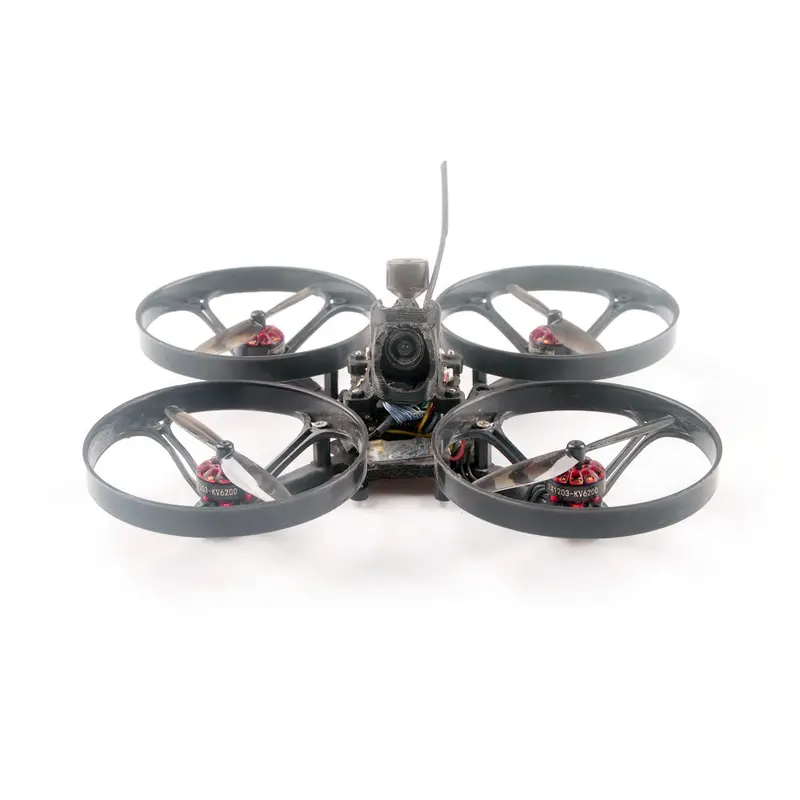

– Toothpick HD and Whoop HD 2 in 1 combo (Default Comes in Toothpick HD style)
– Toothpick style compatible both 2.5 inch or 3 inch propellers – New design EX1203 High efficiency brushless motors – Caddx baby Turtle provide 1080P 60FPS DVR video – Camera Angle adjustable – Full range receiver options – Buzzer ready – Smooth and powerful – Compatible both for 2s-3s Lipo/LIHV
Package Included:
1x Larva X HD FPV Drone
2x 3S 11.1V 450mAh Lipo Battery
1x 5.8g Micro UXII Antenna
1x Propeller Disassemble Tool
