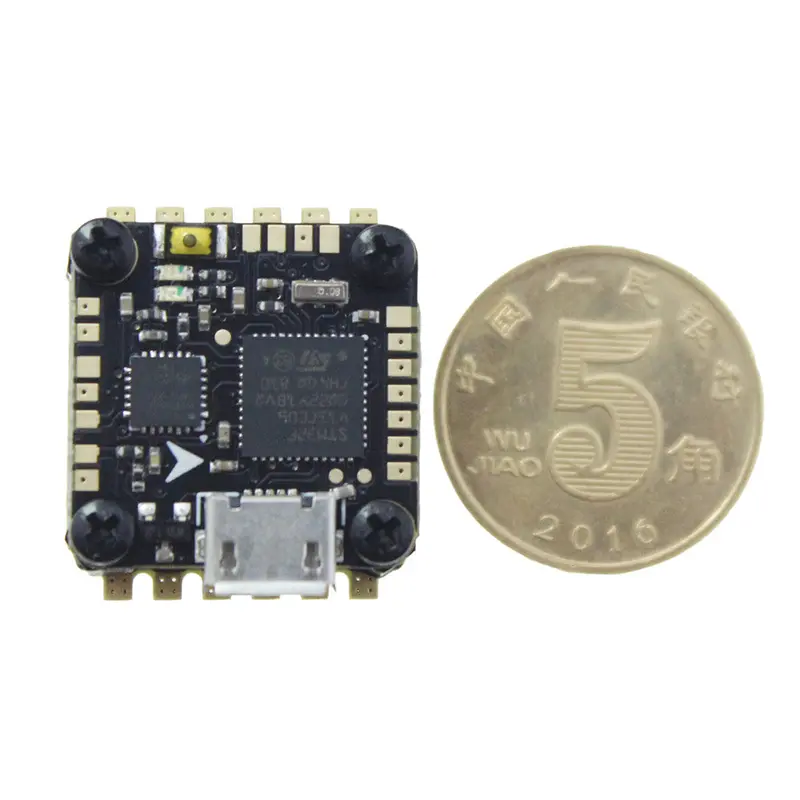

HAKRC Flytower F4 16×16mm All-in-One Flight Controller for 2S Drones: OSD, BEC, and 4-in-1 10A BL_S ESC

Description

HAKRC 16x16mm Flytower F4 2S Flight Controller AIO OSD BEC & 2S10A BL_S 4in1 ESC for RC Drone
Specification:
Brand Name: HAKRC
Item Name: F4 FC AIO OSD BEC & 10A BL_S 4in1 ESC Flytower
Dimension: 20x20x10mm
Mounting Hole: 16x16mm, M2
Weight: 7g
F4 Flight Controller AIO OSD BEC
CPU: STM32F411C
Gyro: MPU6000
Input Voltage: 2S Lipo
Integrated with LED_Strip, OSD
BEC: 5V @ 0.5A
Built-in LC Filter
Support BF firmware ( HAKRC F411 firmware)
Application: for frame kit less than 70mm.
Receiver Setting:
DSM2/DSMX, SBUS, IBUS Receiver, Set RX1
PPM Receiver, don’t need choose UART Port.
2S10A BLheli_S 4in1 ESC
Con. Current: 10A
Peak Current: 14A (5S)
Input Voltage: 1S-2S Lipo/ HV-Lipo
Firmware: BLHeli_S  GH__50_REV16_7
Support Dshot150 Dshot300 Dshot600 Oneshot125 Multishot and PWM
Package Included:
1x F4 Flight Controller
1x 2S10A 4in1 ESC
2x Cable
1x bag of Screws
