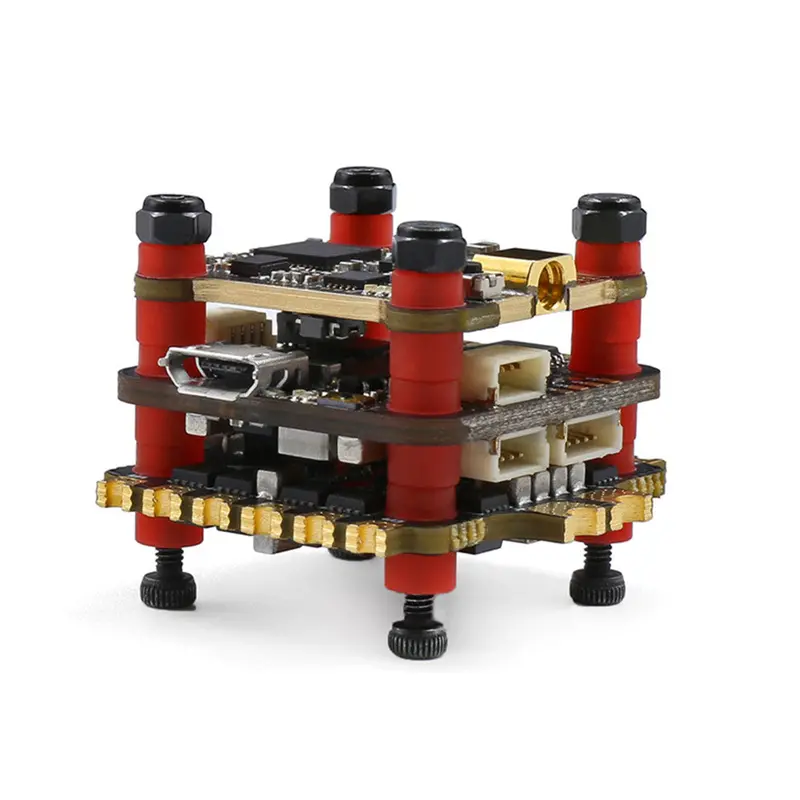

GEPRC Stable V2 F4 All-in-One Flight Controller Stack – 20x20mm with OSD, BEC, 30A/35A 4-in-1 ESC & 500mW VTX for FPV Drones

Description

Geprc Stable V2 F4 Stack F4 Flight Controller AIO OSD BEC & 30A BL_S / 35A BL_32 4in1 ESC & 500mW VTX
Specification: ( Manual)
Brand Name: Geprc
Model: Stable V2 F4
Item Name: F4 Flight Controller & 30A / 35A 4in1 ESC & 5.8G 500mW VTX Stack
Optional ESC Version: 30A / 35A
F4 Flight Controller MCU: F405
IMU: MPU6000 Gyro/Accelerometer (SPI)  BlackBox: 32Mb onboard Flash OSD: BetaFlight OSD w/ AT7456E chip Baro:NO BEC Output: 5V@3A Integrated LC Filter Input Voltage: 2-6S Lipo Firmware target: OmnibusF4SD Size: 26x26mm board, 20mm mounting holes (M2)
35A BLheli_32 4in1 ESC ( 35A Advanced Version)
MCU:STM32F051 Input:2-6S lipo Constant: 35Amps Burst: 45Amps Dimensions:31*31mm(including the power pads) Mounting Holes:20*20mm,M2 Supports Dshot1200,Proshot,Oneshot,Multishot Current meter: Yes Target: GEPRC-BL32-4IN1
30A BLheli_S 4in1 ESC  ( 30A Basic Version)
Input:2-5S Lipo Constant: 30Amps Burst: 35Amps Dimensions:31*31mm(including the power pads) Mounting Holes:20*20mm,M2 Supports Dshot600,Proshot,Oneshot,Multishot Current meter: 100 Target: G_H_30
5.8G 48CH 500mW VTX
Input voltage: 5V Channel: 48 Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW Size: 24 * 26 mm Mounting Holes Dimension: 20mm x 20mm Connector type: MMCX Connector BEC Output: 5V/1A for Camera of FC Weight: 2.3g – Traditional button – IRC Tramp protocol
Package Included:
1x F4 Flight Controller
1x 35A ESC OR 30A ESC
1x FPV Transmitter Module
1x Antenna
1x Capacitor
1x bag of Cables
1x bag of Screws
