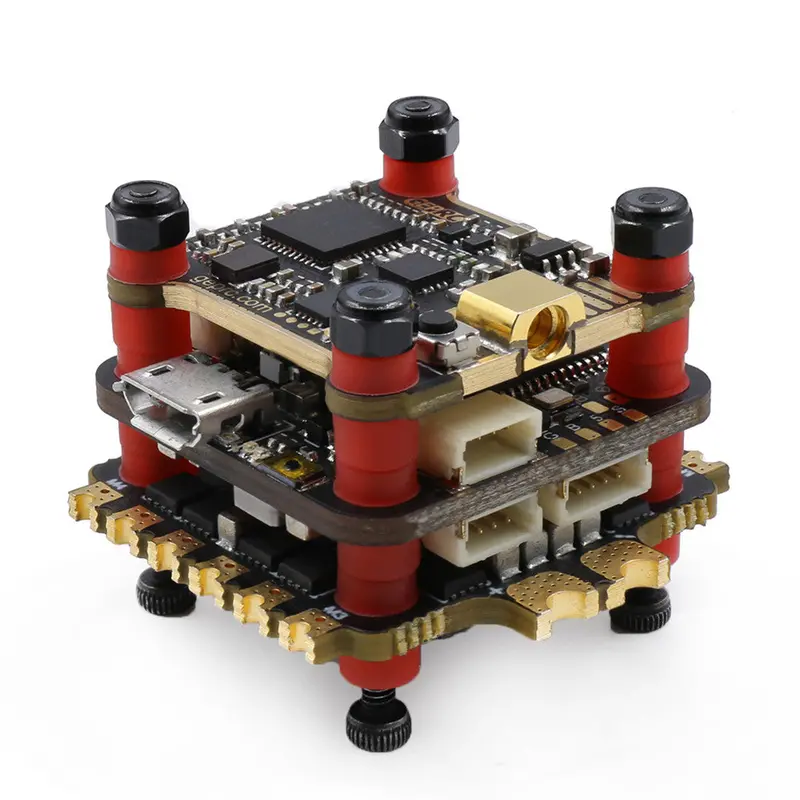

GEPRC Stable Pro F7 Flight Controller Stack – Includes Dual Gyro FC, 35A BLHeli_32 4-in-1 ESC, and 5.8GHz 500mW VTX

Description

Geprc Stable Pro F7 Stack Dual Gyro F7 Flight Controller & 35A BLheli_32 4in1 ESC & 5.8G 500mW VTX
Specification: ( Manual )
Brand Name: Geprc
Model: Stable Pro F7
Item Name: Dual Gyro F7 Flight Controller & 35A BLheli_32 4in1 ESC & 5.8G 500mW VTX Stack
F7 Flight Controller
Model:STABLE PRO F7  MCU: STM32F722RET6 IMU: 2x ICM20689(SPI) BlackBox: 32Mb onboard Flash OSD: BetaFlight OSD w/ AT7456E chip Baro:NO BEC Output: 5V@3A Integrated LC Filter Input Voltage: 2-6S Lipo Firmware target: EXF722DUAL Size: 26x26mm board, 20mm mounting holes (M2)
35A BLheli_32 4in1 ESC
MCU:STM32F051 Input:2-6s lipo Constant:35Amps Burst:45Amps Dimensions:31*31mm(including the power pads) Mounting Holes:20*20mm,M2 Supports Dshot1200,Proshot,Oneshot,Multishot Current meter: Yes Target: GEPRC-BL32-4IN1
5.8G 48CH 500mW VTX
Input voltage: 5V Channel: 48 Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW Size: 24 * 26 mm Mounting Holes Dimension: 20mm x 20mm Connector type: MMCX Connector BEC Output: 5V/1A for Camera of FC Weight: 2.3g – Traditional button – IRC Tramp protocol
Package Included:
1x F7 Flight Controller
1x 35A ESC
1x FPV Transmitter Module
1x Antenna
1x Capacitor
1x bag of Cables
1x bag of Screws
