Description

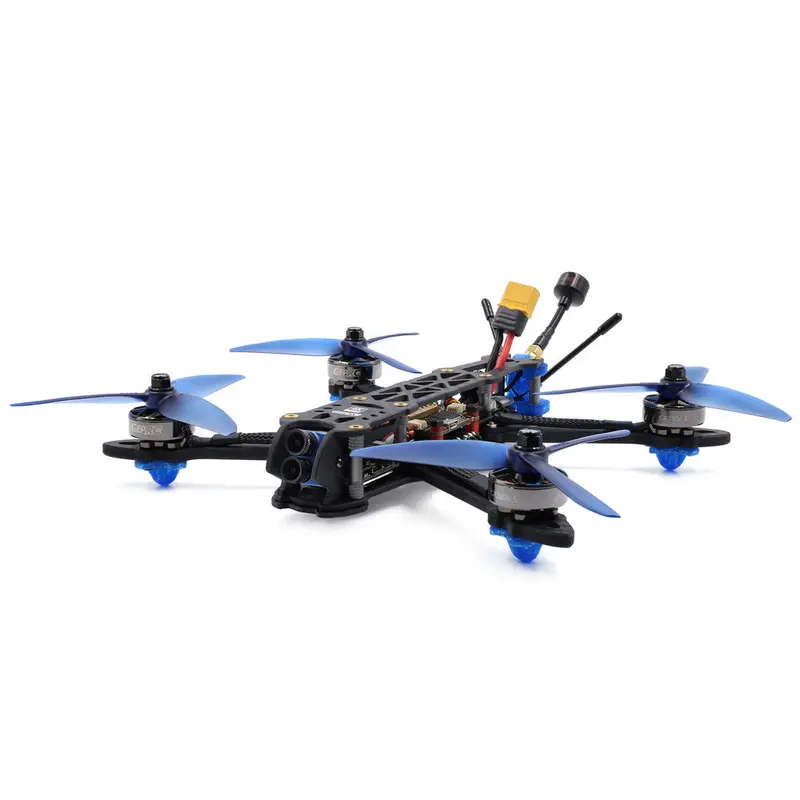

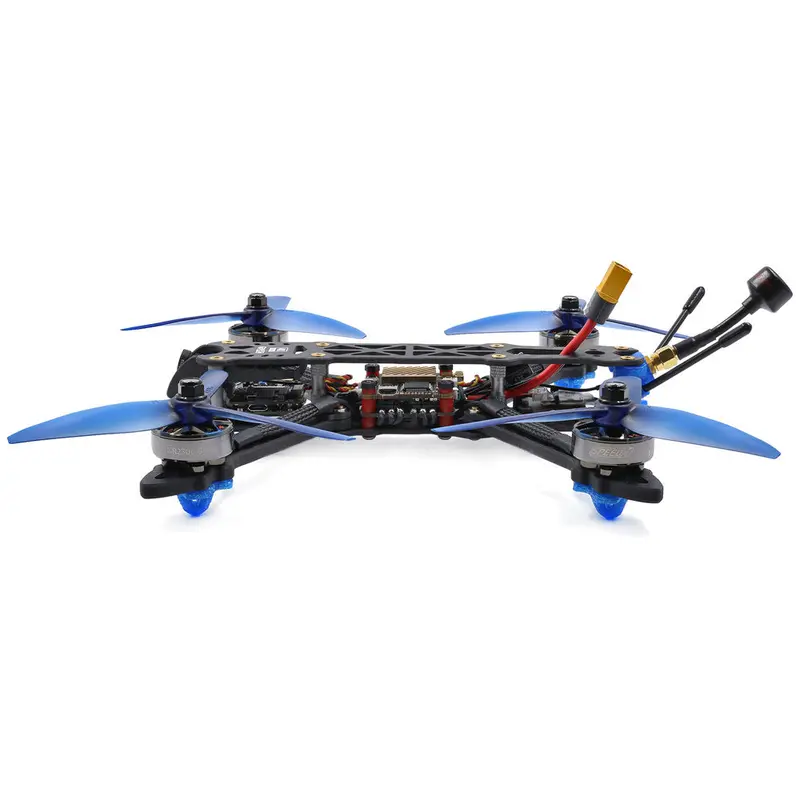

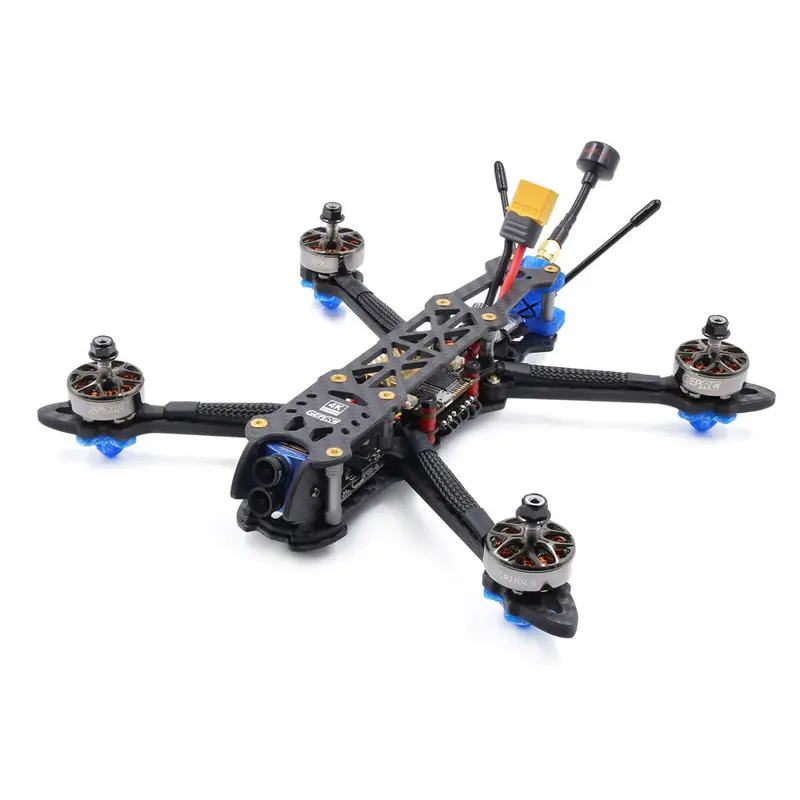

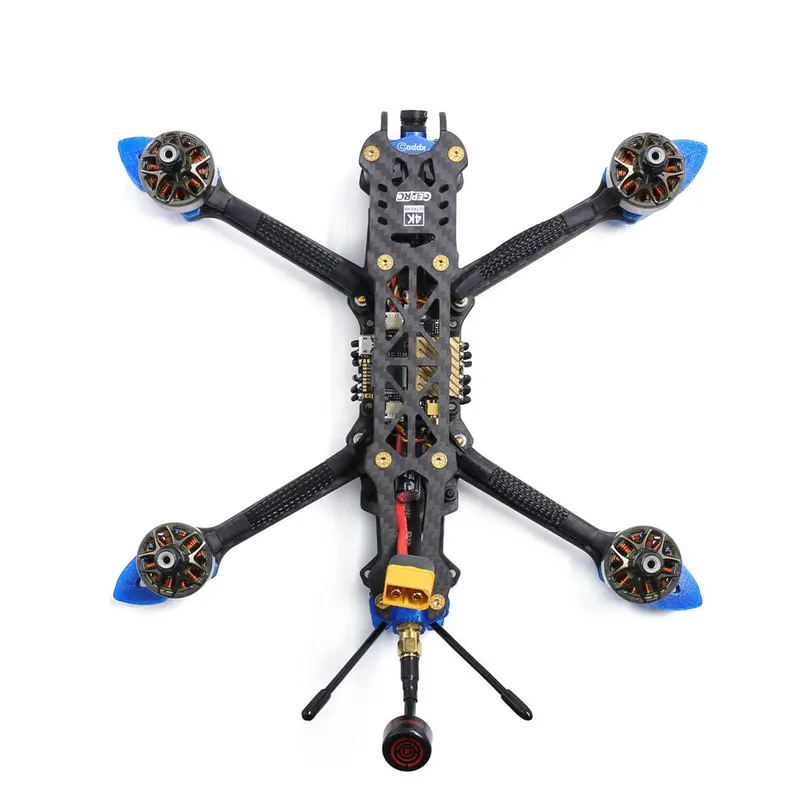

Geprc Mark4 4K 224mm Span F7 4S 5 Inch FPV Racing Drone PNP BNF w/ Caddx Tarsier 4K V2 Camera
Click here to buy 6S Version.
Overview: MARK4 4K is a FPV Quadcopter with high configuration.
It is equipped with 4K Tarsier V2 Camera of Caddx, and the highest 4K 30fps recording.
The flight controller use SPAN-F722-VTX, dual gyroscope ICM20689(SPI) working on the same time.
Power with the use of the new design 2306.5 motor, and the new G5*4.3*3 Freestyle propeller,
the overall power control sense is stronger, more powerful. The Mark4 4K frame has been improved, No Propeller in view,no jelly. resulting in a clean picture.
The product includes Mark4 4K 3D printed parts and spare parts. Specification:
Brand Name: Geprc
Model: Mark4 4K
Item Name: 224mm Span F7 4S 5 Inch FPV Racing Drone
Weight:381g ( without battery )
| Mark4 4K Frame Kit ( Improved Version) |
Material: Full 3K Carbon Fiber Wheelbase: 224mm Size:138*176mm Mounting Holes: 30.5*30.5mm/20*20mm Arms Plate Thickness: 5mm Side Plate Thickness: 2.5mm Top Plate Thickness: 2.5mm Bottom Plate Thickness: 2.5mm Protect Plate Thickness: 2mm |
| SPAN F7 Dual Gyro Flight Controller AIO VTX ( F722-VTX Stack ) |
MCU: STM32F722RET6 IMU: 2x ICM20689(SPI) BlackBox: 32Mb onboard Flash OSD: BetaFlight OSD w/ AT7456E chip Baro: BMP280 BEC Output: 5V@2A Integrated LC Filter Firmware target: EXF722DUAL Size:36x36mm board, φ4mm with Grommets φ3mm |
| Onboard 5.8G 48CH 600mW VTX | Channel: 48CH Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 600mW Connector type: MMCX Connector Traditional button IRC Tramp protocol |
| 50A BLheli_32 4in1 ESC ( F722-VTX Stack ) |
MCU: STM32FO51K86(32bit 48mHz) Continuous Current: 50A Peak Current: 55A (5S) Current sensor: YES Telemetry: Supported Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot Firmware Version: GEPRC-BL32-4IN1 Input Voltage: 3-6S Lipo |
| Geprc G5x4.3×3 5043 3-Blade Propeller | Brand Name: Geprc Item Name: 5043 3-Blade Propeller Color: Transparent Blue Quantity: 2 CW & 2 CCW |
| Geprc GR2306.5 2450KV 4S Motor | Configuration: 12N14P Stator Diamter: 23mm Stator Length: 6.5mm Shaft Diameter: 4mm Motor (Dimension: Φ28.2*29.2mm (Dia.*Len)) Wire AWG: 20AWG Weight(g):31g (not include wire) |
| Caddx TARSIER 4K V2 FPV Camera | FOV: 4K F2.8, FOV150°16/9), FPV FOV165°(4/3) Lens: DUAL Lens F2.8/12Mega Audio: DUAL DIGATIL MIC CPU: Dual core dual system Sensor: 12M sensor,1/1.8INCH 1/2.9INCH Main Resolution: 4K/30fps 16:9 2.7K/60fps 4:3 1440P 60fps/30fps 4:3 1080p/90fps,60fps,30fps 16:9 720P120fps 16:9 CAMERA Bitrate : 50kbps/66kbps Video System: NTSC/PAL ISO:OFF/100/200/400/800/1600 ANTI-SHAKE:Hardware anti-shake Scene Mode: Auto/Personage/Scenery/Defog Dimension CAMERA: 19x20mm / DVR:29x29mm(HOLE:20x20mm) Weight : 18g |
| Optional Receiver | PNP Version: Without Receiver Frsky XM+ Receiver/ Frsky R-XSR Receiver/ Flysky A8S V2 RX / TBS Nano SE RX |
| Lipo Battery ( NOT Included) | Recommend 4S 1300mAh-1800mAh Lipo Battery |
Package Included:
1x Geprc Mark4 4K 224mm 4S FPV Racing Drone
