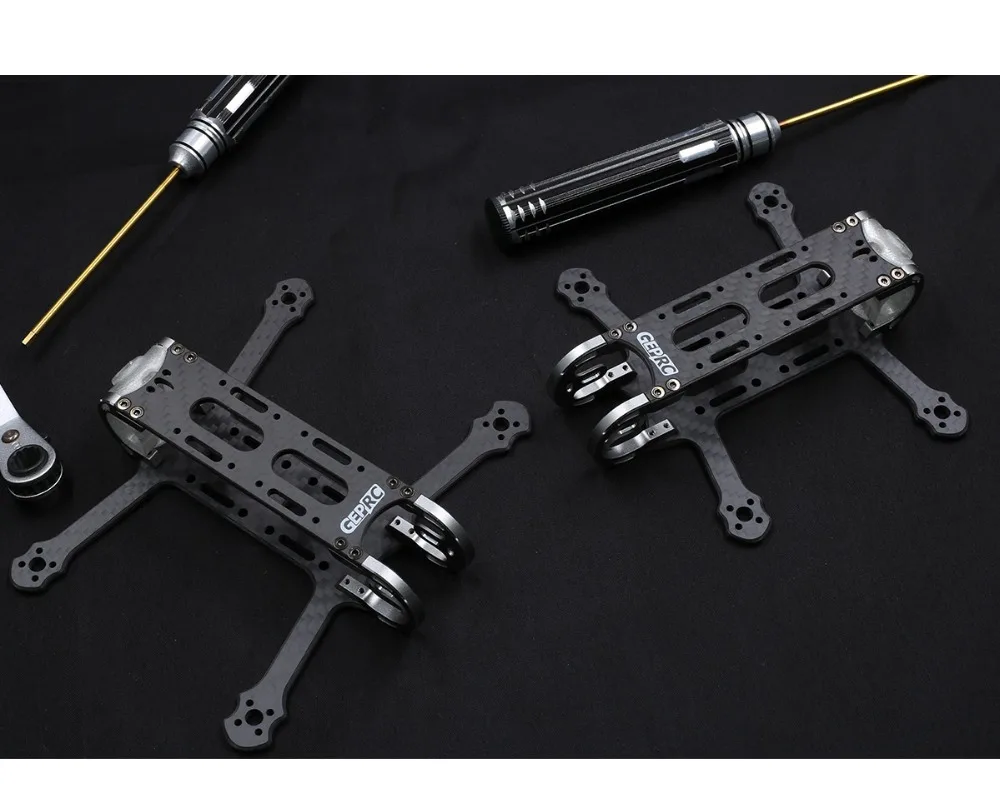

GEPRC CX-Series FPV Drone Frame Kits – 145mm (3-inch) and 115mm (2-inch) Carbon Fiber Options with Accessories

Description

GEPRC GEP-CX series Drone Frame Kit 145mm 3 Inch Frame/ 115mm 2 Inch Tiny Frame Kit & CX frame accessaries for FPV Racing Drone

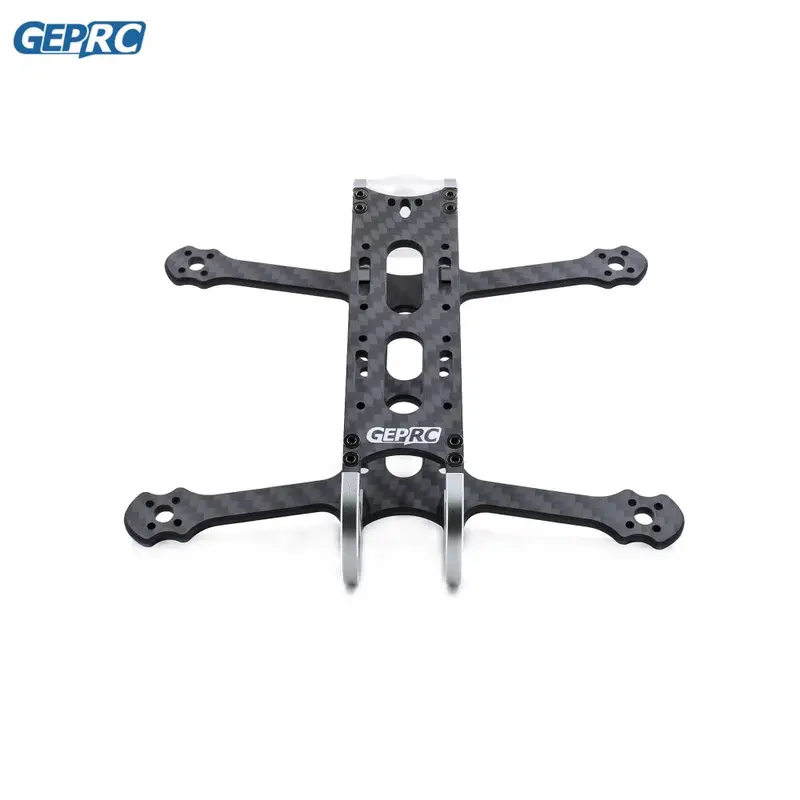

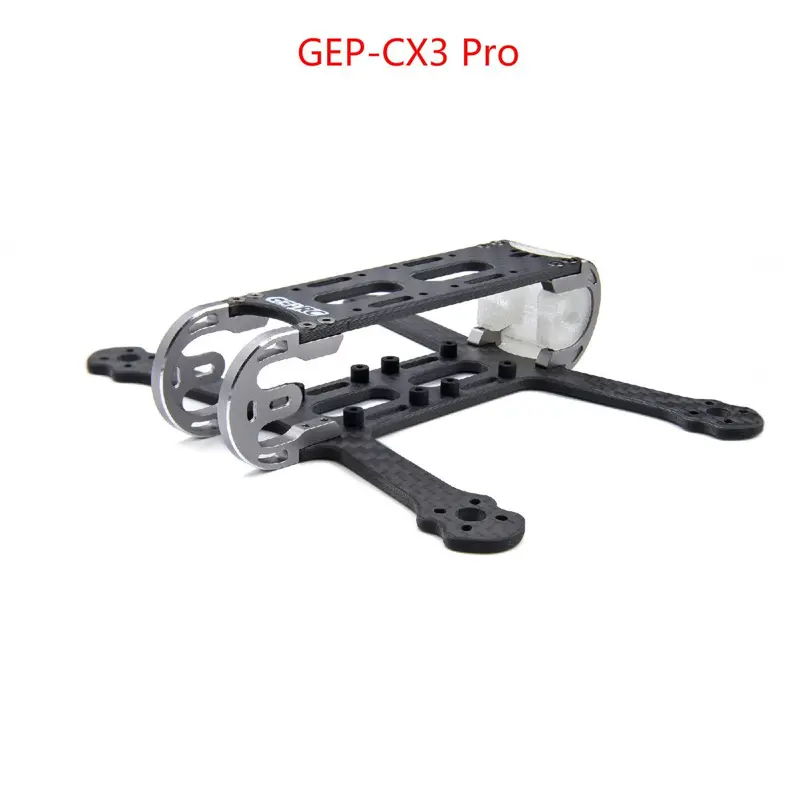

GEP-CX3 Pro Specifications:

• Frame type: GEPRC GEP-CX3 Pro
• Propeller: 3inch
• Weight: 40g
• Top plate: 3mm
• Bottom plate: 3mm

High precision 7075 aluminum alloy

Features:

1. Minimalist design,Delicate frame
2. Designed for the Runcam Split Mini camera
3. Full 3K Carbon Fiber airframe,durable in crashing
4. Beautifully finished chamfered edge
5. High precision 7075 aluminum alloy Camera protection
6. Electronic installation position all shock absorption processing
7. One piece 3D printing module for antenna and rear LED

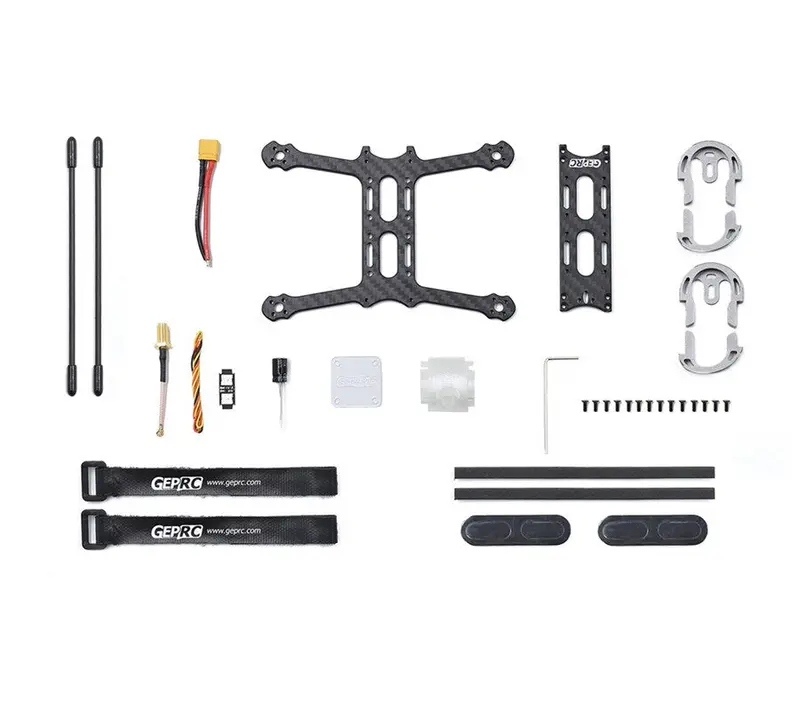

Includes:

• 1 x 7075 Aluminum Camera Protector

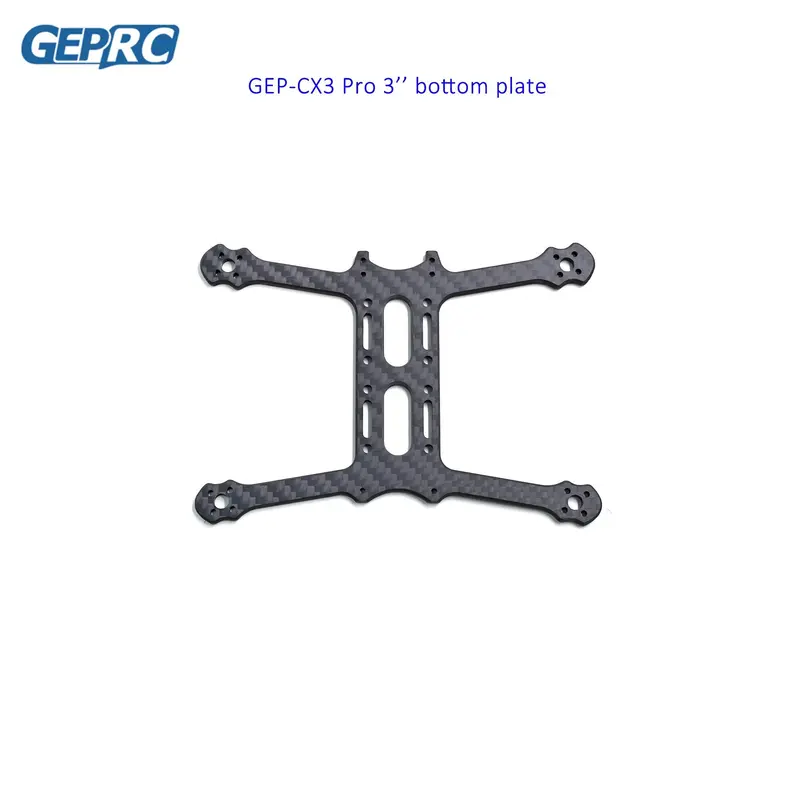

• 1 x 3mm Bottom plate
• 2 x 3mm Top plate
• 1 x 1mm receiver plate
• 14 x M2*6  YFS Button Screw
• 1 x LED bright LED tail lights
• 1 x 35V Cap
• 2 x Battery magic tape
• 1 x XT30
• 1 x 5.8g Antenna tieline
• 2 x 4gAntenna fixed tube
• 2 x Lipo silicone Pad

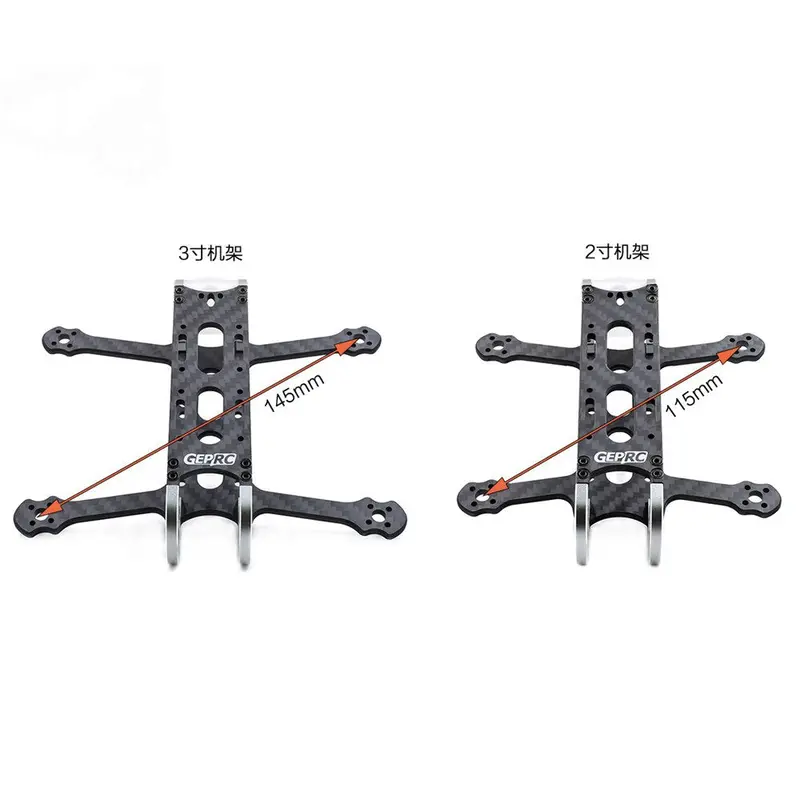

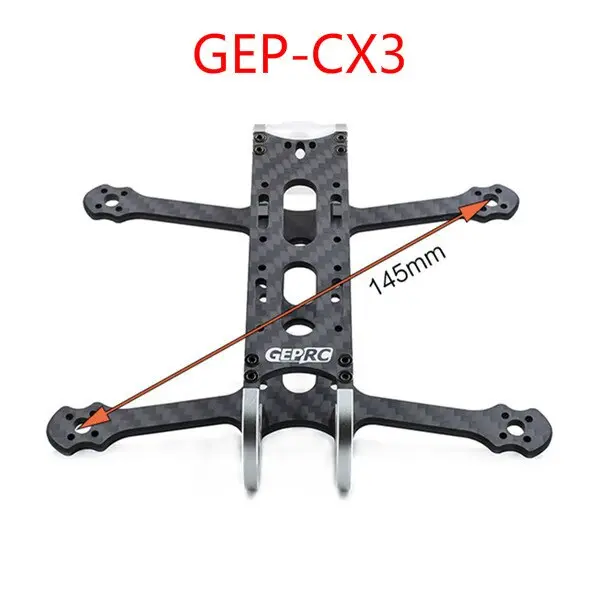

  GEP-CX3 product specifications: Brand Name: GEPRC Product Name: Little Swan Cygnet Rack model: GEPRC GEP-CX3 Wheelbase: 145mm Maximum support paddle: 3 inches Roof thickness: 3mm Low plate thickness: 3mm CNC: High precision CNC 7075 aluminum Weight: 37g   CX3 recommended configuration: Flight Control: F4/F3 Motor: 1106/1107/1108/1205/1206 ESC: 15A-28A Propeller: 3inch Battery: 3S 550mAh ~ 4S 650mAh   GEP-CX2 product specifications: Brand Name: GEPRC Product Name: Little Swan Cygnet Rack model: GEPPC GEP-CX2 Wheelbase: 115mm Maximum support paddle: 2 inches Roof thickness: 3mm Low plate thickness: 3mm CNC: High precision CNC 7075 aluminum Weight: 36g   CX2 recommended configuration: Flight Control: F4/F3 Motor: 1104 /1105/1106/1107 ESC: 10A-20A Propeller: 2inch Battery: 2S 550mAh ~ 3S 650mAh     Features: Minimalist design, smooth body The bottom plate and the top plate are 3mm thick, and the full 3K carbon fiber motherboard is strong and resistant to falling. Carbon plate is fully chamfered, smooth and not scratched 7075 aluminum alloy lens protection frame to protect the lens more comprehensive Stackable mini HD video recording device Cabin height 28mm, plenty of space The rear uses a combination of LED lights and 3DTPU prints to show cool effects at night.

Notes: Dear buyer friends, about CX frame accessaries, if you need other parts of accessary, welcome contact us.

Package included:









8867423839297104
