Description
Specification: Model: FX892T Frequency: 5.8G band; A, B, E, F, R 5 frequency groups, 37 transmission channels Day interface: MMCX RF impedance: 50 Ohm RF output power: PIT, 25mW, 200mW, 600mW, 1000mW Input power: 7-28VDC Current consumption: 200mA@12VDC@25mW / 300mA@12VDC@200mW 380mA@12VDC@600mW / 480mA@12VDC@1000mW Operating mode: button operation, SmartAudio, intelligent control Input video impedance: 75 Ohm Input video amplitude: CVBS 0.8 – 1.2 v Video format: NTSC/PAL Size: 36mm * 36mm * 7mm Weight: 8.3g (without antenna) Indicator light description: Channel indicator light (red) : 1 flicker means CH1 1 Constantly bright means CH2, 2 Constantly bright means CH3, 1, 2 Constantly bright means CH4, 3 Constantly bright means CH5 1, 3 Constantly bright means CH6 2, 3 Constantly bright means CH7 1, 2, 3 Constantly bright means CHE
Frequency group indicator light (blue) : 4 normally bright means frequency group A; 5 normally bright means frequency group B 4, 5 normally bright frequency group E 6 normally bright frequency group F 4, 6 normally bright frequency groups R
Power indicator (red blue): 1, 4 normally bright is 25mW 1, 2, 5 normally bright is 200mW 1, 3, 6 normally bright is 600mW 1, 2, 3 normally bright are 1000mw 4, 5, 6 normally bright is PIT
Click the button to switch frequency points: Long press the button for 2 seconds, release the button when the frequency group indicator flashes,
switch frequency group, click again to switch to group t-5 Long press the button for 3 seconds to enter the switching power mode,
and the power indicator flashes. At this time, release the button, click the button to switch power, and automatically save and exit after 4 seconds

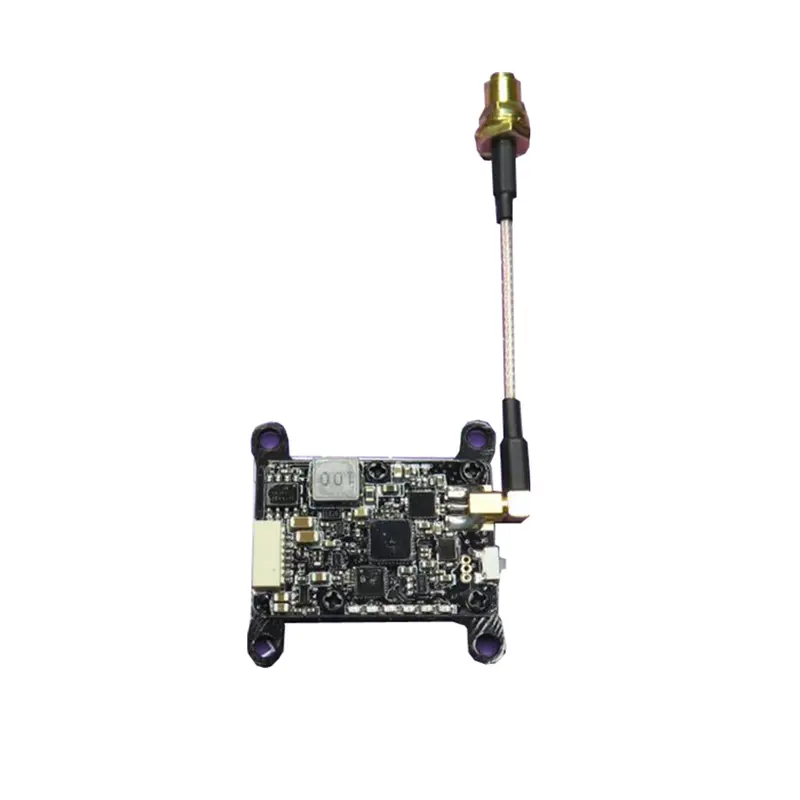

Package Included: 1 x FXT FX892T ARES 5.8G 37CH 25/200/600/1000mW Adjustable FPV Transmitter Support Smart Audio/PIT Mode MMCX
