FrSky YAAPU Telemetry Converter Cable – Pixhawk to Taranis X9D+, QX7, Jumper T16, R9 Slim+, X8R, XSR, R9M, X4R Smart Port Adapter

Description

Package included:

Telemetry converter Cable * 1 and other adaptor cables



Features:

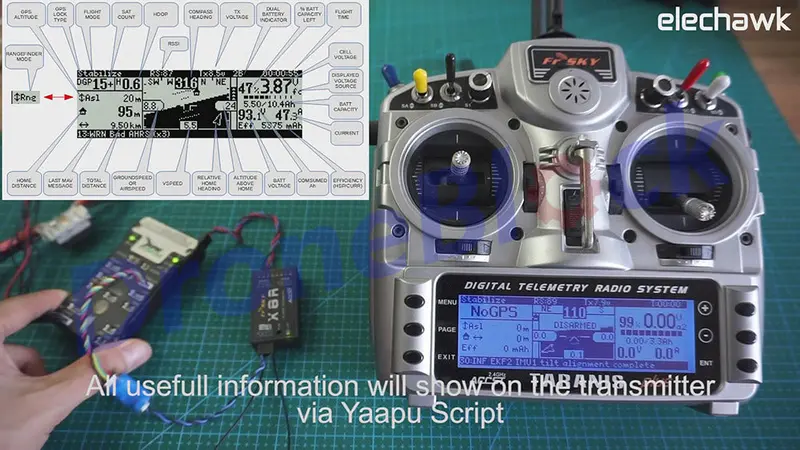

This cable can converter FrSky telemetry from your flight controller(Pixhawk1, 2, 3, 4) to the receiver (R9 Slim+, R9, R9M, X8R, X4R, R-XSR, X6R, S8R, RX8R, X4RSB, XSR), and make you get all flight information on the display of the transmitter like Jumper T16,  Taranis X9D Plus QX7/X7S, Horus X10S X12S. you can run Yaapu Frsky Telemetry Script or other scripts like FlightDeck and LuaPilott.



Specification:

• length: 20cm

How to:

step1. Install script on your transmitter

step2. Set the protocol of the serial port to 10 ( passthrough FrSky telemetry) via mission planner

step3. Connect the Pixhawk and receive via this cable

step4. Discovery new sensor in your transmitter

step5. Running the Yaapu script in your transmitter

Reference resources:

https://github.com/yaapu/FrskyTelemetryScript

https://ilihack.github.io/LuaPilot_Taranis_Telemetry/

http://ardupilot.org/copter/docs/common-frsky-telemetry.html#common-frsky-equipment
