Description



Brand Name: FrSky

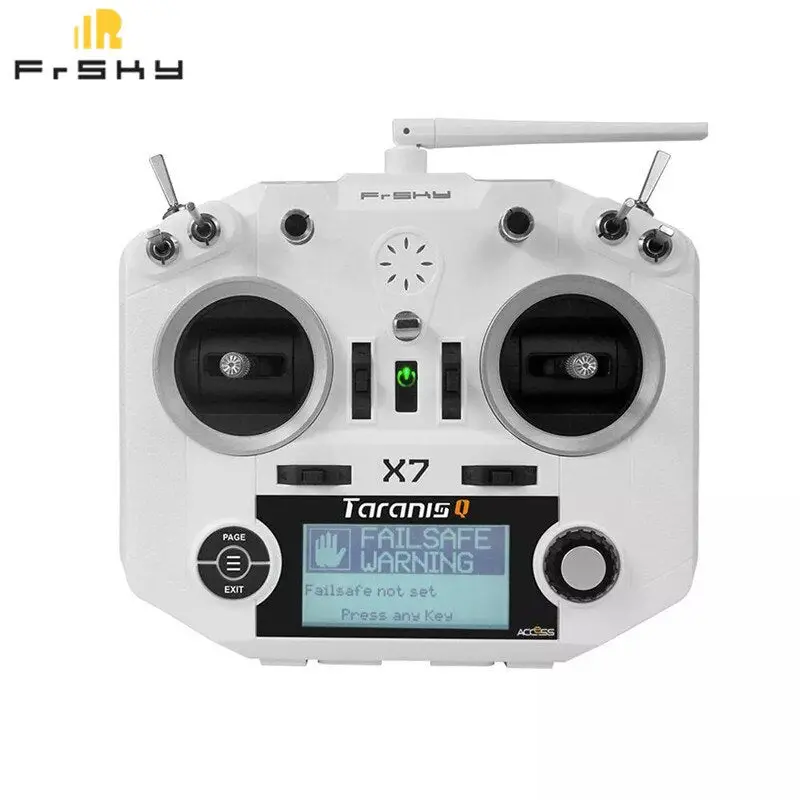

Item Name: Q X7 ACCESS Transmitter with R9M Module

Dimension: 202.2*189.4*96 mm

Weight: 1000g (without battery)
Model: Mode2
Version: FCC-(NON-EU), LBT-(EU) Version

Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels

Operating Voltage Range: 6.5V~8.4V

Operating Current: 160mA@7.2V typ

Operating Temperature: -10℃~60℃ (14℉~140℉)

Backlight LCD resolution: 128*64

Smart Port, Micro SD card slot, Mini USB Port and DSC Port

FEATURES:

Ergonomic and compact design

Open source operating system

Installed with ACCESS protocol

High-speed module digital interface

Supports spectrum analyzer function

Supports wired training function

Haptic vibration alerts and voice speech outputs

Easily accessible battery compartment

(*Batteries not included, adaptive with replaceable 18650 Li-ion batteries)
R9M 2019 Module:

OVERVIEW:	Specification:	Feature :
FrSky R9M 2019 telemetry module. FrSky R9M 2019 radio control system is FrSky long range system which works in 900MHz. The R9M 2019 module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below.	Brand Name: FrSky Item Name: R9M 2019 900MHz Module Vin Voltage Range: DC 6.5V~13V External Power Supply: DC 6.5V~13V Telemetry Interface: Smart Port Upgrade Interface: Smart Port ACCESS Protocol RF Operating Frequency: 868MHz/915MHz Compatibility R9 ACCESS series and TD series	– Long range, low latency and high precision RC system – Telemetry (25mW) /No Telemetry (500mW/200mW) mode – Smart Port enabled and support telemetry data transmission

Package Include:

1 x Q X7 ACCESS Transmitter

1 x R9M 2019 Module
