Brand Name: FrSky
Item Name: Q X7 ACCESS Transmitter with R9M Module
Dimension: 202.2*189.4*96 mm
Weight: 1000g (without battery)
Model: Mode2
Version: FCC-(NON-EU), LBT-(EU) Version
Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels
Operating Voltage Range: 6.5V~8.4V
Operating Current: 160mA@7.2V typ
Operating Temperature: -10℃~60℃ (14℉~140℉)
Backlight LCD resolution: 128*64
Smart Port, Micro SD card slot, Mini USB Port and DSC Port
FEATURES:
Ergonomic and compact design
Open source operating system
Installed with ACCESS protocol
High-speed module digital interface
Supports spectrum analyzer function
Supports wired training function
Haptic vibration alerts and voice speech outputs
Easily accessible battery compartment
(*Batteries not included, adaptive with replaceable 18650 Li-ion batteries)
R9M 2019 Module:
| OVERVIEW: | Specification: | Feature : |
| FrSky R9M 2019 telemetry module. FrSky R9M 2019 radio control system is FrSky long range system which works in 900MHz. The R9M 2019 module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below. |
Brand Name: FrSky Item Name: R9M 2019 900MHz Module Vin Voltage Range: DC 6.5V~13V External Power Supply: DC 6.5V~13V Telemetry Interface: Smart Port Upgrade Interface: Smart Port ACCESS Protocol RF Operating Frequency: 868MHz/915MHz Compatibility R9 ACCESS series and TD series |
– Long range, low latency and high precision RC system – Telemetry (25mW) /No Telemetry (500mW/200mW) mode – Smart Port enabled and support telemetry data transmission |

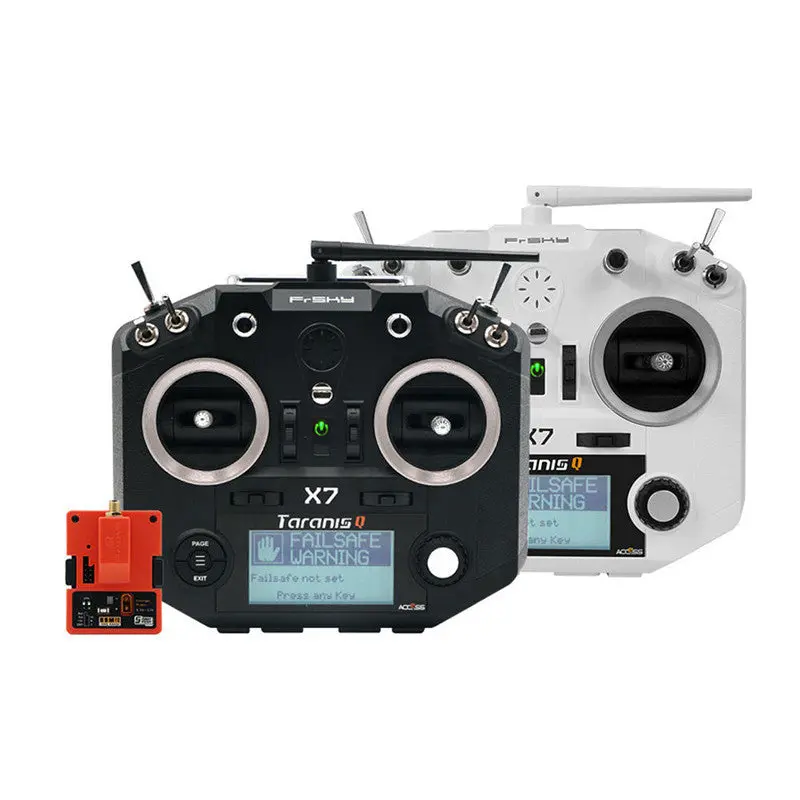

Package Include:
1 x Q X7 ACCESS Transmitter
1 x R9M 2019 Module
FRSKY Q X7 Specs Note;Newest version not have a battery holder for small battery ,you can directly use one battery to supply the power

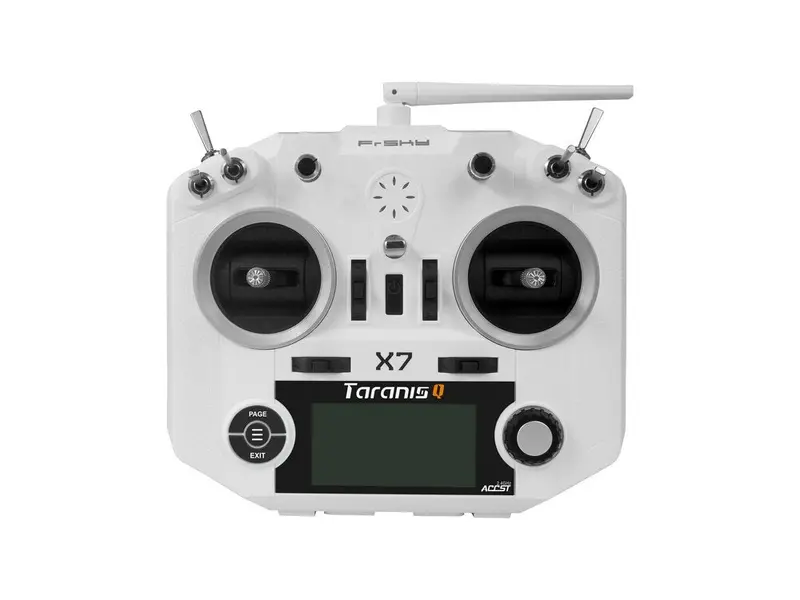

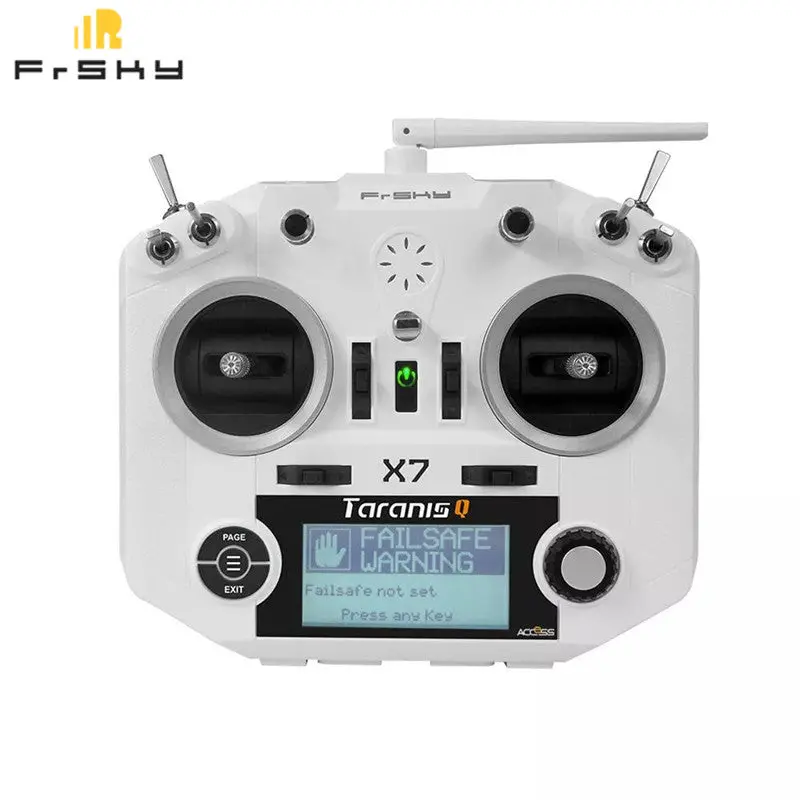

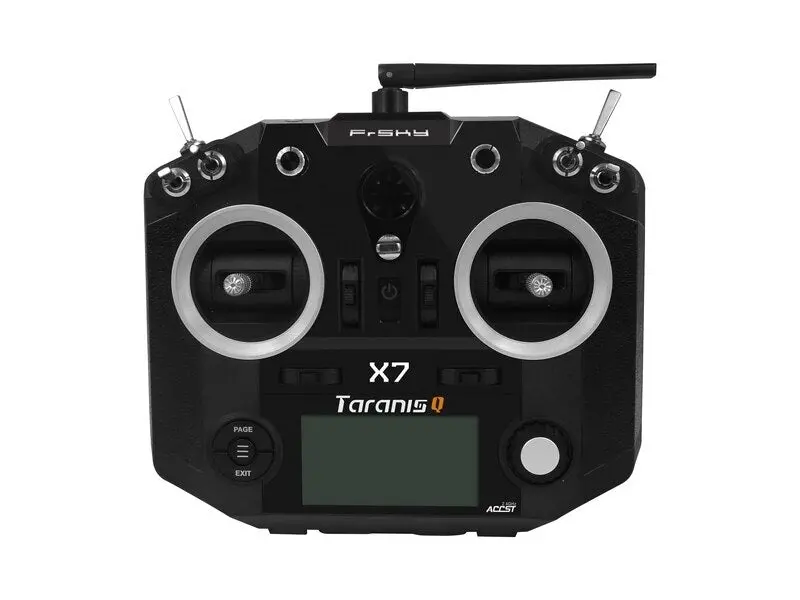

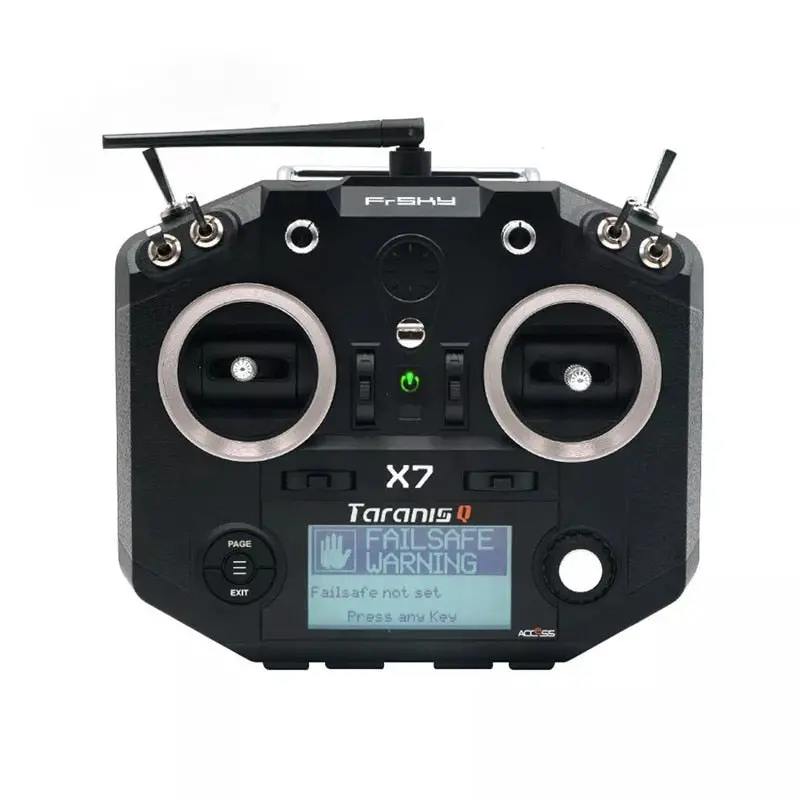

This is the latest powerful radio system from FrSky, the Taranis Q X7. This is a lightweight feature packed reliable system and it comes in black or white color scheme. The radio includes a Haptic Vibration Feedback System which provides an alternative feedback system to the voice and sound alert warnings. This 16 channel radio has smooth ball bearing gimbals and is loaded with six switches and two knobs. It runs on OpenTX and files can be shared with the popular X9D Plus. The MicroSD card slot offers unlimited model memory options , it also has a USB port for upgrades and to connect to a PC for adjusting settings. Both sticks come with spring loaded return to center sticks, this makes changing from mode 1 to mode 2 extremely easy to set through the menu and the stick can quickly be set to a stationary throttle by unscrewing four screws and removing a spring. One of the best features of the Taranis Q X7 is its full telemetry capability, as well as RSSI signal strength feedback. Wheel and center enter button makes navigating the backlit menu easy and precise. Equipped with an audio jack output and trainer port as well. And of course a module bay for use with JR-type modules that can be used with other protocol receivers and with the use of a FrSky XJT module. This radio can support up to 32-channels. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for precision flying. Overall this Radio has the features of more expensive transmitters at an unprecedented value. Specifications: Download the Manual Model Name: Taranis Q X7 Operating Voltage Range: 6~15V (2S, 3S Lipos are acceptable) Operating Current: 210mA maximum (both RF module and backlit are on) Operating Temperature: -10~45℃ Backlight LCD Screen: 128*64 outdoor readable LCD Model Memories: 60 (extendable by SD card) Compatibility: FrSky X series, D series and V8-II series receivers (plus other receivers if an external module is used) Features: Quad Ball Bearing Gimbals Receiver Match Audio Speech Outputs (values, alarms, settings, etc.) Antenna Status Detection and adjustment Real-time Flight Data Logging Receiver Signal Strength Indicator (RSSI) Alerts Super Low Latency Smart Port Supported Vibration Alerts Model configuration files compatible with TARANIS X9D Plus Note: It is the self-centering throttle mode.The throttle stick is always in the neutral position. It is the FCC version. Note: It comes without battery and Receiver Package Included: 1 x Taranis Q X7 1 x Manual 1 x Neck strap
