Description:
Brand Name:FlySky

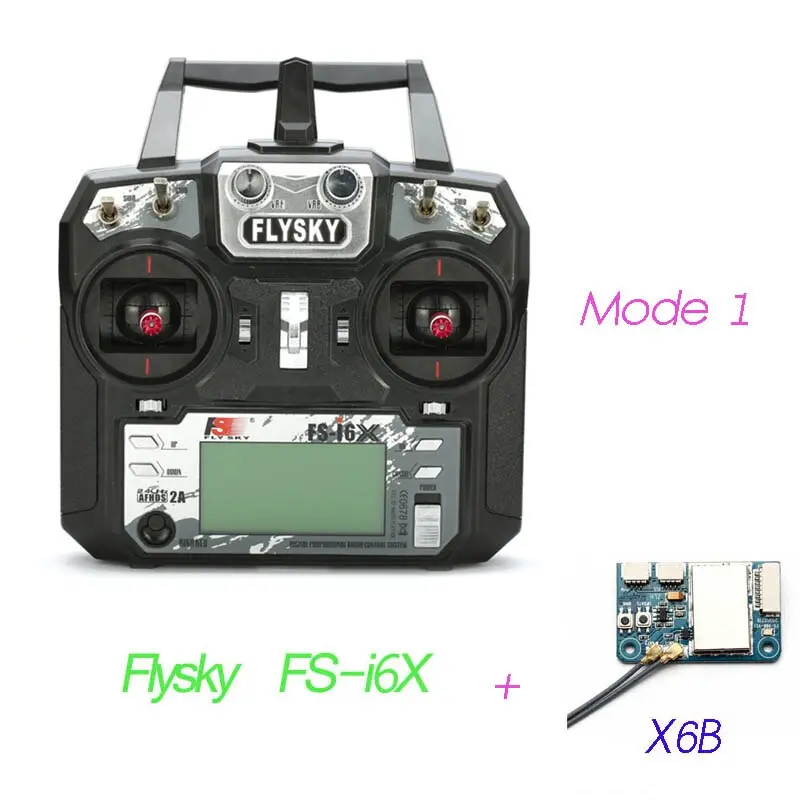

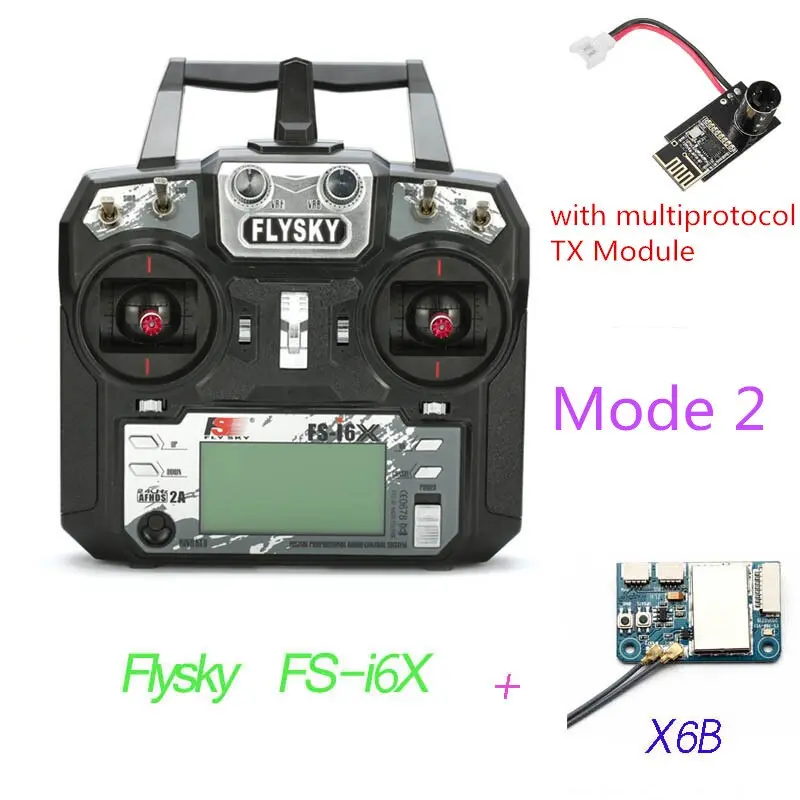

Optional type: FS-i6X + X6B receiver ( Mode 1 / Mode 2 )

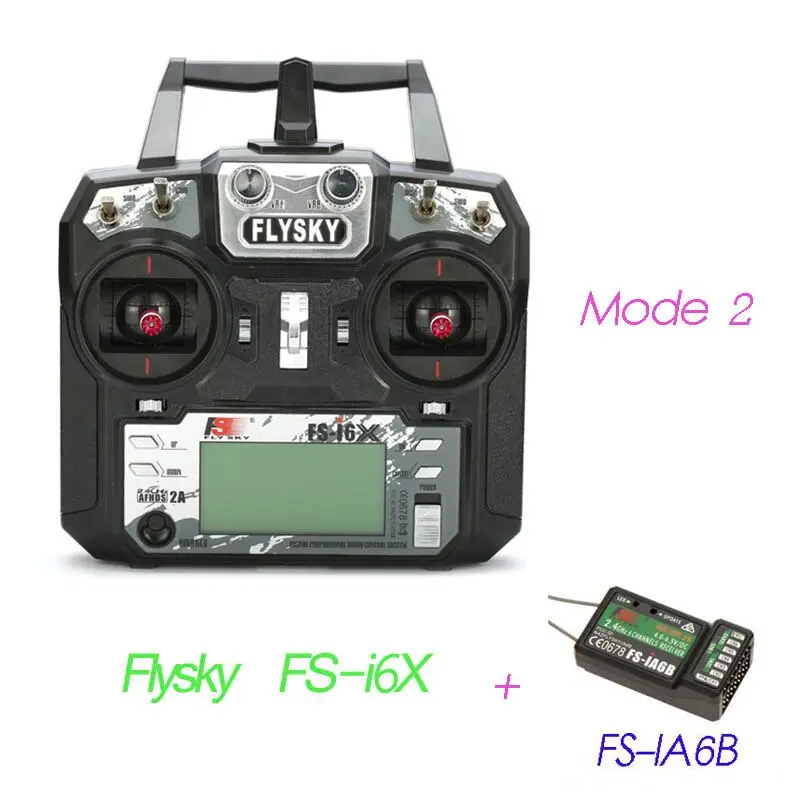

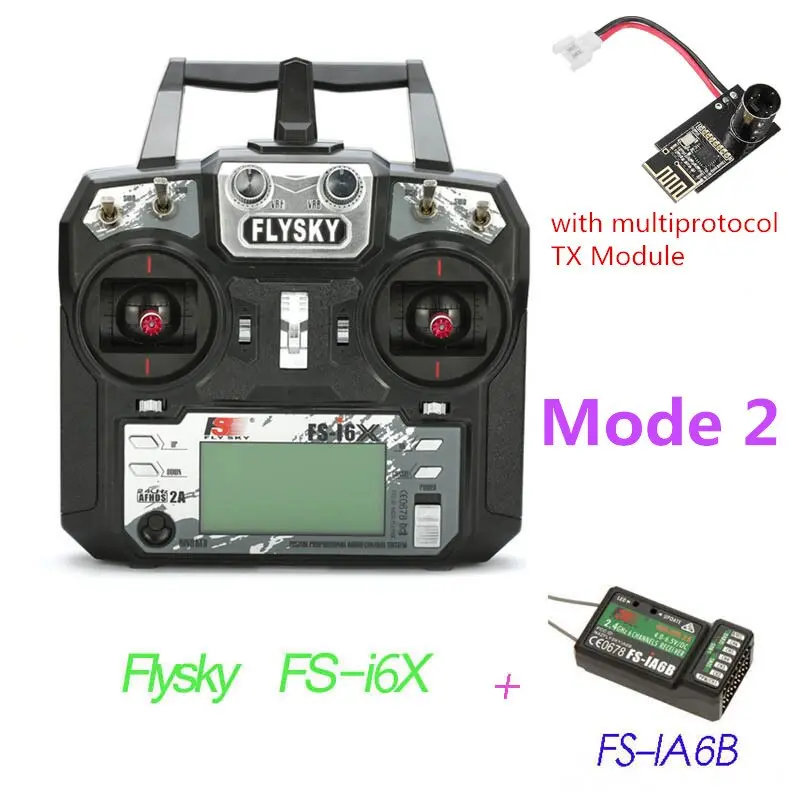

FS-i6X + FS-iA6B receiver

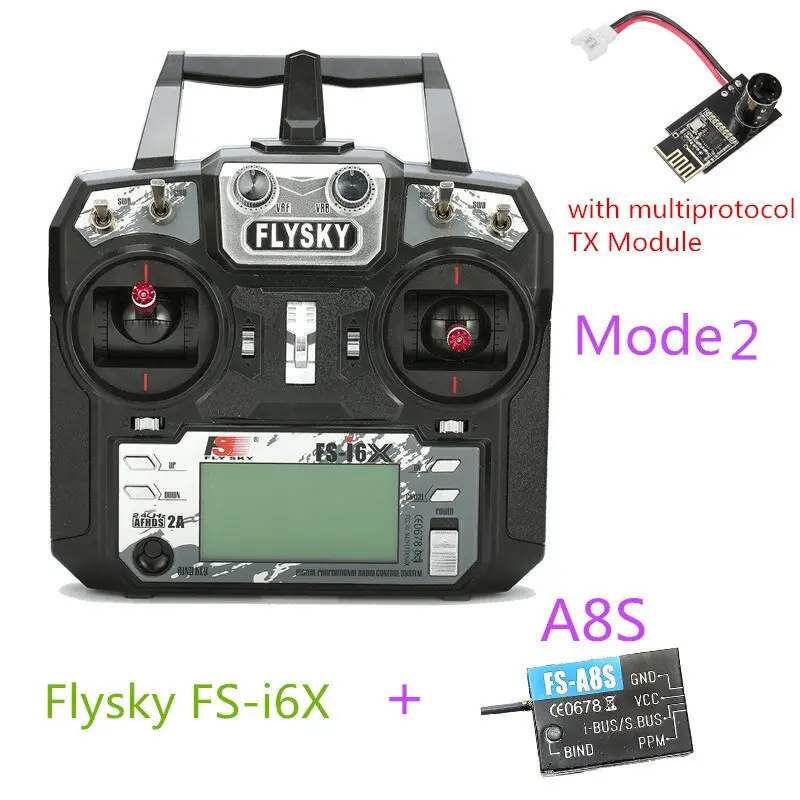

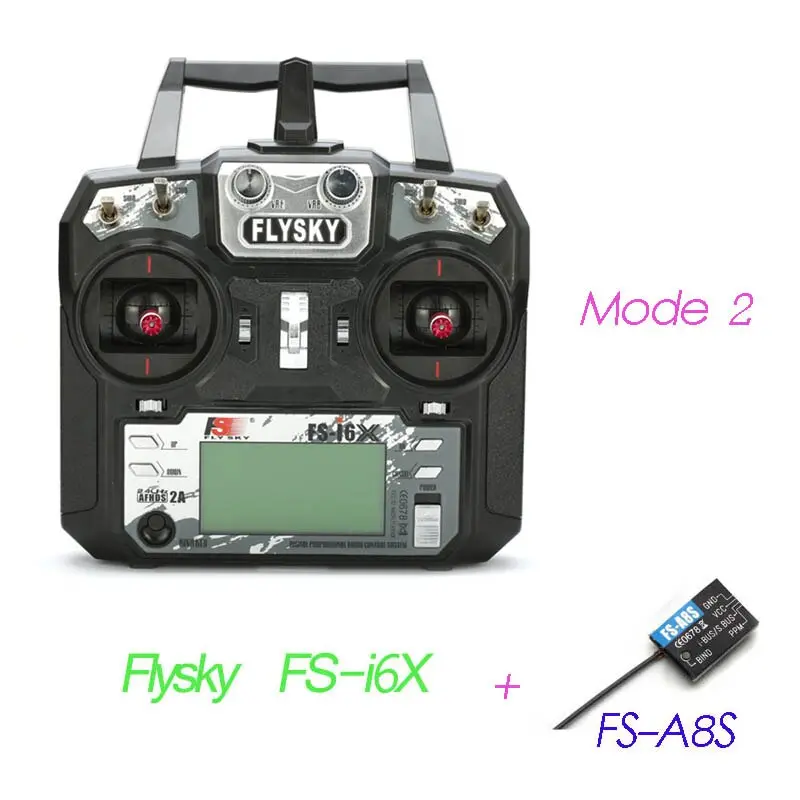

FS-i6X + FS-A8S receiver

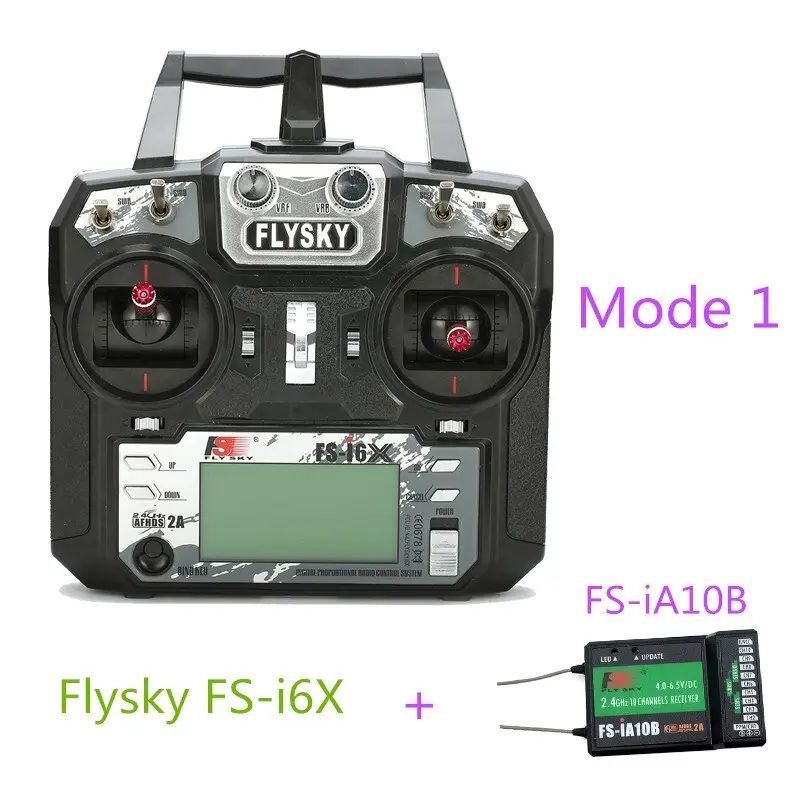

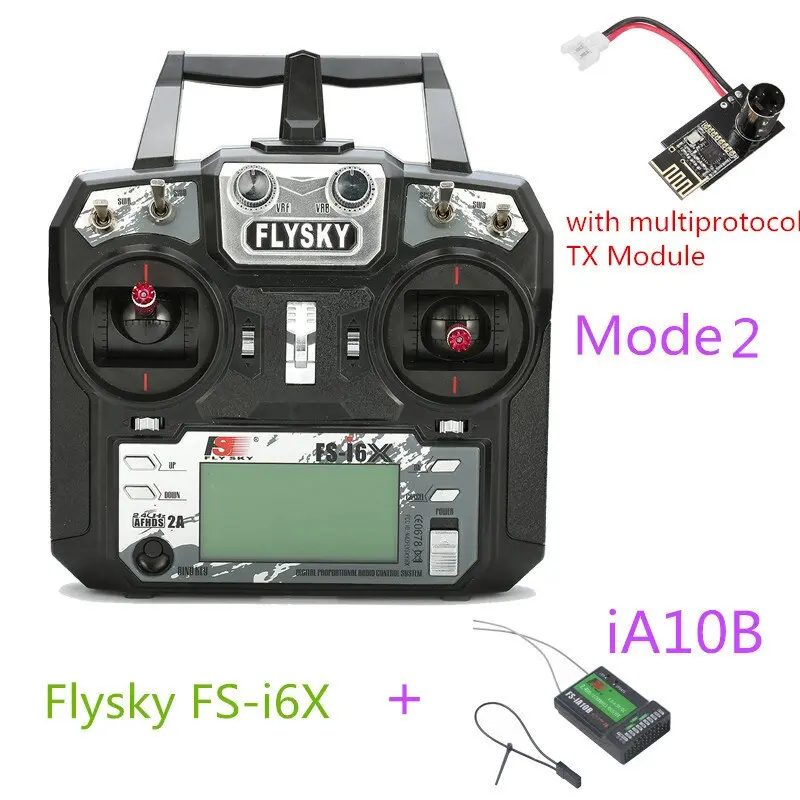

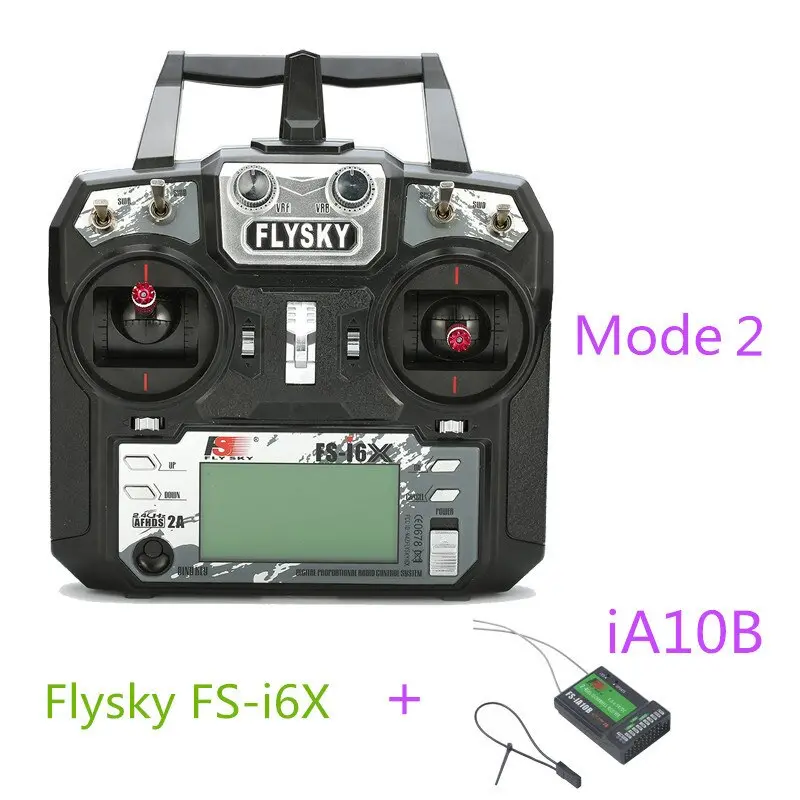

FS-i6X Transmitter with FS-iA 10B Receiver ( Mode 1 / Mode 2 Optional)

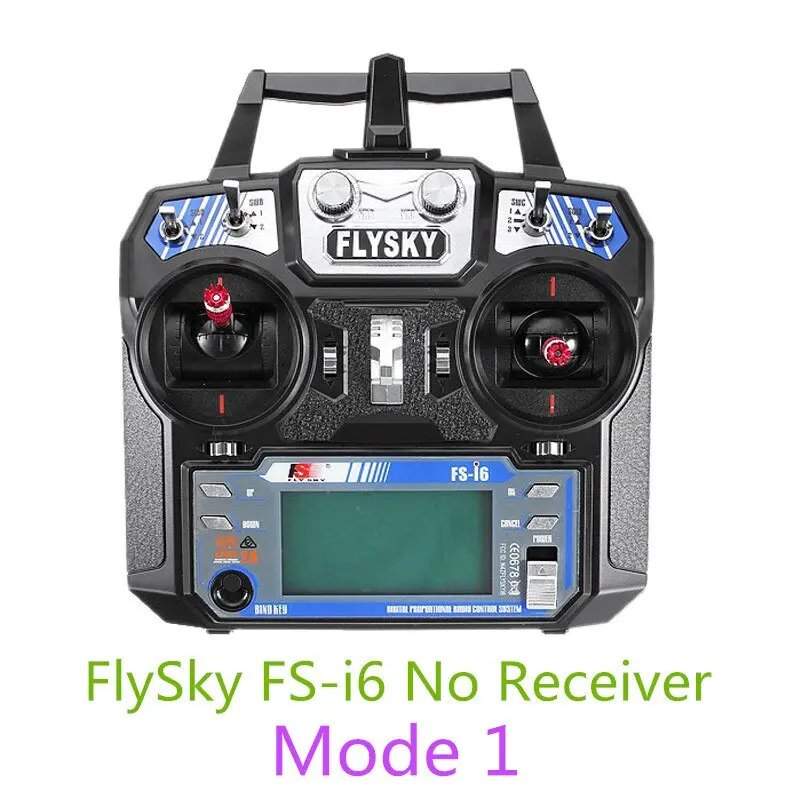

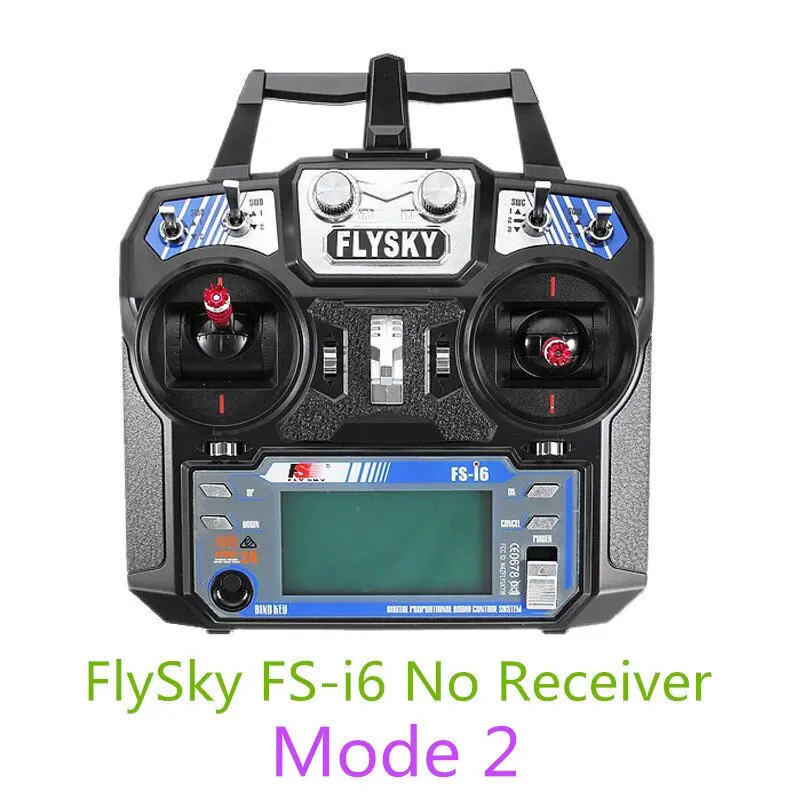

FlySky FS-i6 Transmitter Without Receiver

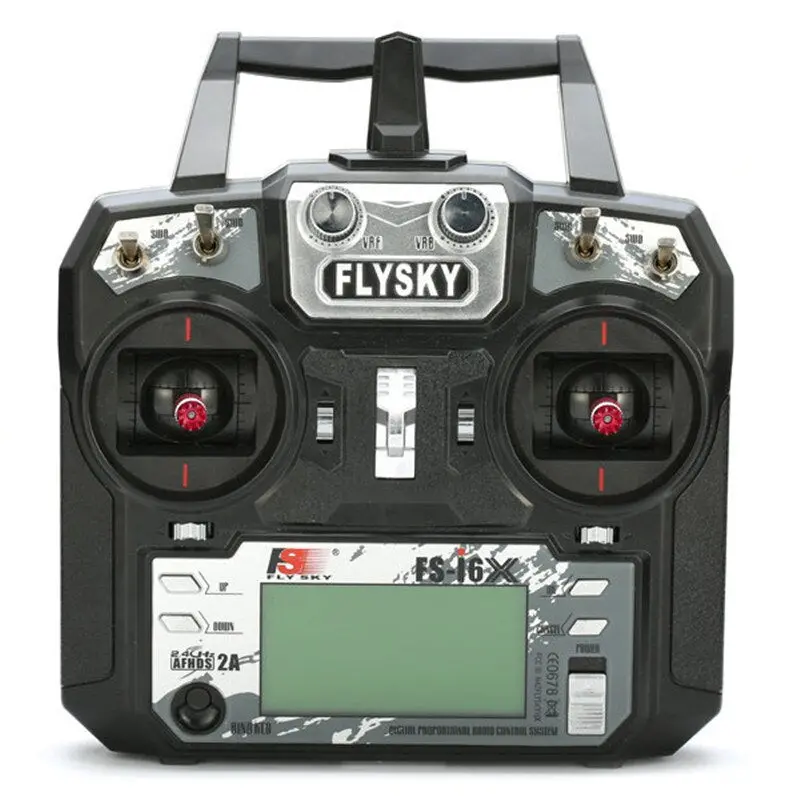

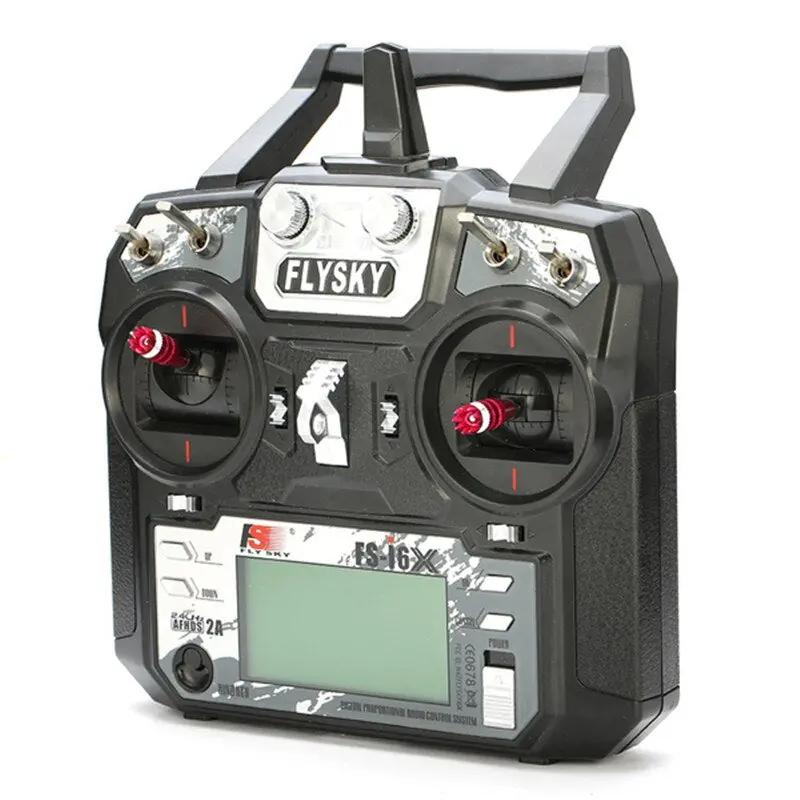

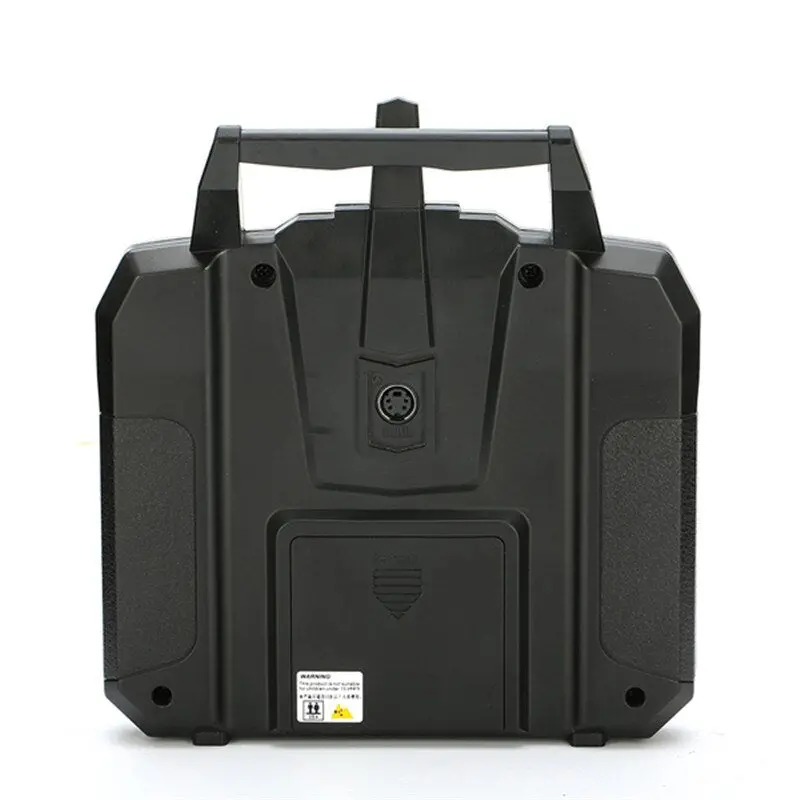

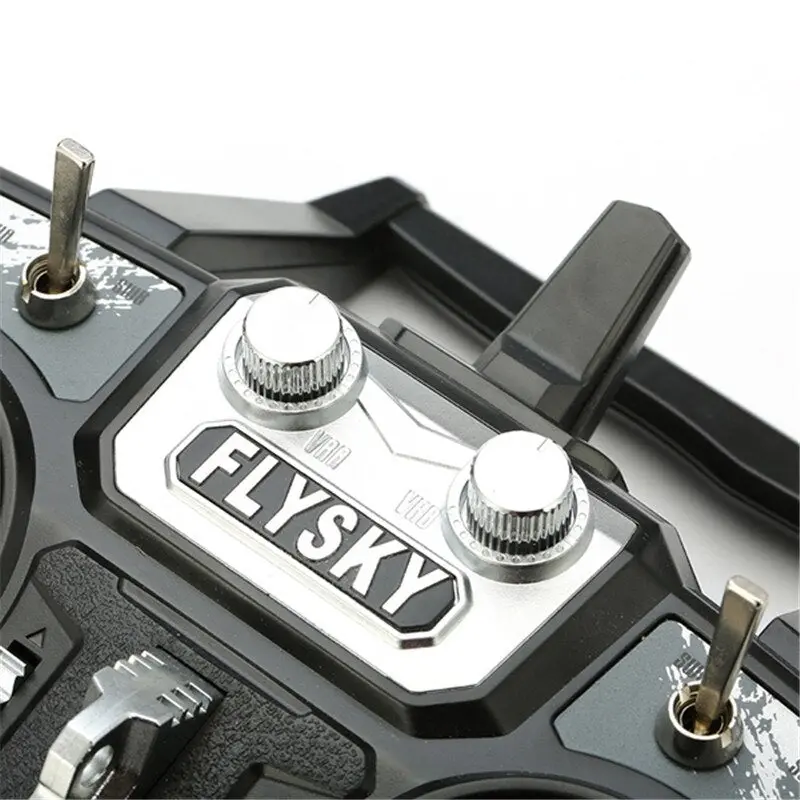

FS-i6X / FS-i6 RC Transmitter Specifications:
Channel: 6-10 (Default 6) Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.408-2.475GHz / 2.40-2.48GHz RF Power: < 20dBm RF Channel: 135 Bandwidth: 500KHz 2.4GHz System: AFHDS 2A and AFDHS Modulation Type: GFSK Stick Resolution 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Transmitter Weight: 392g Power: 6V DC 1.5AA*4 (Not Included) Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Color: Black Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Model Memories: 20 — FS-i6 RC Transmitter
Control Range: 500m — FS-i6 RC Transmitter
Package Size: 23.5×21.2×10.6cm — FS-i6 RC Transmitter
FS-i6X Transmitter Features: The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today. Bidirectional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support. Multi-channel Hopping Frequency This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters. Omni-directional Gain Antenna The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection. Unique ID Recgnition System Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation. Low Power Consumption The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-i6 Transmitter Features:
Works in the frequency range of 2.405 to 2.475GHz.This b a n d has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency b a n d . Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
X6B i-BUS Receiver Specifications: Brand Name: Flysky
Item: X6B i-BUS Receiver Channels: 6(PWM), 8(PPM), 18(i-BUS) Model Type: Multi-Totor RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135 RF Power: No more than 20 dBm RX Sensitivity: -95dBm 2.4GHz protocol: AFHDS 2A Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna) Power input: 4.0-8.4V On-line Update: Yes(Wireless)
Range: >300m Weight: 4.5g Size: 36*22*7.5mm i-BUS Port: Yes Certificate: CE0678, FCC ID: N4ZX6B00
FS-iA6B Receiver Specifications:
Item Name: FS-iA6B Channel: 6 Frequency Range: 2.4055–2.475GHZ Band Width Number: 140 Transmitting Power: ≤ 20dBm RF Receiver Sensitivity: -105dbm 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Encoding: GFSK Antenna Length: 26mm * 2 (dual antenna) Input Power: 4.0-6.5V DC Dimension: 47 x 26.2 x 15mm Weight: 14.9g Color: Black i-Bus Interface: Yes Data Acquisition Interface: Yes Model Type: Airplane / Glider / Helicopter Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
FS-A8S Receiver Specifications: Brand Name: Flysky Item Name:FS-A8S Receiver Channels: PPM 8CH, i-BUS 18CH Model type: Multi-rotor Frequency range: 2.408-2.475GHz Band width: 500KHz Band number: 135 RX Sensitivity: -92 dBm 2.4GHz system: AFHDS 2A Modulation type: GFSK DSC port: PPM/i-BUS/S.BUS Transfer method: FHSS Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS Antenna length: 26mm (Not including brass contacts) Input power supply: 4.0-8.4V Display method: LED No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Each channel data: depend on the transmitter Channel delay: <15mS Size: 20*14*5.3mm Weight: 1.2g Certificate: CE0678, FCCID: N45ZA8S00 Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
FS-iA10B Receiver Specifications:
Channels: 10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm (Dual Antenna)
Weight: 17.6g
Size: 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE0678, FCC
FS-i6X Transmitter User Manual, Click Here
X6B i-BUS Receiver Manual, Click Here
A8S i-BUS Receiver Manual, Click Here
Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X Flysky X6B i-BUS Receiver , Flysky FS-iA6B Receiver , Flysky FS-A8S receiver , FS-iA10B Receiver (Optional)
or
1 x Flysky FS-i6 transmitter
