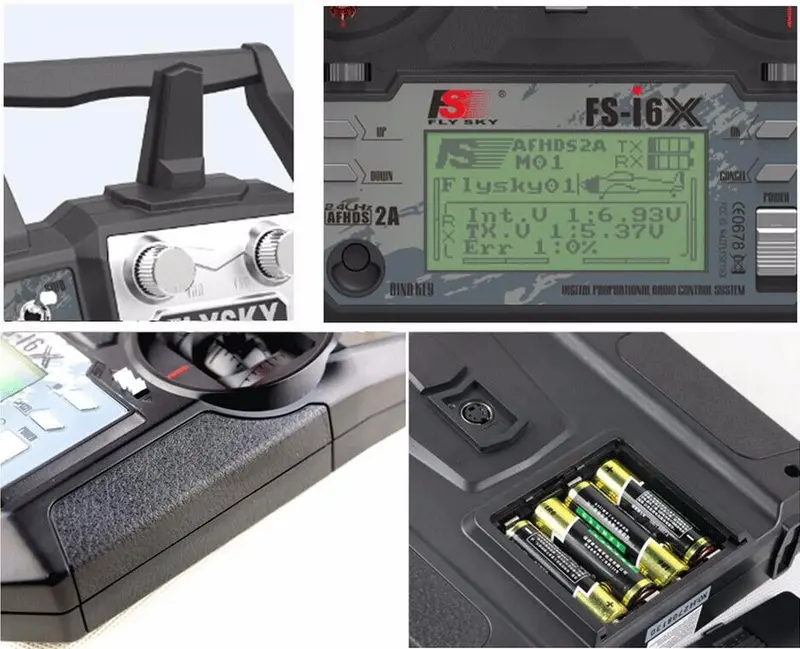

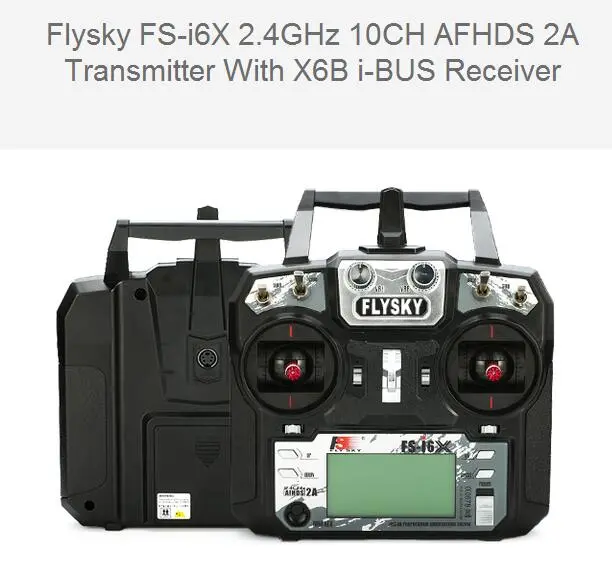

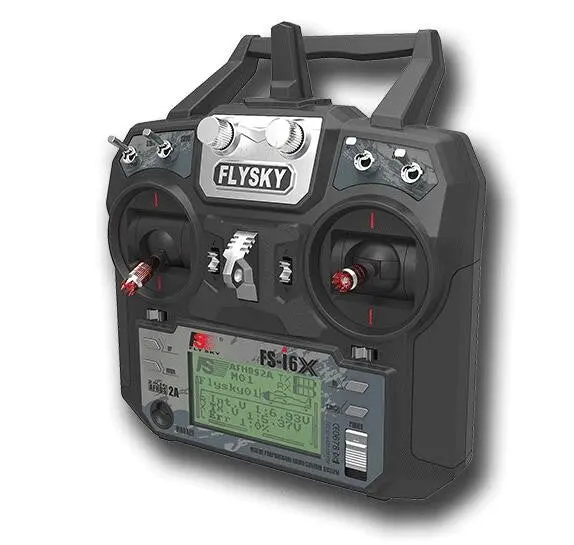

Flysky FS-i6X 10-Channel 2.4GHz AFHDS-2A Transmitter with Multiple Receiver Options – Full-Function RC Controller for Airplanes and Multirotors

Description

Description:

Brand Name:FlySky
FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)

Model Type: Fixed-Wing/Glider/Helicopter RF Range: 2.408-2.475GHz RF Power: < 20dBm RF Channel: 135 Bandwidth: 500KHz 2.4GHz System: AFHDS 2A / AFDHS Modulation Type: GFSK Stick Resolution 4096 Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power: 6V DC 1.5AA*4 Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

Features: The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today.   Bidirectional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.   Multi-channel Hopping Frequency This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.   Omni-directional Gain Antenna The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.   Unique ID Recgnition System Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.   Low Power Consumption The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.     X6B i-BUS Specifications:       Brand Name: Flysky Item: X6B i-BUS Receiver     Channels: 6(PWM), 8(PPM), 18(i-BUS)     Model Type: Multi-Totor     RF Range: 2.408-2.475 GHz Brand Wigth: 500KHz Number of bands: 135     RF Power: No more than 20 dBm     RX Sensitivity: -95dBm     2.4GHz protocol: AFHDS 2A     Modulation Type: GFSK Stick resolution: 1024 Low voltage alarm: Yes DSC port: PPM/PWM/i-BUS Antenna Length: 93mm (Dual Antenna)     Power input: 4.0-8.4V     On-line Update: Yes(Wireless) Range: >300m     Weight: 4.5g     Size: 36*22*7.5mm     i-BUS Port: Yes     Certificate: CE0678, FCC ID: N4ZX6B00     IA6 Specifications:   Nmber of channels:6 Model type: fixed-wing /glider/helicopter RF reciever sensitivity:-105dbm Modulation: GFSK System type:AFHDS2A/AFHDS Channel resolution:1024 steps Bind port:yes Power port;yes(vcc) Power:4.0-6.5VDC Weight:6.4g Antenna length:26mm Size: 40.4*21.1*7.35mm Color:black       IA6B Specifications:    Item Name: IA6B Channel: 6 Model type: fixed wing/helicopter/glider RF receiver sensitivity: -105dBm Modulation: GFSK System type: AFHDS2A/AFHDS Channel resolution: 1024 steps Bind port: yes Power port: yes( VCC) Power: 4V -6.5V DC Weight: 14.9g Antenna lenght: 26mm Size: 47.4*262.2*15 mm Certificate: CE ,FCC     FS-A8S Specifications: Brand Name:Flysky     Item Name:FS-A8S Receiver     Channels: PPM 8CH, i-BUS 18CH Model type: Multi-rotor     Frequency range: 2.408-2.475GHz     b and width: 500KHz     b and number: 135     RX Sensitivity: -92 dBm 2.4GHz system: AFHDS 2A     Modulation type: GFSK DSC port: PPM/i-BUS/S.BUS Transfer method: FHSS Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS     Antenna length: 26mm (Not including brass contacts)     Input power supply: 4.0-8.4V Display method: LED No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Each channel data: depend on the transmitter Channel delay: <15mS Size: 20*14*5.3mm     Weight: 1.2g     Certificate: CE0678, FCCID: N45ZA8S00      FS-IA10B Specifications:   Number of Channels: 10 Suitable models: Airplane / glider / helicopter Health Frequency range :2.4-2 .48 GHz Number of newspapers: 160 Transmitting power: not more than 20dBm Receiver sensitivity:-105dBm 2.4G modes: automatic frequency second generation digital system Encoding: GFSK Antenna length: 26 mm * 2 (dual antenna) Weight: 19.3 g Input power :4.0-6 .5 V DC Dimensions: 47 * 33.1 * 14.7 mm Color: Black Certification: CE0678, FCC i-BUS Interface: Yes Data acquisition interface: Yes

Package Included:

​
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter

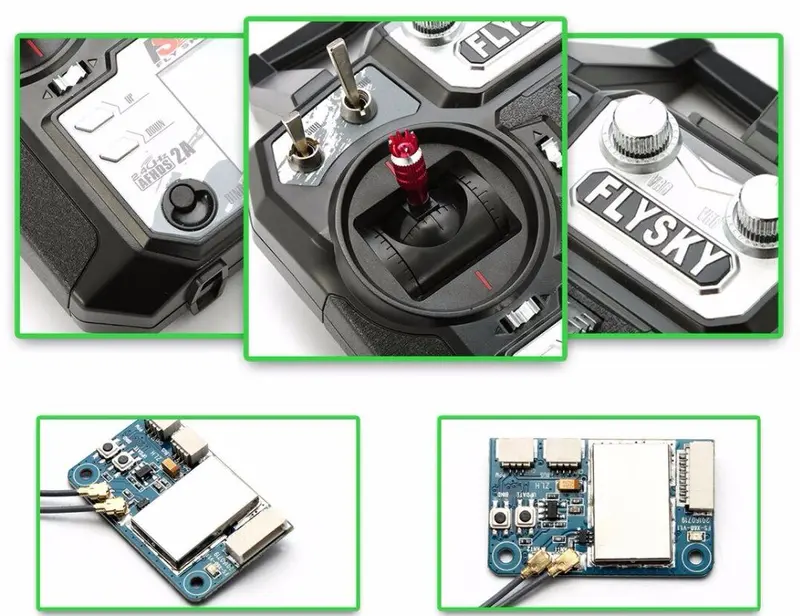

1X Flysky IA6 / A8S / IA6B / X6B / IA10B  Receiver (send as your choice)
