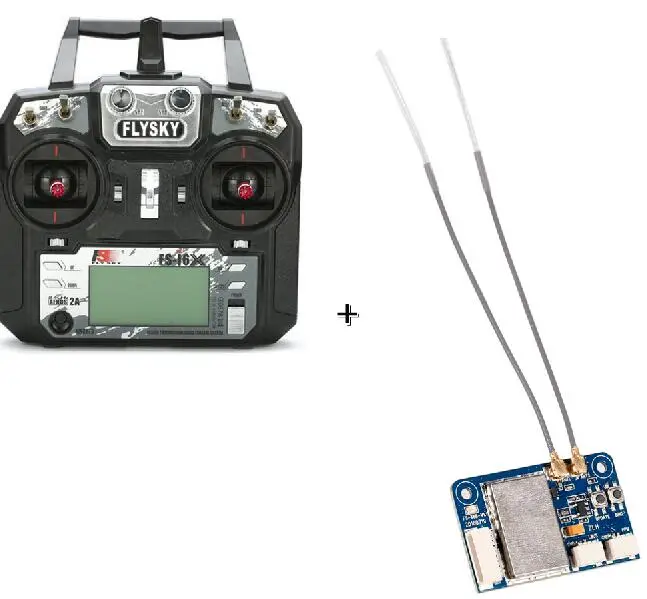

Flysky FS-i6X 10-Channel 2.4GHz AFHDS-2A Transmitter with FS-IA6B/IA10B/X6B/A8S Receiver – Mode 2 RC Airplane Controller

Description

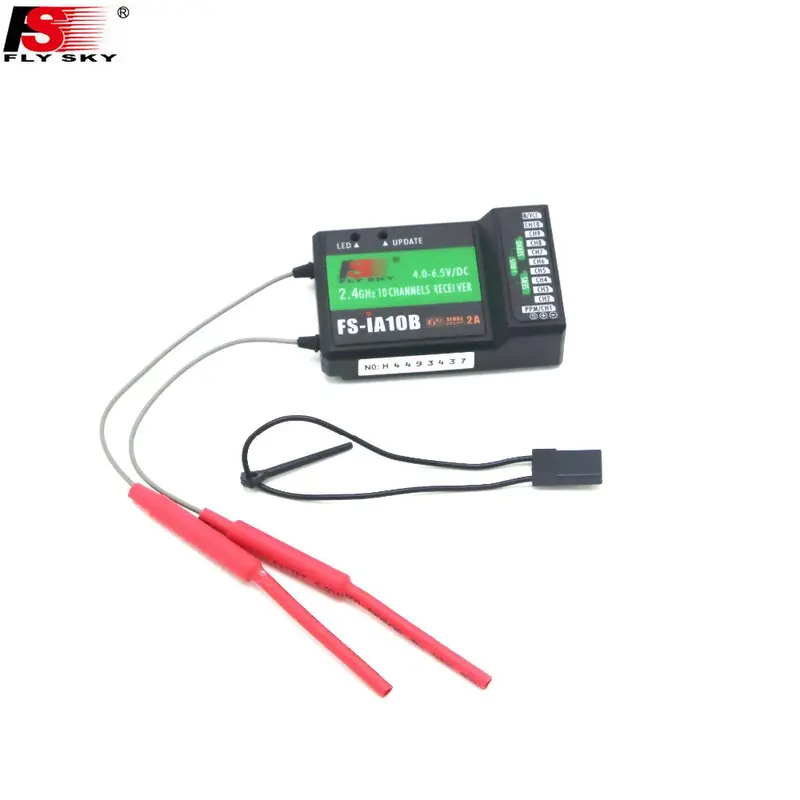

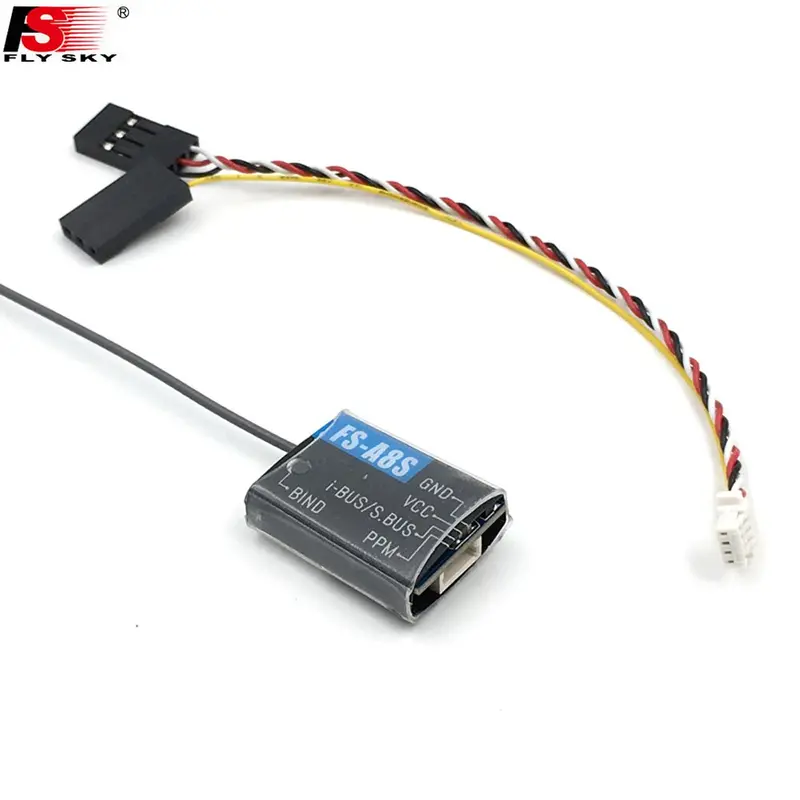

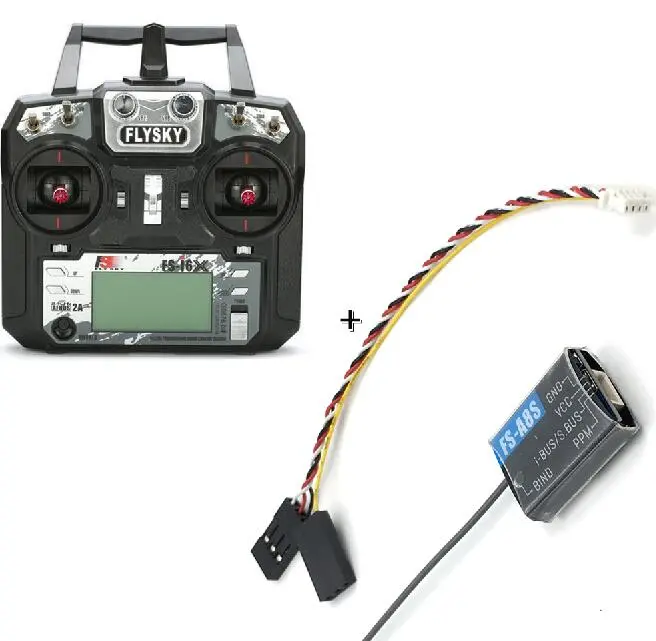

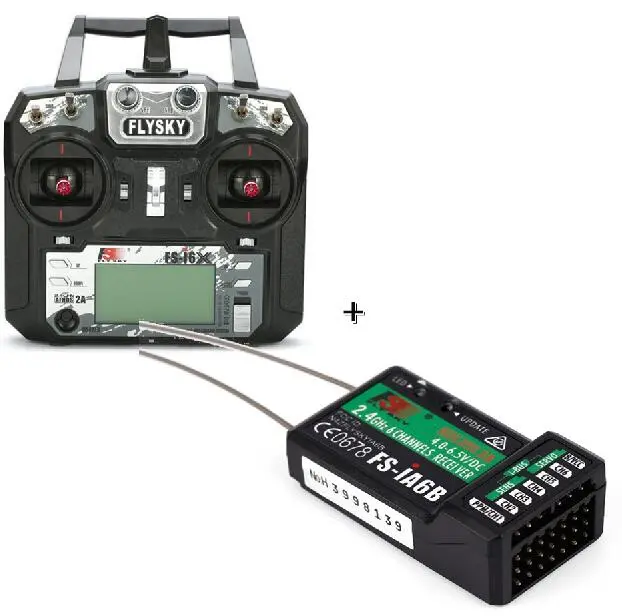

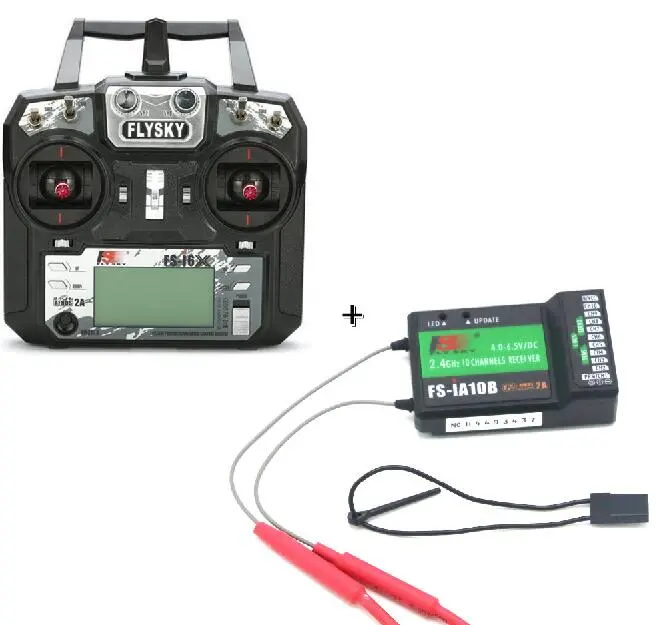

Flysky FS-i6X 10CH 2.4GHz Transmitter+FS-iA6B/FS-iA10B/FS-X6B/FS-A8S Receiver

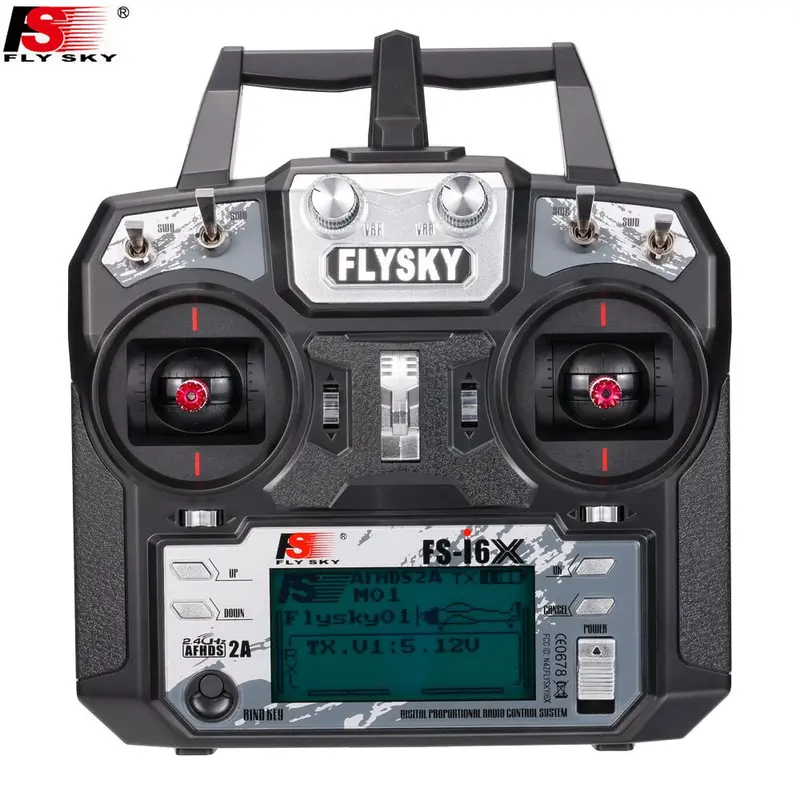

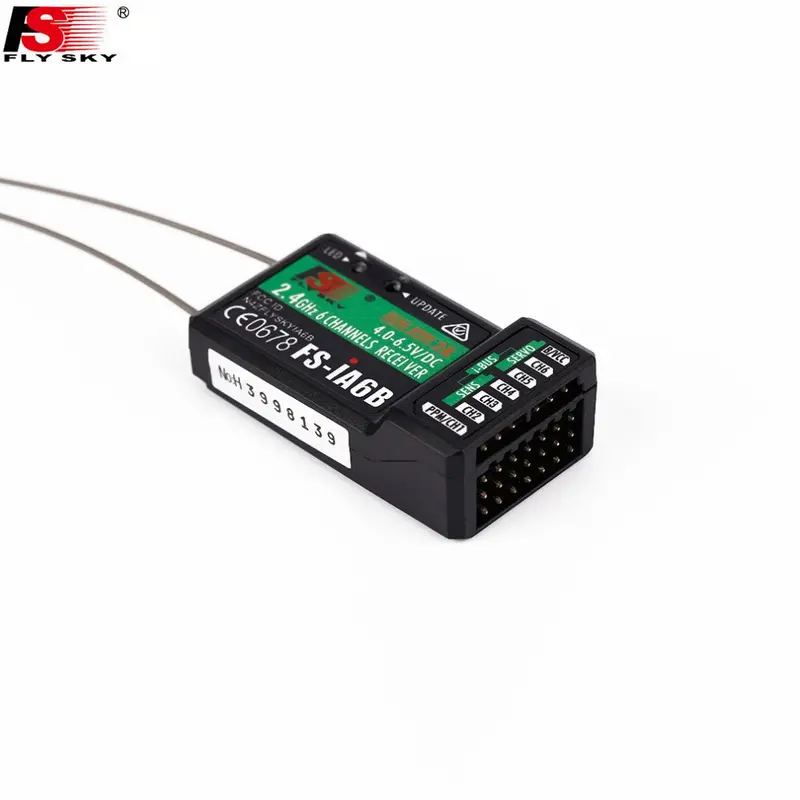

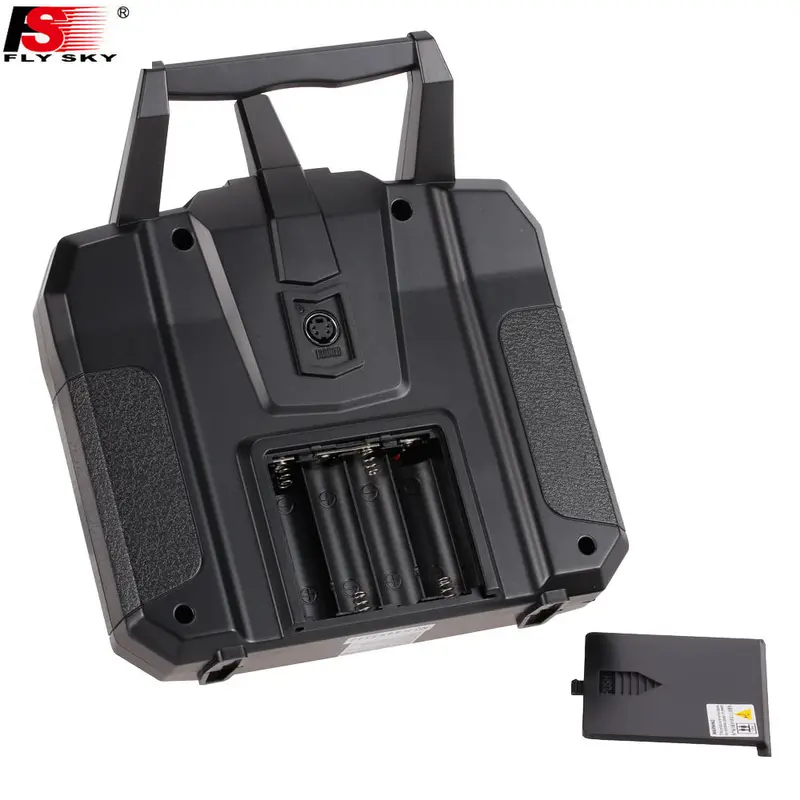

FS-i6X Specifications:Item: FS-i6X RC TransmitterChannel: 6-10 (Default 6)Model Type: Fixed-Wing/Glider/HelicopterRF Range: 2.408-2.475GHzRF Power: < 20dBmRF Channel: 135Bandwidth: 500KHz2.4GHz System: AFHDS 2A / AFDHSModulation Type: GFSKStick Resolution 4096Low Voltage Warning: < 4.2VDSC port: PS/2 Port PPMChargeable: NoAntenna Length: 26mm (Dual Antenna)Weight: 392gPower: 6V DC 1.5AA*4Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlightSize: 174x89x190mmOn-line Update: YesColor: BlackCertificate: CE0678, FCC ID: N4ZFLYSKYI6X X6B i-BUS Specifications: Brand Name: FlyskyItem: X6B i-BUS Receiver Channels: 6(PWM), 8(PPM), 18(i-BUS) Model Type: Multi-Totor RF Range: 2.408-2.475 GHzBrand Wigth: 500KHzNumber of bands: 135 RF Power: No more than 20 dBm RX Sensitivity: -95dBm 2.4GHz protocol: AFHDS 2A Modulation Type: GFSKStick resolution: 1024Low voltage alarm: YesDSC port: PPM/PWM/i-BUSAntenna Length: 93mm (Dual Antenna) Power input: 4.0-8.4V On-line Update: Yes(Wireless)Range: >300m Weight: 4.5g Size: 36*22*7.5mm i-BUS Port: Yes Certificate: CE0678, FCC ID: N4ZX6B00 IA6B Specifications: Item Name: IA6BChannel: 6Model type: fixed wing/helicopter/gliderRF receiver sensitivity: -105dBmModulation: GFSKSystem type: AFHDS2A/AFHDSChannel resolution: 1024 stepsBind port: yesPower port: yes( VCC)Power: 4V -6.5V DCWeight: 14.9gAntenna lenght: 26mmSize: 47.4*262.2*15 mmCertificate: CE ,FCCFS-A8S Specifications:Brand Name:Flysky Item Name:FS-A8S Receiver Channels: PPM 8CH, i-BUS 18CHModel type: Multi-rotor Frequency range: 2.408-2.475GHz b and width: 500KHz b and number: 135 RX Sensitivity: -92 dBm2.4GHz system: AFHDS 2A Modulation type: GFSKDSC port: PPM/i-BUS/S.BUSTransfer method: FHSSData output: 1.5mm*3 Pin PPM/i-BUS/S.BUS Antenna length: 26mm (Not including brass contacts) Input power supply: 4.0-8.4VDisplay method: LEDNo ground interference ( Transmitting and receiving 1 m from the ground): >300mWorking current: 40mAEach channel data: depend on the transmitterChannel delay: <15mSSize: 20*14*5.3mm Weight: 1.2g Certificate: CE0678, FCCID: N45ZA8S00 FS-IA10B Specifications:Number of Channels: 10Suitable models: Airplane / glider / helicopter HealthFrequency range :2.4-2 .48 GHzNumber of newspapers: 160Transmitting power: not more than 20dBmReceiver sensitivity:-105dBm2.4G modes: automatic frequency second generation digital systemEncoding: GFSKAntenna length: 26 mm * 2 (dual antenna)Weight: 19.3 gInput power :4.0-6 .5 V DCDimensions: 47 * 33.1 * 14.7 mmColor: BlackCertification: CE0678, FCCi-BUS Interface: YesData acquisition interface: Yes
