Flycolor Waterproof Brushless ESC – 50A–150A, 2S–6S, BEC & Water-Cooling for RC Boats & Jet Systems

Description

1PCS Flycolor 50A 70A 90A 120A 150A Brushless ESC 2-6S Lithium Battery Waterproof ESC with BEC for RC Electric Gasoline Jet Boats

Features:

Quick & smooth:

Water proof design

Built-in SBEC, multiple protections

Easy operation, parameters can be setup by transmitter or program card

Use powerful & high performance MCU. Users can set functions as their demand, fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.

Waterproof design (Note: if there is water in the ESC, Please dry the water at the connectors).

Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with scale boat & racing boat .

Low-voltage protection threshold value can be set.

Built-in switch BEC, large power load with servo, lower power consumption.

Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-heat protection and throttle signal loss protection, make the ESC more reliable.

High power safety performance: wherever the throttle lever is, the motor will not start immediately.

Over thermal protection: when ESC temperature is over 100 deg, output power will automatically reduce. When it’s lower than 80 deg output power will return to normal.

Cycle menu setting, simple operation. Support setting with program box and transmitter.

Specifications:

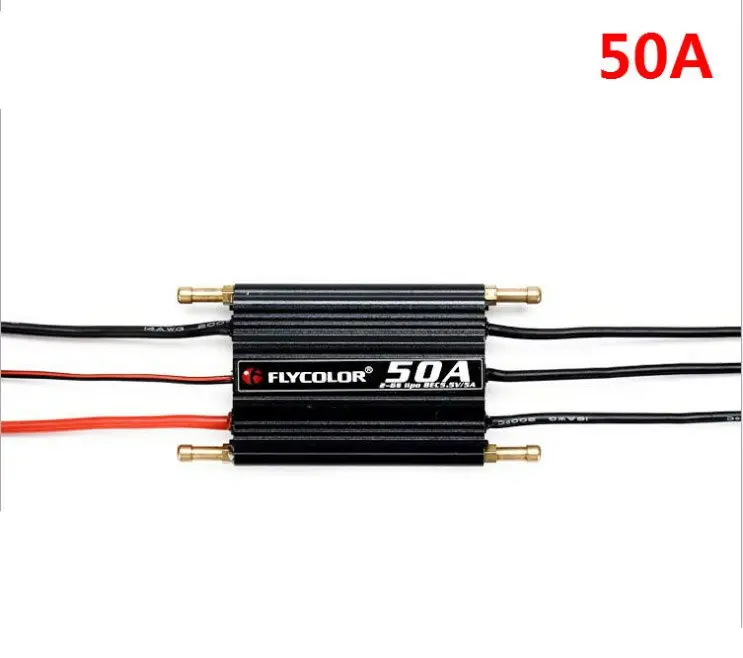

50A:

Output: Continuous 50A, Burst 300A up to 10 seconds.

Input Voltage:  2-6S

BEC: 5.5V/5A

Size: 57*49*18 mm.

Weight: 90g.

Application: max 55cm boats

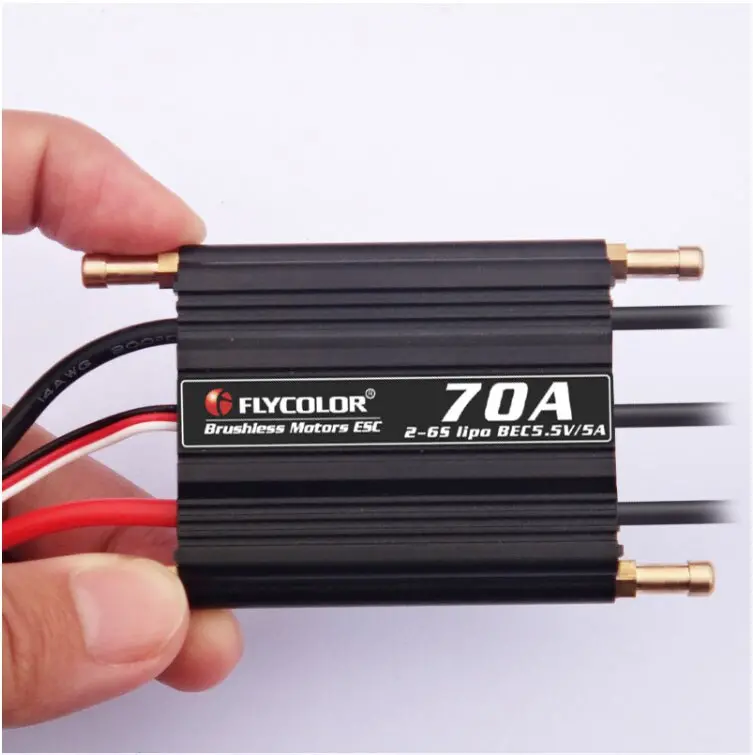

70A:

Output: Continuous 70A, Burst 420A up to 10 seconds.

Input Voltage:  2-6S

BEC: 5.5V/5A

Size: 57*49*18 mm.

Weight: 101g.

Application: max 70cm boats

90A:

Output: Continuous 90A, Burst 540A up to 10 seconds.

Input Voltage:  2-6S

BEC: 5.5V/5A

Size: 57*49*18 mm.

Weight: 102g.

Application: max 100cm boats

120A:

Output: Continuous 120A, Burst 720A up to 10 seconds.

Input Voltage:  2-6S

BEC: 5.5V/5A

Size: 76*56*25 mm.

Weight: 155g.

Application: max 120cm boats

150A:

Output: Continuous 150A, Burst 900A up to 10 seconds.

Input Voltage:  2-6S

BEC: 5.5V/5A

Size: 76*56*25 mm.

Weight: 165g.

Application: max 135cm boats

Package:

1PC x ESC
