Description
Description:

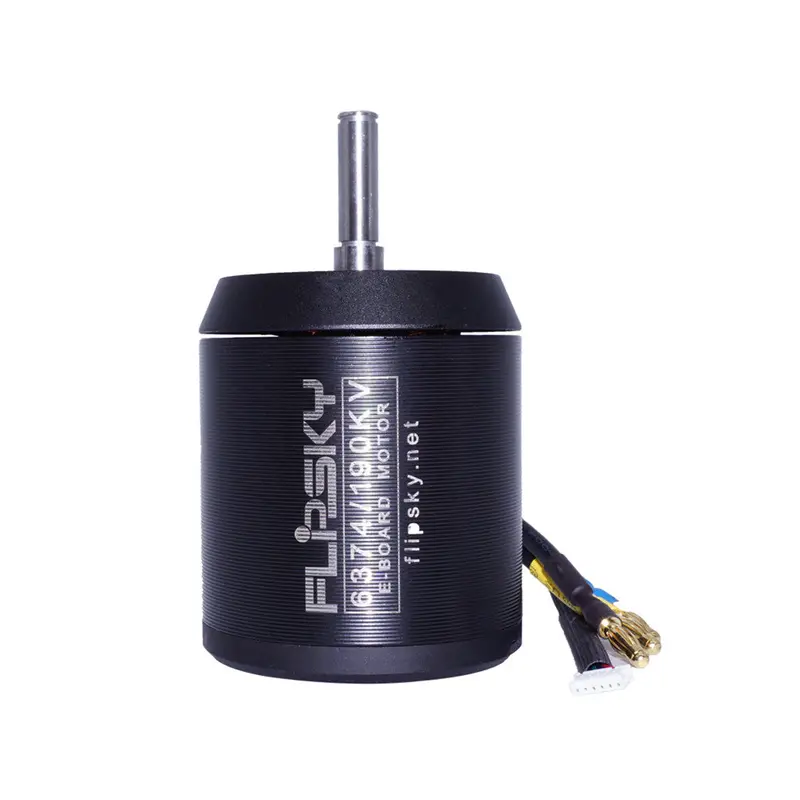

Brand:Flipsky
No:R 6374
Weight: 1.9 lb / 0.86 kg
Packaging weight:1000g
Packaging size:115mm*175mm*90mm
Recommendation esc:3-12S 50A(HGLRC-Flipsky FSESC 4.12 50A SK8 ESC,click here;or HGLRC-FlipSky FSESC6.6,go to the link
Mainly fit for 1/10 and 1/8 rc car,electric skateboard
Motor Spec:
Max Power: 3250 Watts Max Current: 85 Amps Max Volts: 12S Max Torque: 8Nm Motor Resistance: 0.05Ohm Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Battery type: 4-12S Diameter(mm): 63.4 Length(mm): 77 Total length (mm):102 SHAFT: Diameter 8mm, 30mm length, 3×1.5 keyway slot. Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration: Blue = A Black = B Yellow = C Stator: 0.2mm thickness lamination japan steel Magnet: N42SH high temp curve magnet
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch Internal PCB with 120 Degree Hall Effect Sensors. Motor can be used with or without a sensor. Sensorless operation is most common. VESC Sensor Wires required to use with VESC. Wire configuration: Red = 5v Blue = A Yellow = C Green = B Black = GND
Screws(the packaging are not included):
The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.
Package included:
1X R-6374 190KV 3250W Motor
