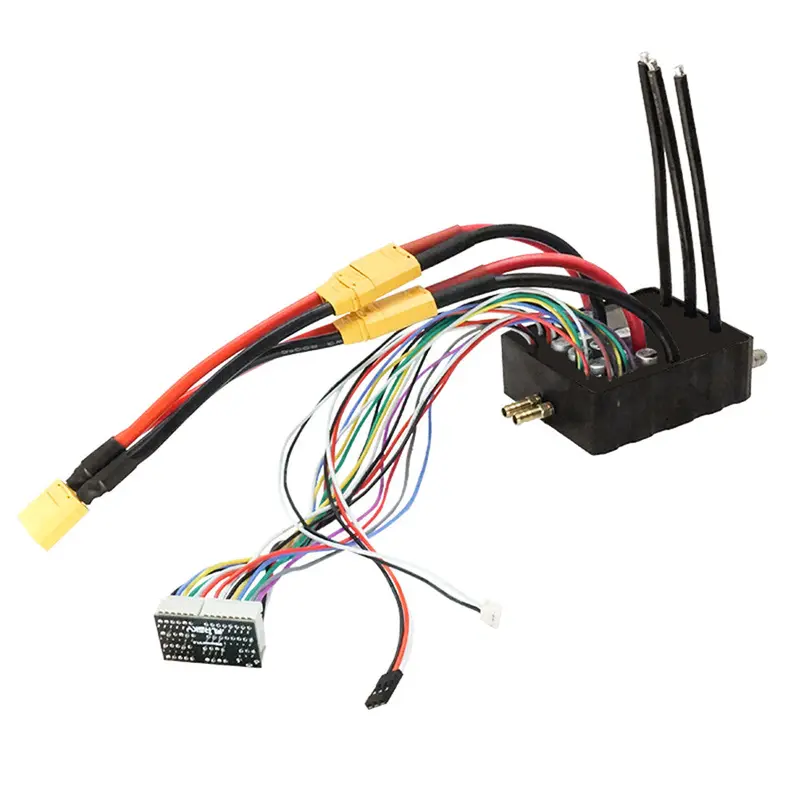

Flipsky FSESC 200A High-Current ESC – VESC6-Based, 60V Max, Designed for Electric Skateboards & RC Models

Description

Description: Item Brand:FLIPSKY  Item name:FSESC 200A 60V Product Size:79.5*58.5*23mm(included the heat sink) Packaging size:205*140*40mm
Product Weight:About 210g
Packaging Weight:Approx 400g
The Wiring diagram,please click here
Advanced Features: 1. ESC can reach continuous 200A current 2. Preserve Bluetooth module and RF module connections 3. Aluminum anodized Heat sink with fins design for better heat dissipation 4. Compact size with heatsink: 58x80x15mm (L*W*D) 5. PCB layers: 8layers, thickness: 3oz/layer, total 24 oz thickness   Spec: Hardware: V 6.6 Firmware: VESC_default_no_hw_limits Voltage: 8V – 60V (Safe for 3S to 12S LiPo, Voltage spikes may not exceed 60V) Current: Continuous 200A ,  Burst current  800A 5V 1.5A output for external electronics  3.3V 1A output for external electronics  Modes: DC, BLDC, FOC (sinusoidal) Supported sensors: ABI, HALL, AS5047 Waterproof level:IP67
Package Included:
1X FSECS 200A + Heatsink 1X Micro USB  1X VESC Sensor Wire 1X Manual
