Description

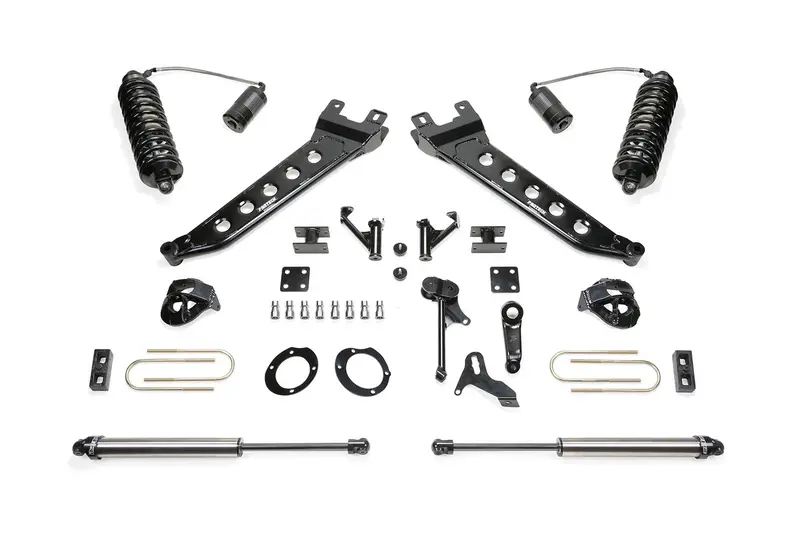

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
Specifications:
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE – 38/13.50R17 Wheel – 17X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 38/13.50R18 Wheel – 18X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 38/13.50R20 Wheel – 20X10 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 38/13.50R22 Wheel – 22X10 W/5″ BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 130. WILL NOT FIT FACTORY AIR SUSPENSION. |
| Description_ASC | TIRE SIZE-38/13.50R17 WHEEL-17X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-38/13.50R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-38/13.50R20 WHEEL-20X10 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-38/13.50R22 WHEEL-22X10 W/5in. BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 130. WILL NOT FIT FACTORY AIR SUSPENSION. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 4.0DLSS C/O RESI RAM 7″ |
| Description_DES | 7″ RADIUS ARM KIT W/4.0 C/O RESI DLSS & 2.25 DLSS 2013-18 RAM 3500 4WD |
| Description_DES | COMPONENT BOX 1 W/ DLSS |
| Description_DES | COMPONENT BOX 2 |
| Description_DES | Radius Arm Lift System |
| Description_EXT | 7″ RADIUS ARM KIT W/4.0 C/O RESI DLSS & 2.25 DLSS 2013-18 RAM 3500 4WD. |
| Description_EXT | Component Box; Box 1 of 2; For 7 in. Lift; Incl. Dirt Logic SS Shocks; For PN[K3079DL/K3080DL]; |
| Description_EXT | Component Box; Box 2 of 2; For 7 in. Lift; For PN[K3079DL]; |
| Description_EXT | Dirt Logic 4.0 Resi Coilover; Front; For 7 in. Lift; For PN [K3079DL/K3075DL/K3076DL/K3080DL/K3081DL]; |
| Description_EXT | Radius Arm Lift System; 7 in. Lift; w/Dirt Logic 4.0 Resi Coilovers; Dirt Logic Shocks; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-7″ RADIUS ARM KIT W/ |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech’s 7in Radius Arm Coilover Conversion system allows the installation of the massive Dirt Logic 4.0 Resi Coilovers on the front of Ram 3500’s. The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory TracK Bar bracket. The Dirt Logic 4.0 Coilover features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0’s provide a super smooth highway ride with outstanding offroad damping for rough terrain. Includes rear Dirt Logic Shocks. Estimated installation time is 5-6 hrs. Amount of holes to drill for installation – 10. Welding is required. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. |
| Description_SHO | 7″ RADIUS ARM KIT W/ |
| Description_SHO | LftKt-Suspw/Shock |
| height | 35.2 |
| length | 45.5 |
| LTL | N |
| Title | Fabtech 7″ RADIUS ARM KIT W/4.0 C/O RESI DLSS & 2.25 DLSS 2013-18 RAM 3500 4WD |
| weight | 335.0 |
| width | 42.2 |
