F7 All-in-One Flight Controller with Dual Gyro, OSD, Dual BEC (5V/8V), and Black Box – 2S–6S Compatible

Description

NEW F7 Flight Controller Dual Gyro AIO OSD 5V 8V BEC & Black Box 2-6S for RC Drone FPV Racing Multicopter

Specification:

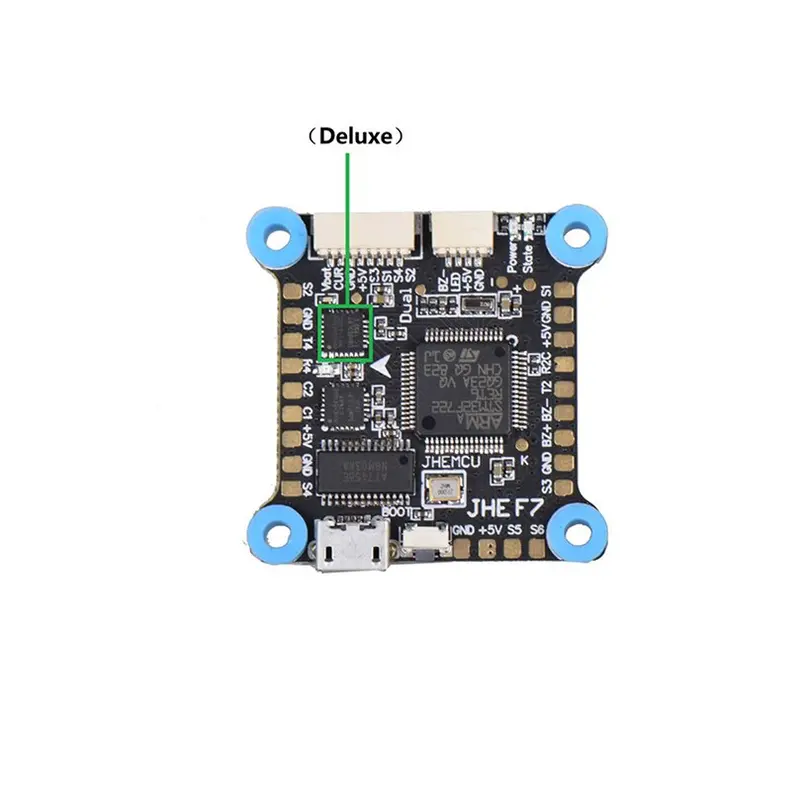

Item Name: Dual Gyro F7 Flight Controller AIO OSD BEC
Optional Version: Acro(Standard) Version ( Without Barometer & Blackbox & MPU6000)
Deluxe Version ( With Barometer & Blackbox)
Input Voltage: 2-6S Lipo

MCU: STM32F722RET6 216MHz IMU: MPU6000 & ICM20689, Dual Gyros (SPI) ;
ACRO(Standard) Version Don’t support MPU6000 Baro: BMP280 ( ONLY Deluxe Version Having) OSD: AT7456E (SPI) Blackbox:16MB ( ONLY Deluxe Version Having)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A  ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS  ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1) Firemware: BetaFlight  Size: 36x46mm Mounting Hole: 30.5×30.5mm Weight: 7.5g
Package Included:
1x F7 Flight Controller Board
4x M3 Anti-vibration Standoff
