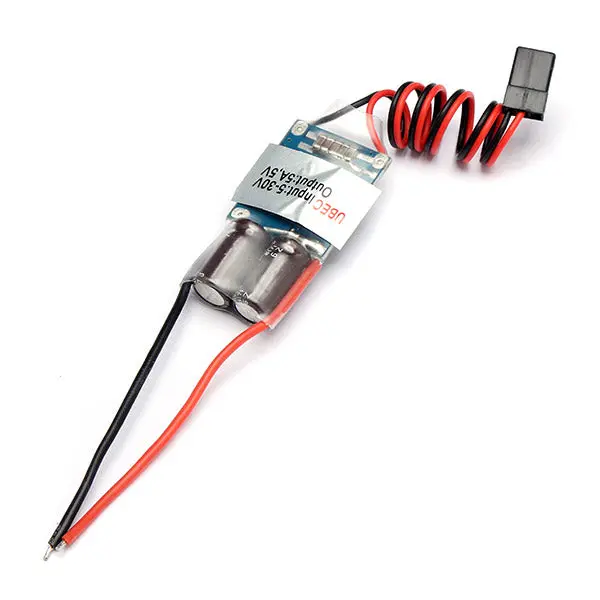

External UBEC 5A Voltage Regulator – Wide-Input 5V Output (5–30V) for RC Receivers & Peripherals

Description

External BEC UBEC 5A 5V-30V Receiver Power Supply






Description:
Item Name: External BEC
Input Voltage: 5V-30V
Continuous Current: 5A
Transient Current: 6A/20s
Output Voltage: 5.25V +/-0.5V
Dimension: 43*21*11mm
Weight: 18g
Features:
Switching power supply design,300KHz frequency master chip, have over-current and over-temperature protection, chip efficiency up to 92%.
Small volume, light weight.
Electronic devices are protected by the shield, the output line is equipped with a magnetic ring, which greatly reduces electromagnetic interference, to ensure the normal working of receiver.
Prevent power reverse polarity protection, if you accidentally reverse power, will not damage UBEC.
Compared With the Traditional BEC:
Using switch power supply BEC,when using the 3S (11.1V) above battery, it can greatly reduce the BEC fever, and improve overall efficiency.
Package Included:
1x External 5A 5V BEC
