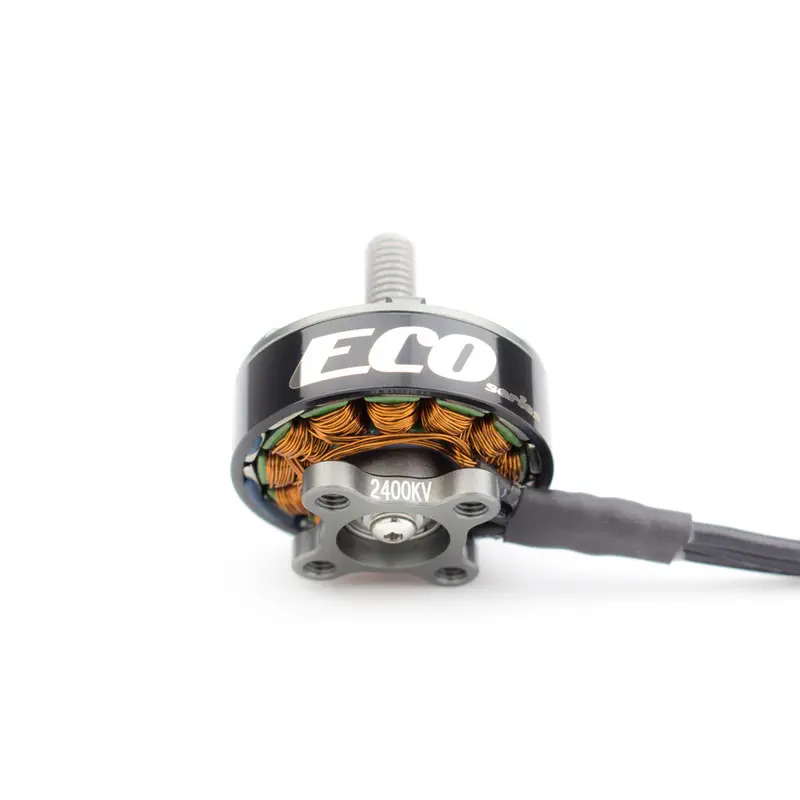

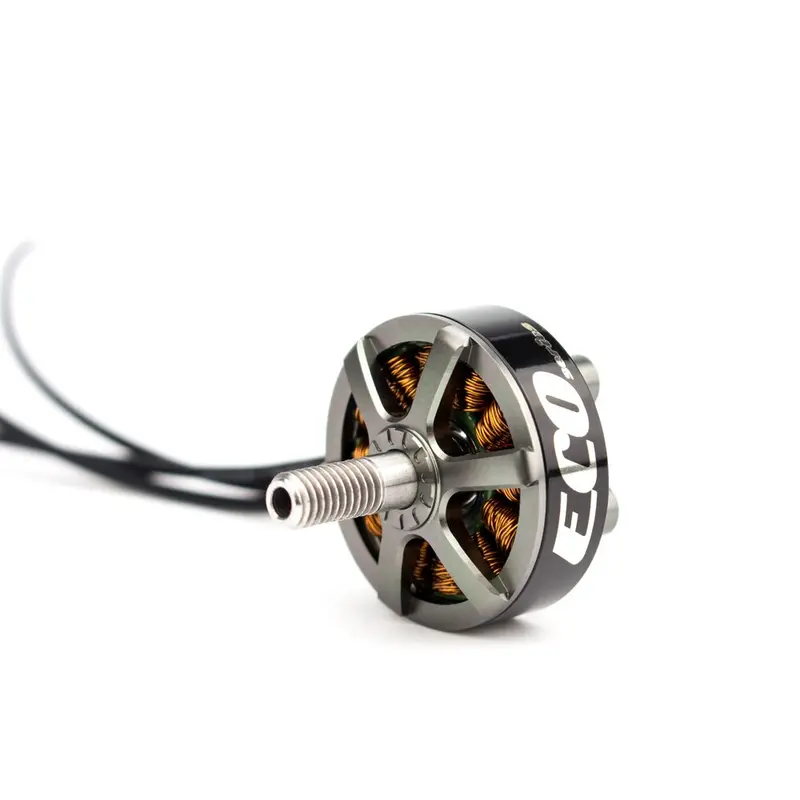

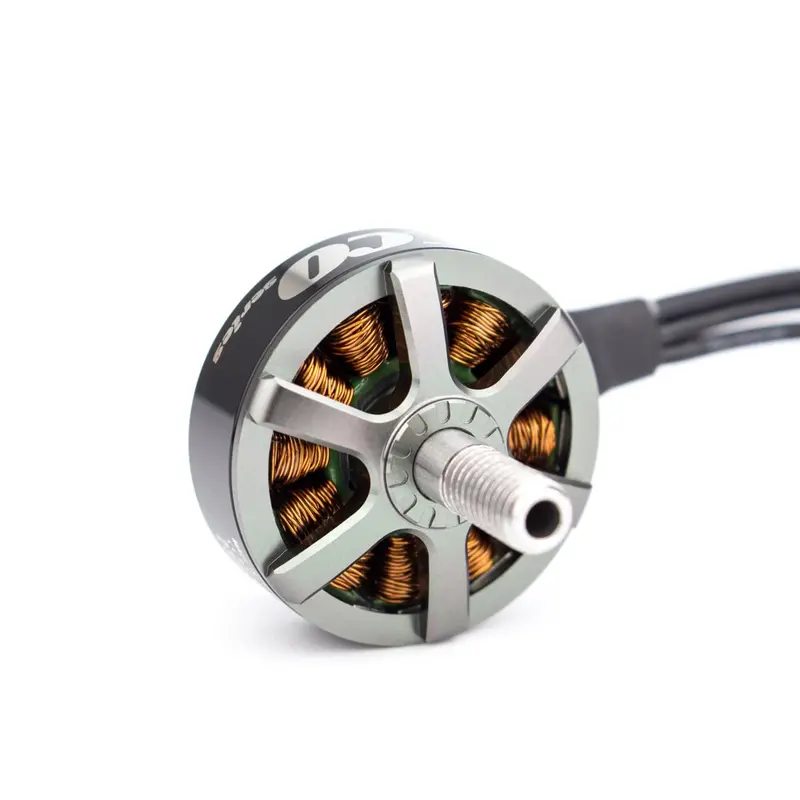

EMAX ECO Series 2306 Brushless Motor – Dual KV Options (1700KV for 3–6S, 2400KV for 2–4S) for Durable Racing Drones and Helicopters

Description

Specifications:

Specifications
Framework: 12N14P
Length: 30.2mm
Diameter: 27.7mm
No. of cells: 3-4s 2300-2700kv range
No. of cells: 3-6s 1500-1900kv range
Propeller: 5″ – 6″
Light Weight: 28.3g (W/O Silicone Wire)
Prop adapter: M5
Bearing Shaft: 4mm
Shaft Thread: CW
Feature
EZO bearing 9mm ODx4mm ID
Steel shaft
Dual anodizing
16x16mm hole pattern
Multi copper winding
115mm 20 AWG silicone wire

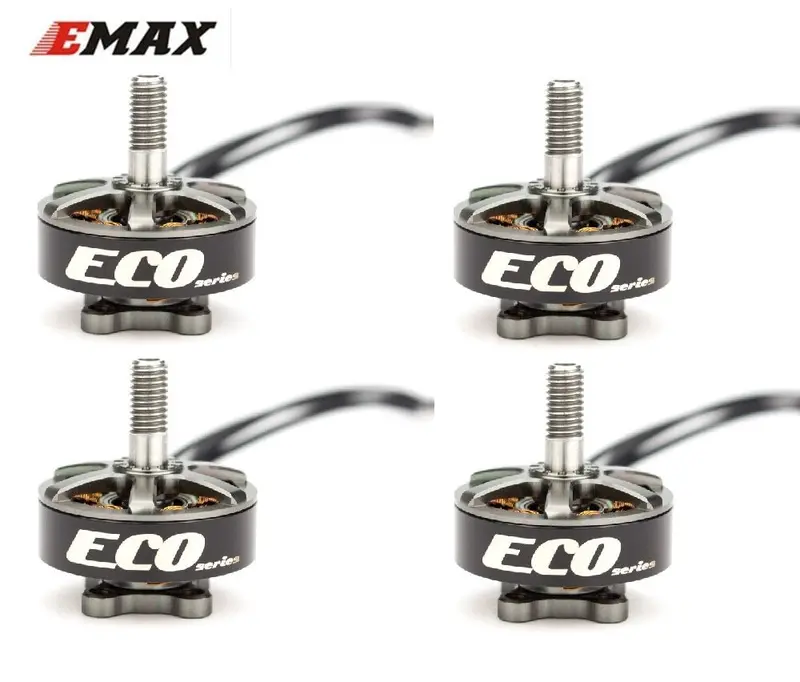

  Package including :   4pcs Emax ECO Series 2306(kv as your choice)  Emax ECO series 2207  Brand name: Emax
Item name: ECO series 2207 brushless motor
KV: 1700KV, 1900KV, 2400KV (option)
Framework: 12N14P
Length: 32.6mm
Diameter: 27.45mm
No. of cells: 3-4s 2400KV
No. of cells: 3-6s 1700KV 1900kv
Propeller: 5″ – 5.5″
Light Weight: 31.5g (W/O Silicone Wire)
Prop adapter: M5

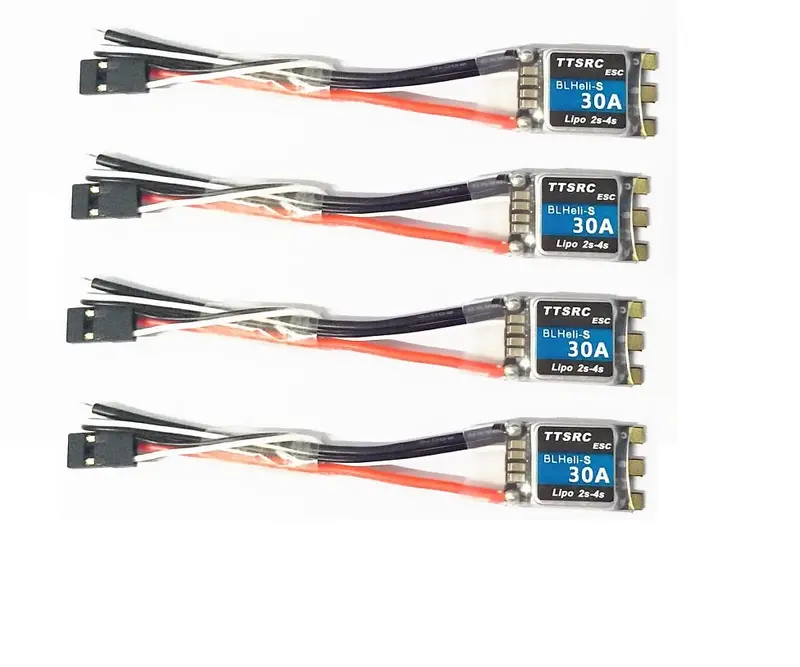

Shaft Thread: CW 30A ESC Description: Item name: FVT 30A-S ESC Input Voltage: 2-4S Lipo BEC Output: No Continue Current: 30A, Burst Current: 35A up to 10S Size: 35*17mm Weight: 9g(include Power and signal wire) Support Damped mode, Oneshot125, Oneshot42 and Multshot Main IC: SILABS EFM8BB21F16, MCU run 48MHz MOS: Both low and high side fets are Nfets Switching speed is very fast, it has dedicated driver chip BLHeli_S Bootloader & Firmware
