Eachine Tyro69 105mm FPV Racing Drone – F4 AIO, Caddx Beetle V2 Camera, PNP Configuration

Name: Eachine Tyro69 105mm FPV Racing Drone – F4 AIO, Caddx Beetle V2 Camera, PNP Configuration
Brand: Drone Spark
SKU: 106936
Availability: InStock

Price range: $92.32 through $92.96

Color

Ships From

Clear

Quantity

SKU: N/A Category: 200001411 Brand: Drone Spark

Description

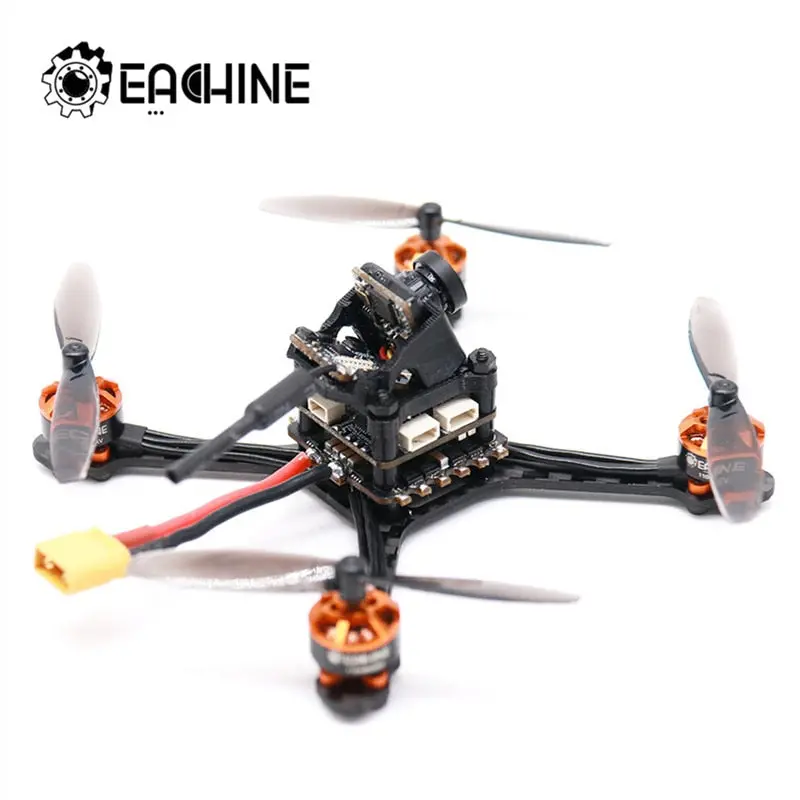

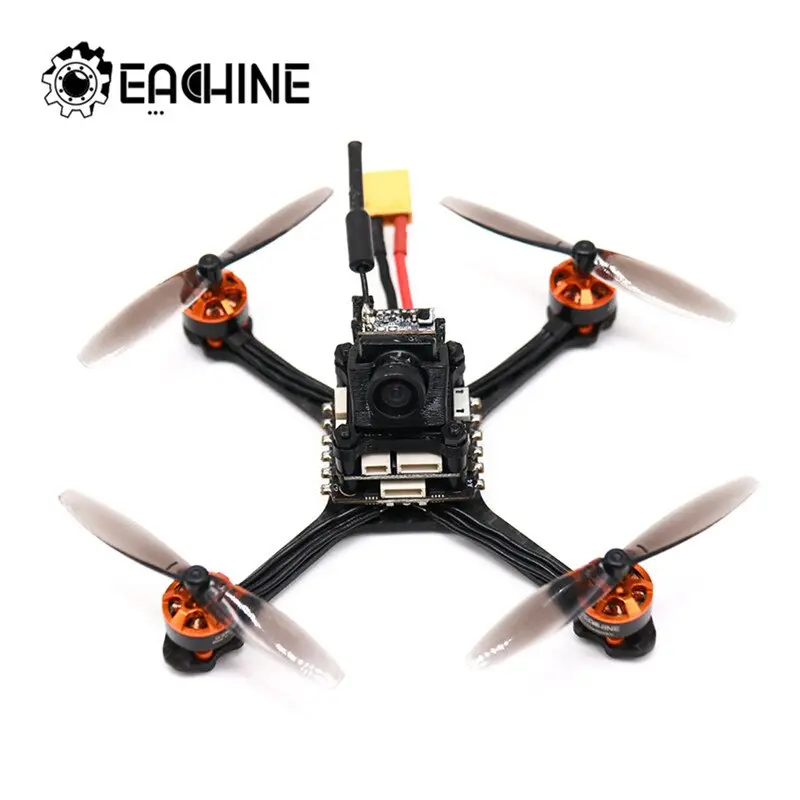

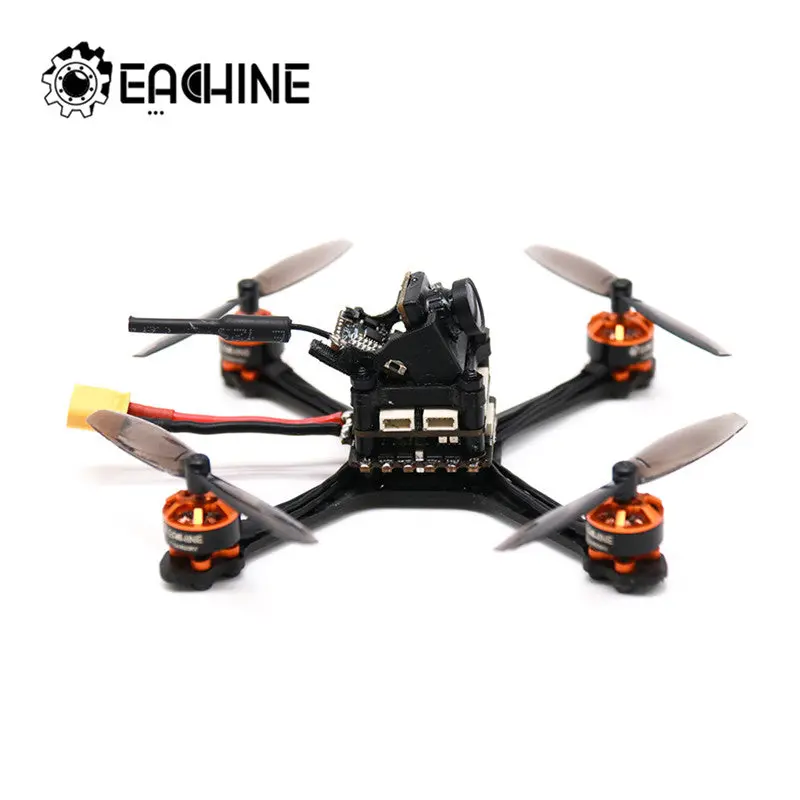

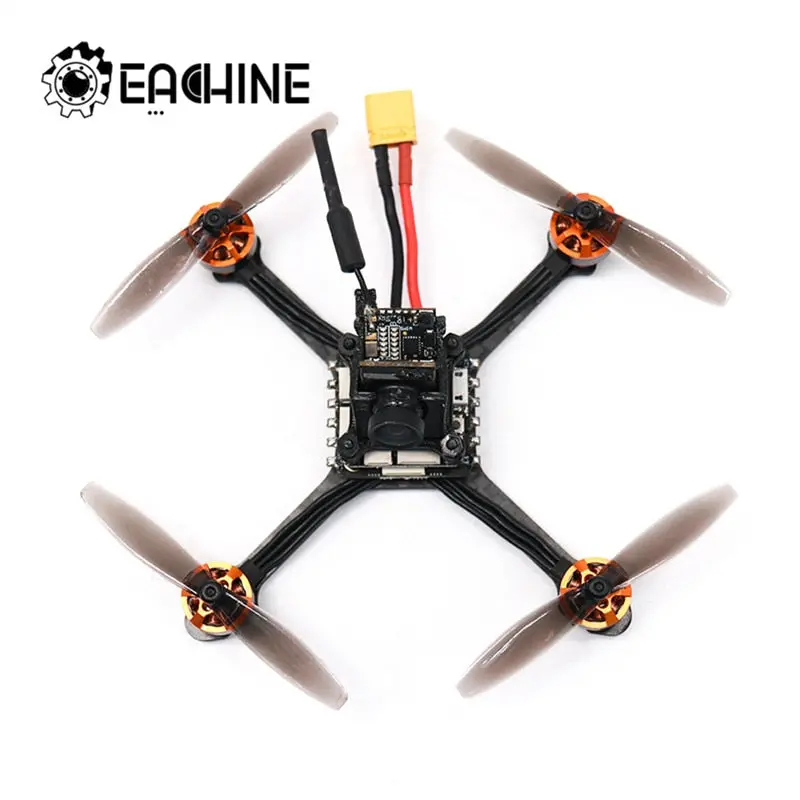

Eachine Tyro69 105mm F4 OSD 2.5 Inch 2-3S DIY FPV Racing Drone PNP w/ Caddx Beetle V2 1200TVL Camera
Notice:
1. This is the DIY version that comes unassembled.
2. Comes without battery, charger, receiver or radio transmitter.
Specification:
Brand Name: Eachine
Model: Tyro69
Item Name: 2.5 Inch DIY FPV Racing Drone
Version: PNP ( Without Receiver, Battery and Radio Transmitter)
Drone Wheelbase: 105mm
Arm Plate Thickness: 2mm
Max. Propeller: 2.5 Inch
Material: 3K Carbon Fiber & 3D Printed TPU Parts
Weight: 47.9g ( without battery)

Eachine F411 OSD Flight Controller	Main control chip: STM32F411 IMU: MPU6000 Integrated Betaflight OSD Firmware: MatekF411 SBUS/ IBUS/ for DSMX / UART Shared: UART1-RX BEC: 5V 2A WS2812 Led Strip : Yes Beeper : Yes Mounting Hole: 20x20mm – Support betaflight/ cleanflight/ inav firmware – Plugs connector / Soldering Pads are Optional for all connector Port
Eachine 20A BL_S 4In1 ESC	MCU:48MHz EFM8BB21F16G Input Voltage: 2-6S Con. Current: 20A Burst Current: 25A (10S) BEC: NO Size: 28.7×30.7mm Mounting Hole: 20x20mm Weight: 24g Support DShot150/300/600, PWM, OneShot125, OneShot42, MultiShot ( DShot600 in default out from factory)
Eachine 1104 8600KV 2-3S Motor	KV: 8600KV Lipo cell: 2-3S Weight: 4.3g Color: Orange Max. Con. Current: 13A Max. Con. po wer: 144W Configu-ration: 9N/12P Motor Resistance: 137mΩ Stator Diameter: 11mm Stator Thickness: 4mm Motor Diameter: 13.8mm Motor Body Length: 11.5mm Overall Shaft Length: 17mm Bolt Holes Spacing: 9mm Bolt Thread: M2
65mm 2-Blade Propeller	Item Name: 65mm 2-Blade Propeller Shaft: 1.5mm Quantity: 10 CW & 10 CCW Color: Transparent Black / Black/ Red ( Sends Randomly )
Caddx Beetle V2 Camera AIO VTX	Output po wer: 25mW Channel: 48CH Input Voltage: 2.9-5.5V Support SmartAudio VTX Size: 15x14mm
Caddx Beetle V2 Camera AIO VTX	Image Sensor: 1/3 CMOS Horizontal Resolution: 1200 TVL TV System: PAL Image: 4:3 Lens: 2.1mm Dimensions: 14x14x16mm Weight: 4.1g (Camera + VTX)
Recommend Lipo Battery ( Not Included)	Recommend 3S 350-450mAh Lipo Battery
