Description

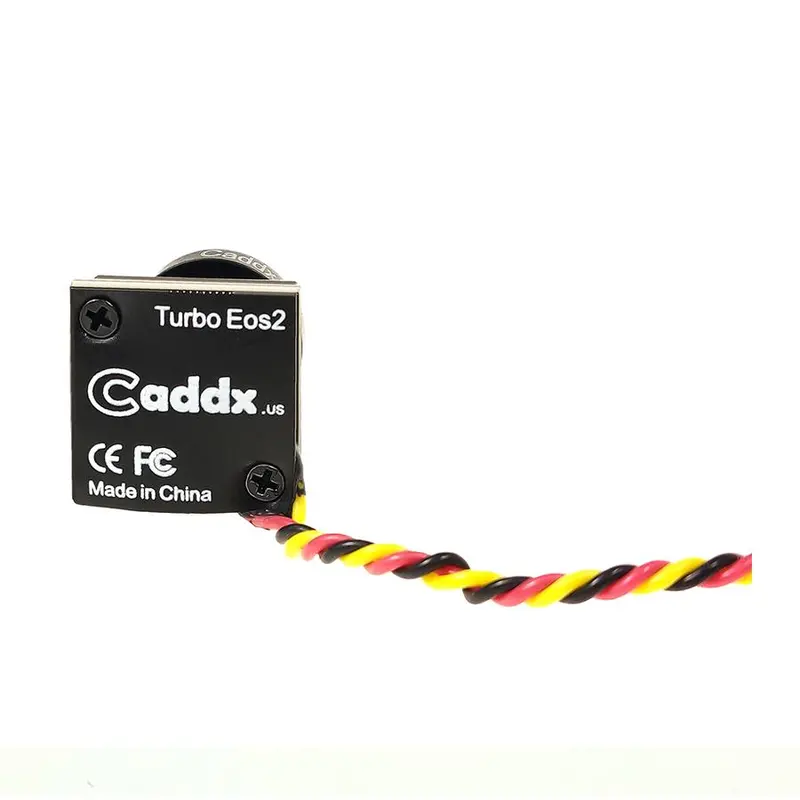

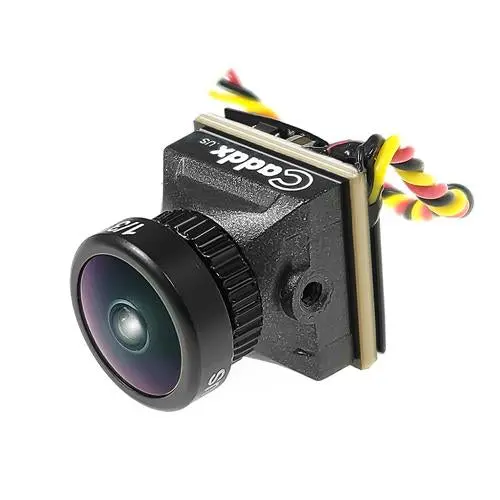

Caddx Turbo EOS2 1200TVL 2.1mm 160 Degree 1/3 CMOS 16:9 Mini FPV Camera NTSC/PAL For RC Drone
Description
| Model | Turbo EOS2 |
| Image Sensor | 1/3″ CMOS Sensor |
| Horizontal Resolution | 1200 TVL |
| TV System | NTSC / PAL option |
| IMAGE | 16:9 |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >52dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 2.1mm |
| Min. Illumination | 0.001Lux@F1.2 |
| Auto Gain Control | YES |
| BLC | YES |
| WDR | Global WDR |
| DNR | 2 DNR |
| Dimensions | 14mm*14mm*16mm |
| Wide Power Input | DC 3.3-6V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 3.5g (N.W.) |
Connector : Molex 1.25mm 3 pin
Recommanded Parts
FPV VTX : 5.8Ghz VTX Click Here
Receiver for Smartphone : 5.8Ghz 150CH Click Here
FPV Monitor : 5.8Ghz 40CH Monitor Click Here
FPV Goggles : 5.8Ghz 40CH Goggles Click Here
Package Included 1 x Camera 1 x Molex Picoblade 1.25mm 3pin FPV silicone cable 1 x Screws set

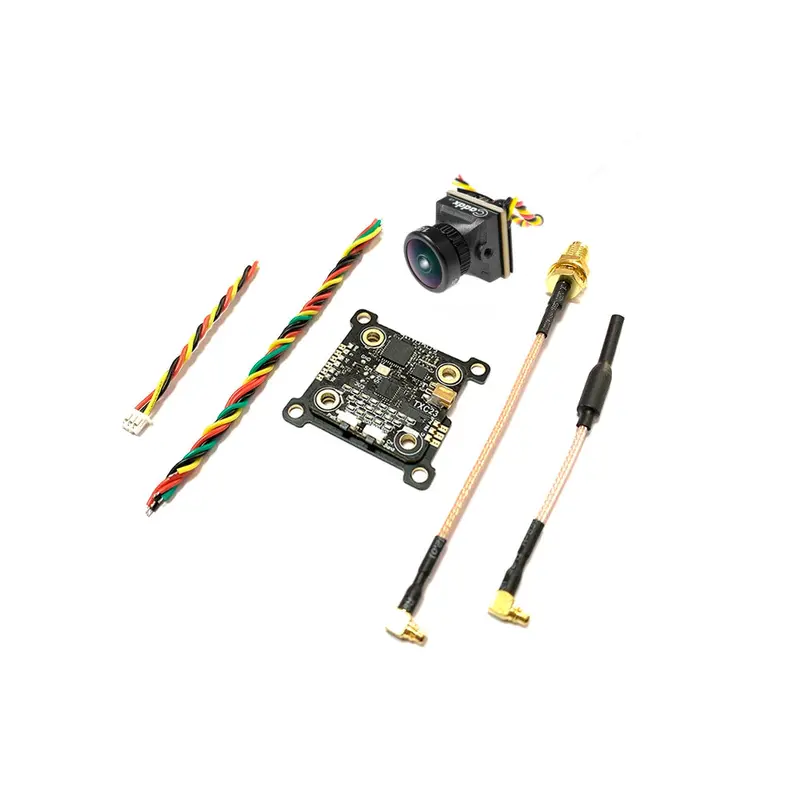

EACHINE TXC23 VTX 5.8Ghz ISM Band 48CH Simulation FPV Mini Transmitter Pitmode for Micro Drone RC Racing Aircraft
Features
2 mounting sizes : 28mm x 28mm / 36mm x 36mm, compatible with most drones. eg. Mobula7, wizard x220s etc.
PIT / 25mW / 200mW / 600mW / 800mW switchable
Support DC 6-36v wide power input.
Comes with welding spot , support free DIY to match diverse rc models(camera, battery).
Description Model:EACHINE TXC23 VTX Input voltage:DC 6-36V Output voltage:5V/1A 12V/PIT@30mA 12V/25mW@140mA/16dBm 12V/200mW@190mA/24.5dBm 12V/600mW@280mA/28dBm 12V/800mW@330mA/30dBm Antenna interface:MMCX
Wire Connector : JST-SH 1.0mm 3 PIN Output power:PIT / 25mW / 200mW / 600mW / 800mW switchable Frequency:5.8GHz 6 bands, 48 channels Size:28mm x 28mm x 1.6mm Weight:5g (External expansion board included) Size : includes 2 sizes , compatible with most multi-rotor drones,
VTX : 28mm x 28mm x 1.6mm External expansion board : 36mm x 36mm x1.6mm
Recommanded Parts:
Battery: Click Here
Camera : Click Here
Receiver for Smartphone : 5.8Ghz 150CH Click Here
FPV Monitor : 5.8Ghz 40CH Monitor Click Here
FPV Goggles : 5.8Ghz 40CH Goggles Click Here
Soldering Tool : Click Here
Click here to download the User Manual Package Included 1 x EACHINE TXC23 VTX 1 x Antenna 1 x Antenna Extension Cable 2 x AV Cable
Notice: There is a simple way to connect them, stripping wires’ coating and bonding them by tape.
