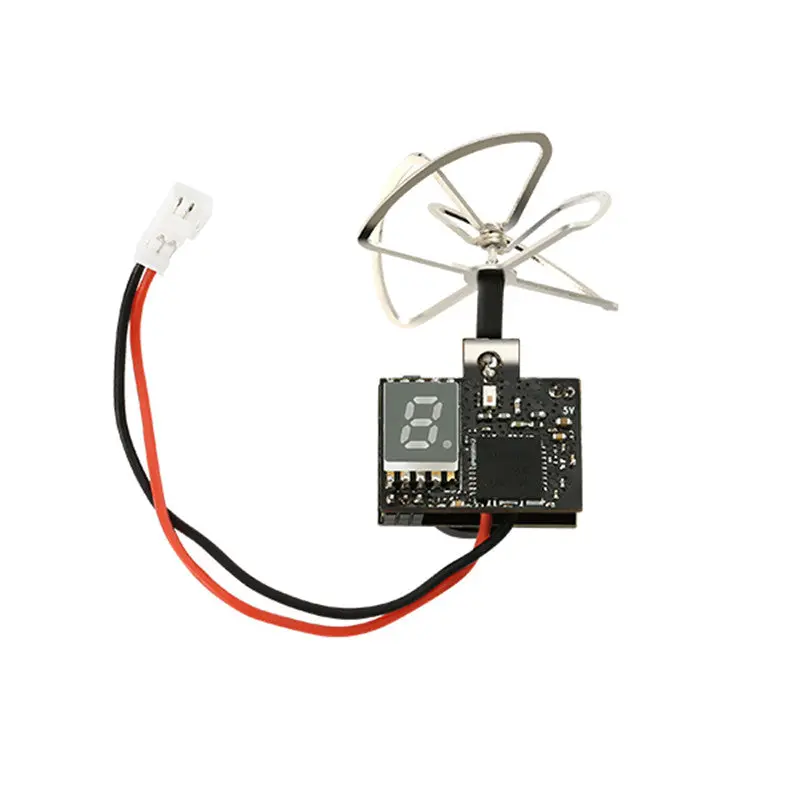

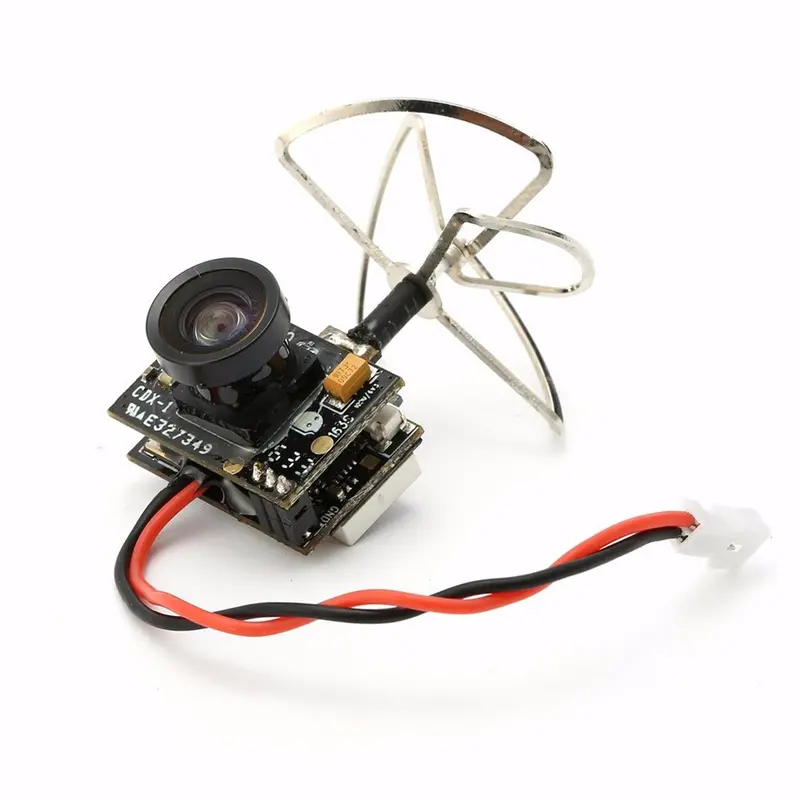

Eachine TX02 Super Mini All-in-One FPV System – 5.8GHz 40CH 200mW VTX + 600TVL 1/4″ CMOS Camera for Tiny Whoops and Micro Quads

Description

Specification:
Brand name: Eachine
Item name: TX02 AIO FPV VTX Camera
Output power: 200mW
Input power: 3.3-5V
Current consumption: 3.3-5V, 500mA (type)
Camera resolution: 600TVL
Video system: NTSC
Mini illumination: 1 lux
Field of view: 120 degree viewing angle
Antenna for dimensions: 22x29mm diameter
Antenna: 4 lobe right hand circular polarized
Frequency: 5.8GHz 5 bands 40 channel
Size:  20x13x6mm

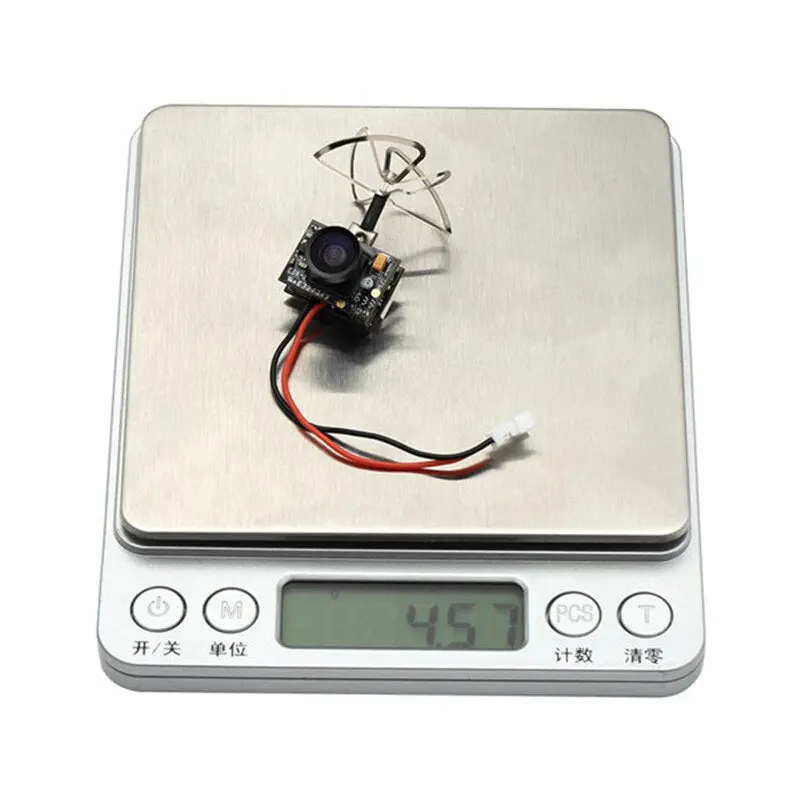

Weight: 4.57g
Feature:
Super mini size and light weight
Power failure memory, remember the frequency channel after powering off
Nickel-plated 4 Leaf Antenna
Five bands 40 channels with Raceband, show on LED Digital Display

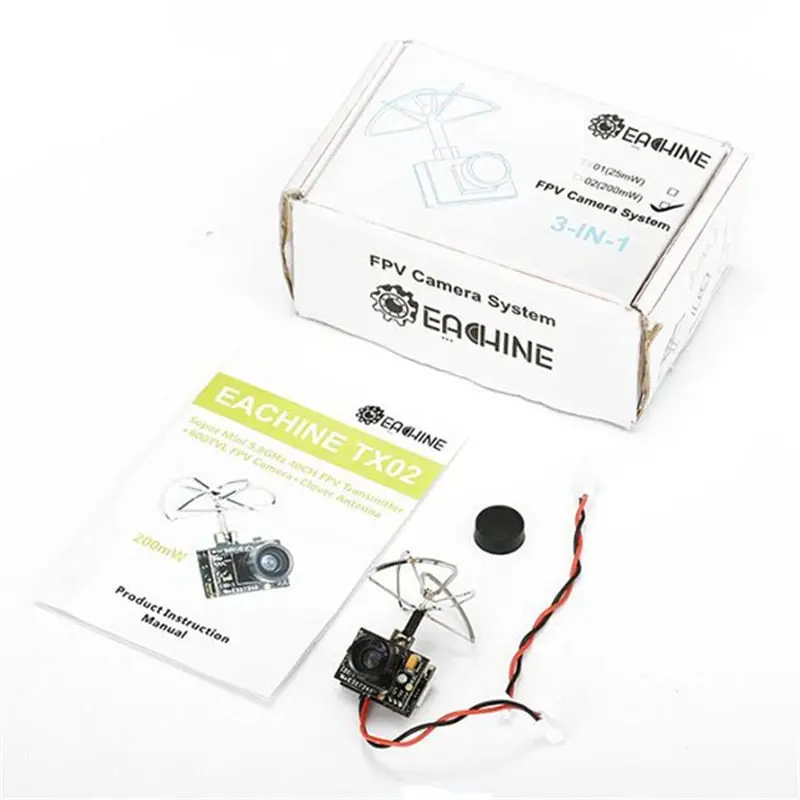

Package Included:
1 X TX02 AIO FPV Camera (with cable)

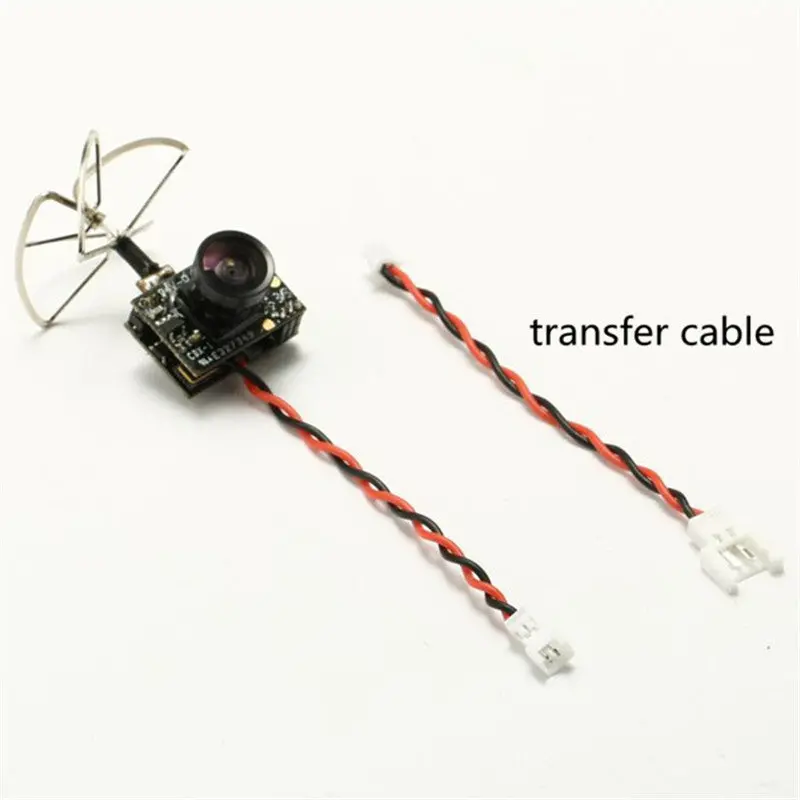

1 X Cable
1 X User Manual
