Description
Specifications:
Brand Name: Eachine

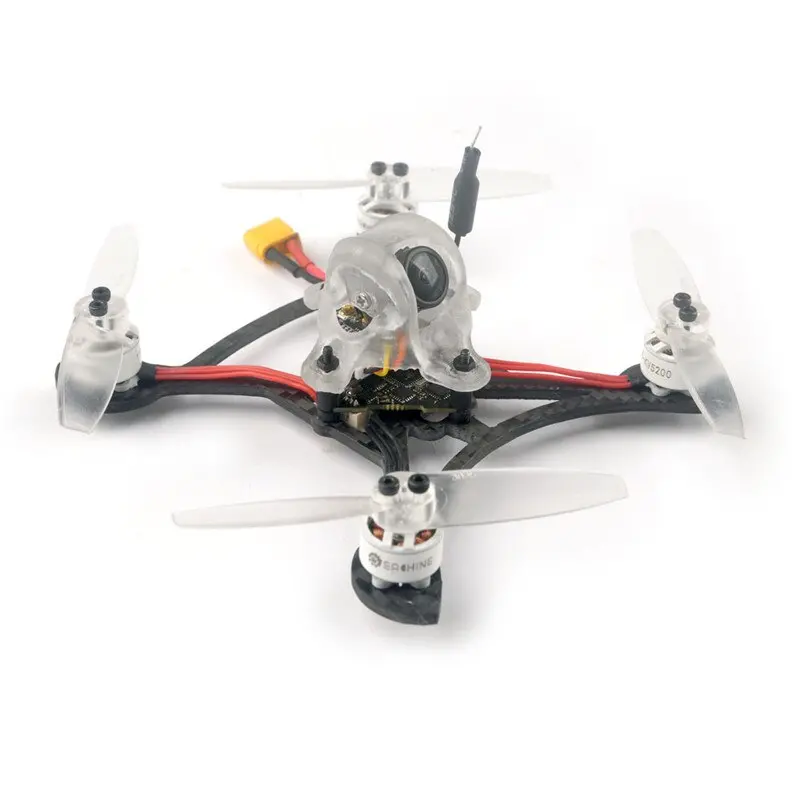

Item Name: 115mm Twig 3 Inch 3S Brushless FPV drone
Wheelbase: 115mm
Size: 105mm*100mm*45mm(without propellers)
Weight: Twig115 64g(without battery)
Twig115 HD 72g(without battery)
Features:
New Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
po werful and smoothly
Betaflight Omemorysupport ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX po wer switchable 25mw~200mw
Smartaudio ready , change VTX bands, po wers, channels via OSD
Built-in SPI Frsky D8 receiver
Compatible both for 2s-3s Lipo/LIHV
Runcam Nano2 version or Caddx Baby Turtle HD version
Spare parts specifications:
| Motor | Mode: EX1105 KV5200 Configu-ration:9N12P Stator Diamter:11mm Stator Length:5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ14mm*17mm Weight(g):5.6g No.of Cells(Lipo):2S-3S |
| Flight controller | (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM po wer supply: 2-4S battery input (DC 7-17V) Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry Could add external receiver on the board Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 70A Current meter scale set to 470 Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 po wer supply: 2-4S LiPo/LiPo HV (7v/17v) Current: 10A continuous summit 12A (5 seconds) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_5.HEX Default protocol: DSHOT600 |
| Frsky NON-EU receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| VTX | Output po wer: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready Weight: 3g |
| Runcam NANO2 version | Model: 2 Image Sensor: 1/3″ CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color po wer: DC 3-5.5V Current : 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 3.2g Dimensions: L14mm*W14mm*H16mm |
| Caddx Baby turtle version | TV system: NTSC/PAL changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps po wer Input: DC 4.5-20V Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Working Current: 380mA@5V/160mA@12V (low consumption) OmemoryMenu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Max minimemoryCard Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II) |
Package includes:
1 x Twig 115 2.5mm Frame
1 x Crazybee F4FR V3.0 PRO built-in Frsky NON-EU RX
4 x 1105 KV5200 Motor
1 x Gemfan 3025 3 Inch Propeller(4cw+4ccw)
1 x Camera option1 : for Runcam / Camera option2: for CADDX Baby turtle
1 x 5.8g 25mw~200mw Switchable VTX
1 x Propeller Disassemble Tool
1 x Screwdriver
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
