Description
Description :
Eachine ROTG01 Pro UVC receiver is upgraded with audio,and two buttons which make you search the frequency up or down,also included 2 different cables for Type-C and Micro USB, and receiver sensitivity is more stable than the old version. It is a new receiver that you can connect to your smart phone directly instead of heavy monitor and good for those who feel dizzy when wear FPV goggles. It has low latency around 100ms. 150CH auto search allows to cover all 5.8G frequency bands. One-screen display and double-screen display are switchable.
Parameter :
| Brand | Eachine |
| Model | ROTG01 Pro |
| Name | UVC OTG FPV Receiver |
| Channel | 150CH |
| Frequency Range | 5645~5945 |
| Sensitivity | -90dBm |
| Working Current | 200mA/5V |
| Power Supply | 5V(by smart phone) |
| Operating Temperature | -10~60℃ |
| Connector | RP-SMA Female |
| Weight | About 28g |
| Size | 61*33*0.9 mm |
| Color | Black/White |
| Resolution | 640*480 |
Please note:This Reciever only suits for Android phone that support UVC and make sure your phone can work with OTG connector.
How to check my phone support UVC:
https://drive.google.com/open?id=0Bzr4U7GOGvNJUjNGZ25EdTlSLWs
APP Download:
http://files.banggood.com/2016/12/Go-FPV_v2.2.1pakage.apk
https://drive.google.com/open?id=0Bzr4U7GOGvNJRHI4M09QS0lxdEU
Here’s the phone list support this receiver that we have test .
Sumsung: S3(I9300,I9308), S4(I9500,I9507V, I9508, S5, S6, S6 edge+, S7edge, NOTE3, NOTE4, NOTE5, A5100, A8000, ON7, P600, N7100, N5100, Tab S2..)
OPPO: A31, A31C, A33, A51, A53, A33M, A51, A53, A5M, N3, FIND7, R7005, R7007, 3007, R2017, R8000, R8205, R8207, R7SM, R7 PLUS, R9 PLUS, ect..
XIAOMI: XIAOMI 3, XIAOMI 4, XIAOMI 4C, XIAOMI5, XIAOMI pad, XIAOMI Red Note, XIAOMI Red Note3, ect…
HUAWEI: MATE8, C199,Honor8
LG: GPRO2,G3,NEXUS5,L24,GPAD8.3, ect..
MOTOROLA: XPRO,NEXUS6,MOTO E,MZ617,ect..
SONY: Z1,Z2,Z3,C3,SGP321,ect..
The ROTG01 PRO receiver needs to meet the following conditions: 1: Android phone. 2: The phone supports OTG function. 3: Support Qualcomm full range CPU. 4: Kirin 950 CPU and higher CPU. 5: MediaTek X20 CPU and higher CPU models.
Note:
There are 2 same connecters on USB cable, but in different function. One side is special for mobile, the other is special for receiver. Please connect them correctly. If it doesn’t work , please try to plug them in reverse.

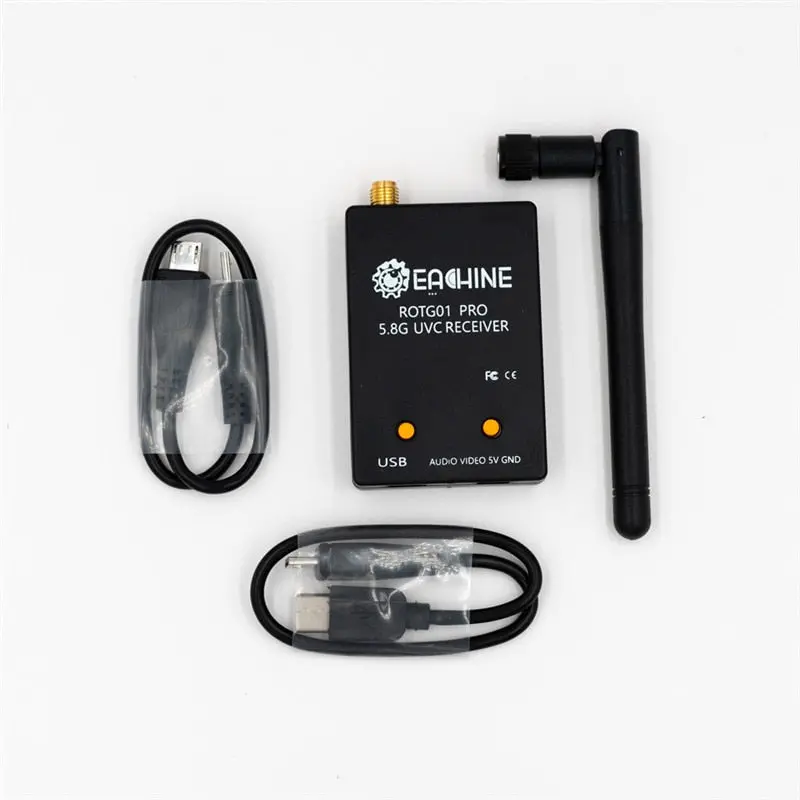

Pacakge Included:
1 x Eachine ROTG01 Pro 5.8G 150CH Mobile Receiver
1 x RP-SMA Antenna
2 x USB Cable
