Description
Description:

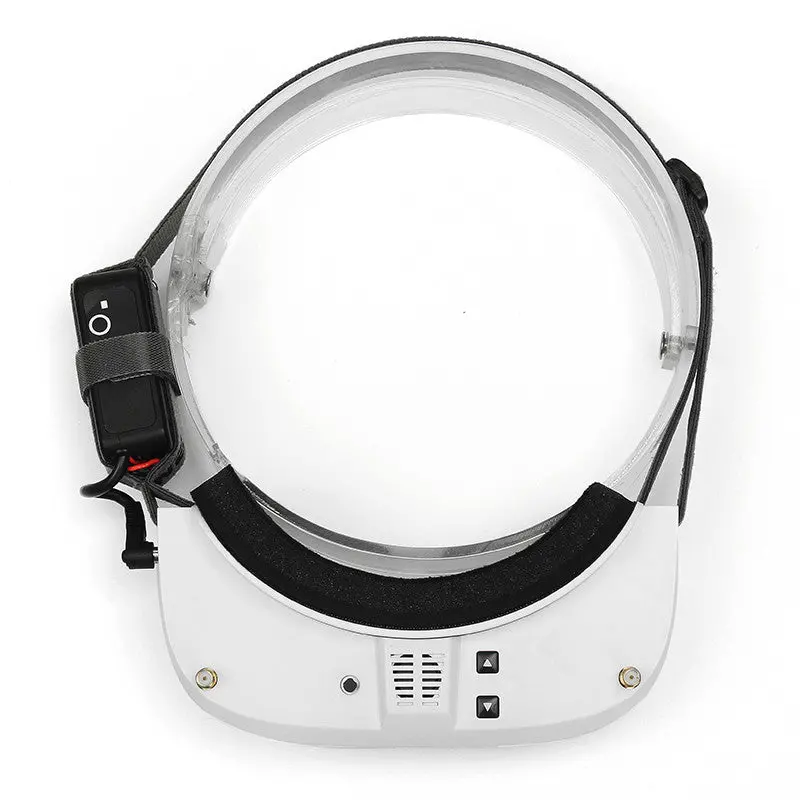

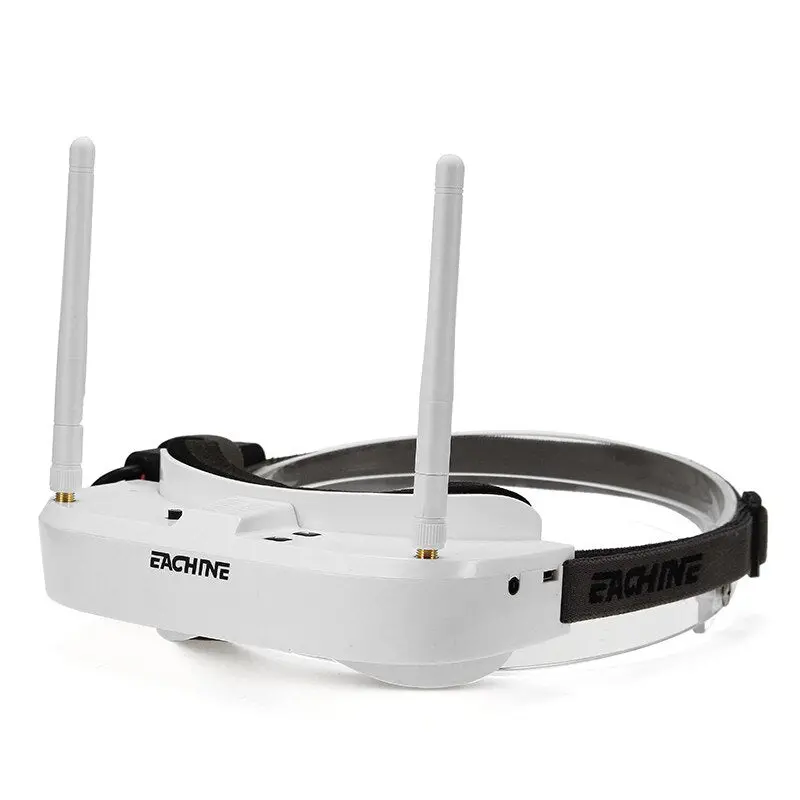

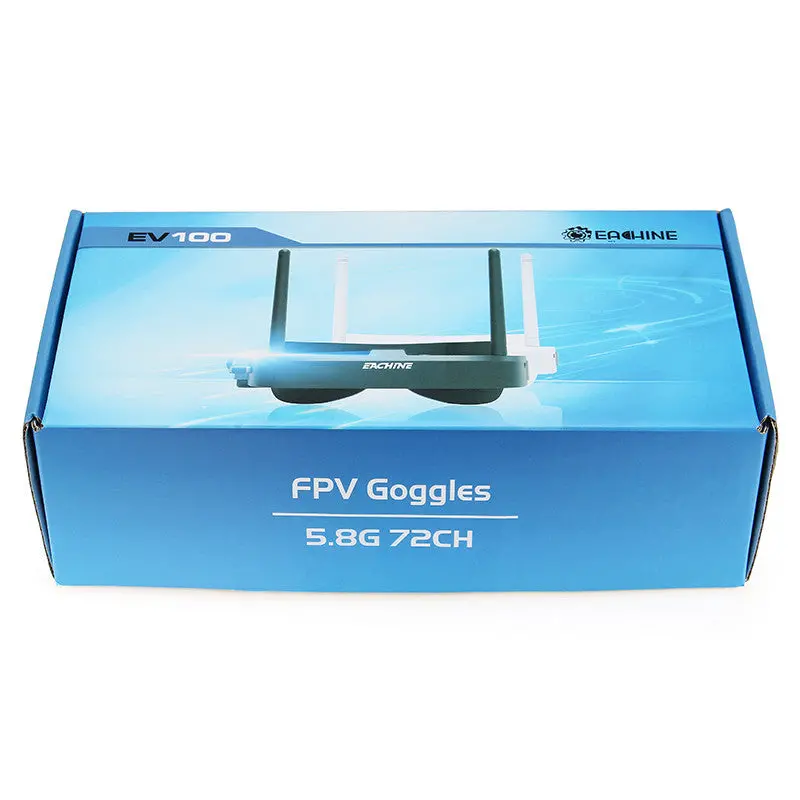

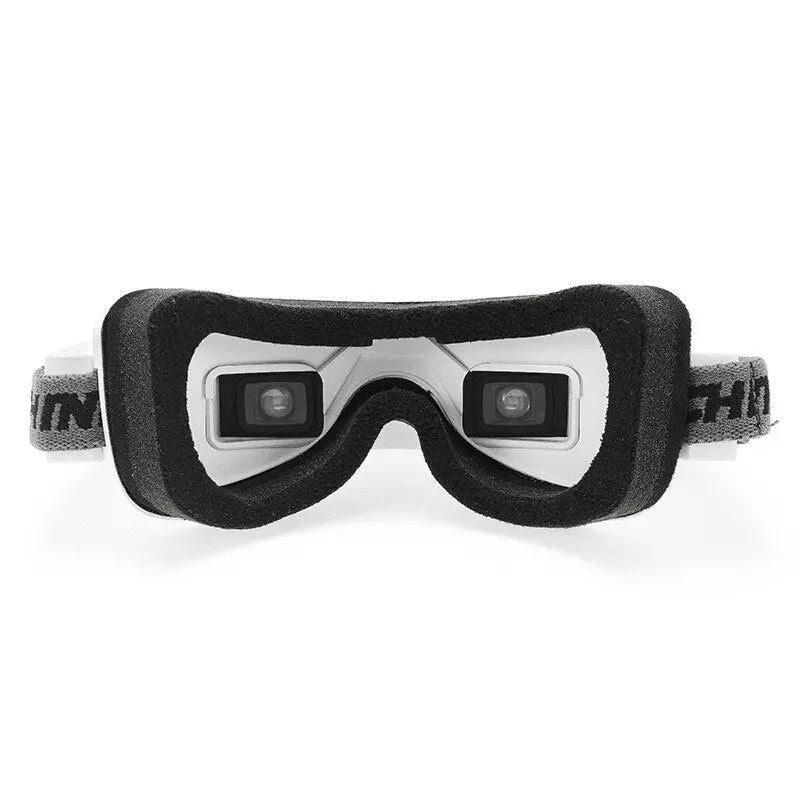

Brand Name : Eachine Item Name : EV100 Size : 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g Display: Resolution : 720*540 FOV : 28° diagonal IPD : 58-68mm
Ratio : 4:3 Focal length adjusting: under 400 degree of myopia and hyporopia 150 degree Specification: Frequency : 5.8G 5333Mhz-5945Mhz Sensitivity : <=-93dB Antenna Impedance : 50Ω Antenna Gain : 3dBi Antenna Connector : RP-SMA Video Formate : NTSC/PAL Support AV IN/OUT Support Focal Length/Brightness/Contrast Adjustment Suport Firmware Upgrading Power Input : 7.4V Low Voltage : 6.8V Battery : 2S 7.4V 1000mAh Charging : USB Cable(not included) Working Temp. : -10 ~ +40 Features: Support AV Input and Output Support External HDMI to AV Module Support External DVR module Single receiver with Dual Antennas, enhance the reception and stable performance. With Fan, can defog the glasses for good visual experience. Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye Adjustable IPD 58~68mm Auto Search function, can auto search all frequencies and select the channel of stongest signal. Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference. Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz Package Included: 1 x Eachine EV100 5.8G 72CH FPV Goggles 1 x 7.4V 1000mAh Battery 2 x RP-SMA 3dBi Antenna 1 x User Manual
Warning :Don’t use balance plug to charge the battery
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
