DS5160 Digital Servo – 60kg-cm High-Torque RC Servo for 1/5 Scale Vehicles, Helicopters & Heavy-Duty Model Applications

Description

1X 60kg baja servo DS5160 SSG HV Digital Servo for 1/5 Redcat HPI Baja 5B SS RC Car compatible SAVOX-0236 LOSI XL 5T

Note: 1. The best use voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v)   2. The working angle of the servo is 180 degree or 270 degree (PWM: 500us-2500us) Some remote controls can only output 1000-2000, it is recommended to buy 270 degree.

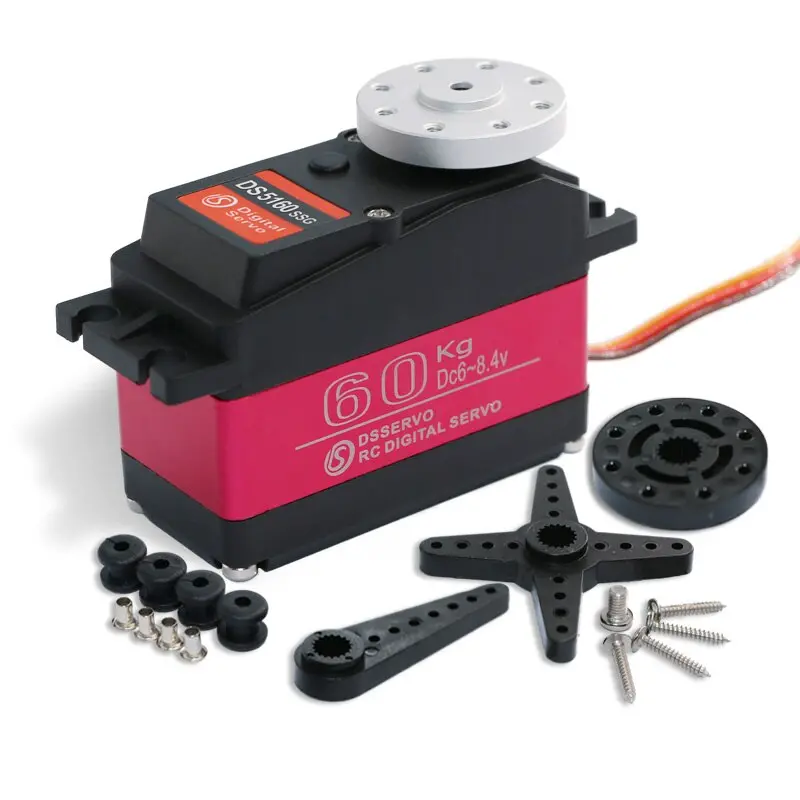

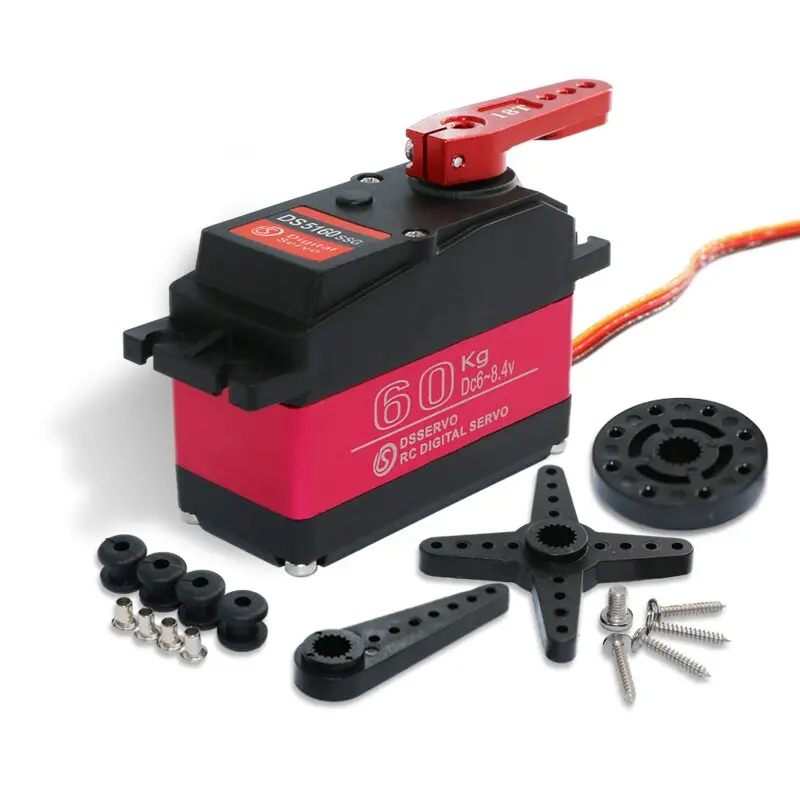

Package contains:

1 piece of DS5160 Digital Metal Robotic Servo

1 piece of 18T metal servo arm

one set of screw(see the picture)

Or

1 piece of DS5160 Digital Metal Robotic Servo

1 piece of 18T metal servo horn disk

one set of screw(see the picture)

  Size:65*30*48(servo) Weight:162g Wire length:320mm Speed: 0.17sec/60 degree at(6v) 0.15sec/60 degree at(7.4v) 0.13sec/60 degree at(8.4v) Torque: 58kg.cm.at(6v)
65kg.cm.at(7.4v) 70kg.cm.at(8.4v) Voltage: 6v-8.4v Dead Zoon setting:3 Microseconds     Features:

– Durable Metal Gear
– Dual Ball Bearing
– Programmable Digital Amplifier with Mosft Drive
– Bottom Side Axial Mount Hole
– Original factory product
– Less Noise
-Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation Angle:maximum 180 or 270 deg

-Mechanical Angle :360 deg

(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)

​

Tips:

If you need more catalogs or other Special servos, please contact us,thanks!

Supply Ability: 100000 Piece/per Month
