Diatone MAMBA F405 Mini MKII Flight Controller Stack – Includes 25A BLHeli_S ESCs & Betaflight Firmware for 2–4S FPV Drones

Description

Specification:

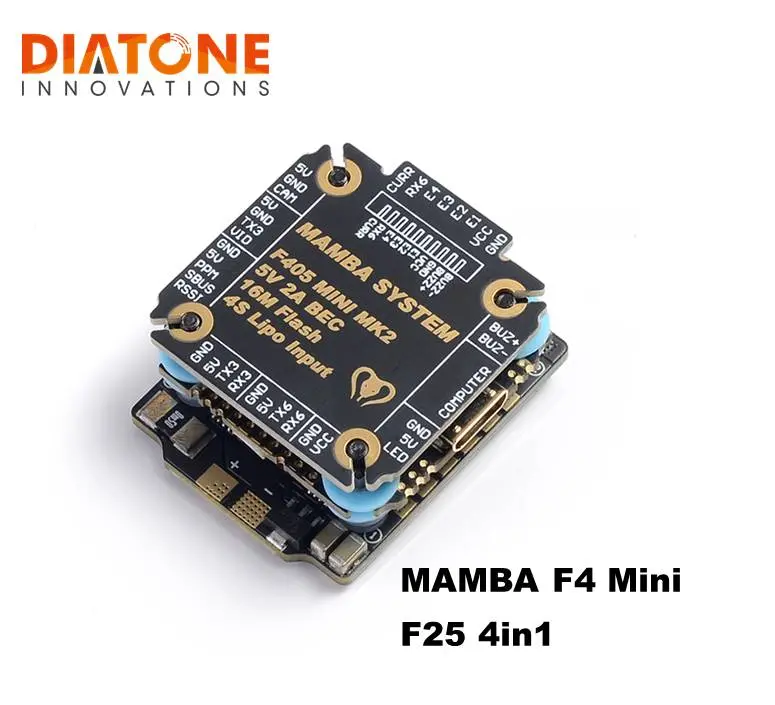

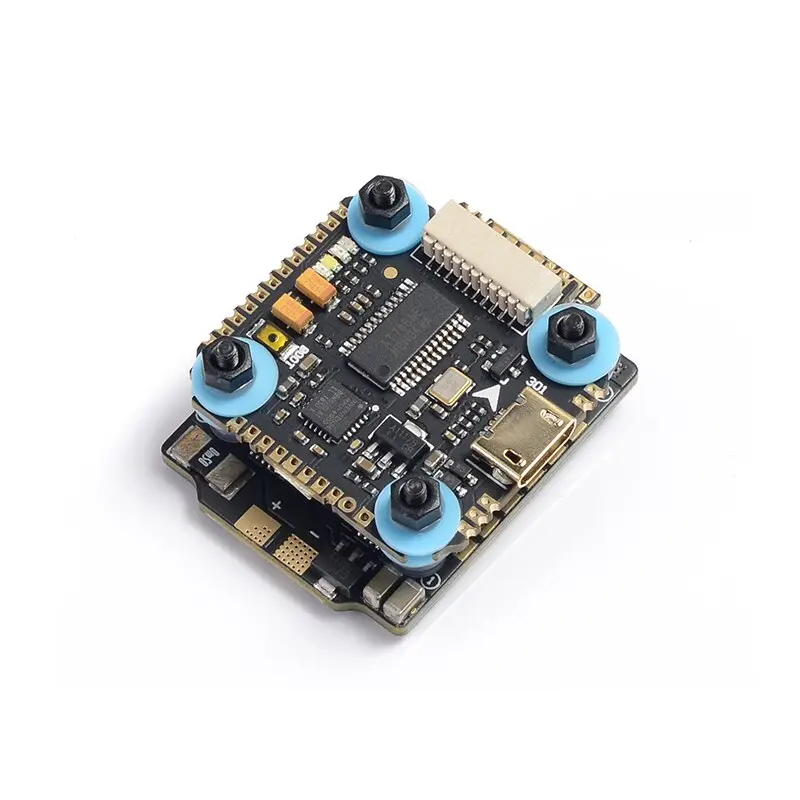

Mamba F405 Mini ForFC

Item name: F405 mini Betaflight Flight Controller

Input: 2~4S LIPO (11.1V~16.8V)

BEC: 5V 1A

MCU: STM32F405

Gyro: MPU6000

FLASH: 16M

OSD: AT7456

Mounting: 20mm/M2

Weight: 3.5g

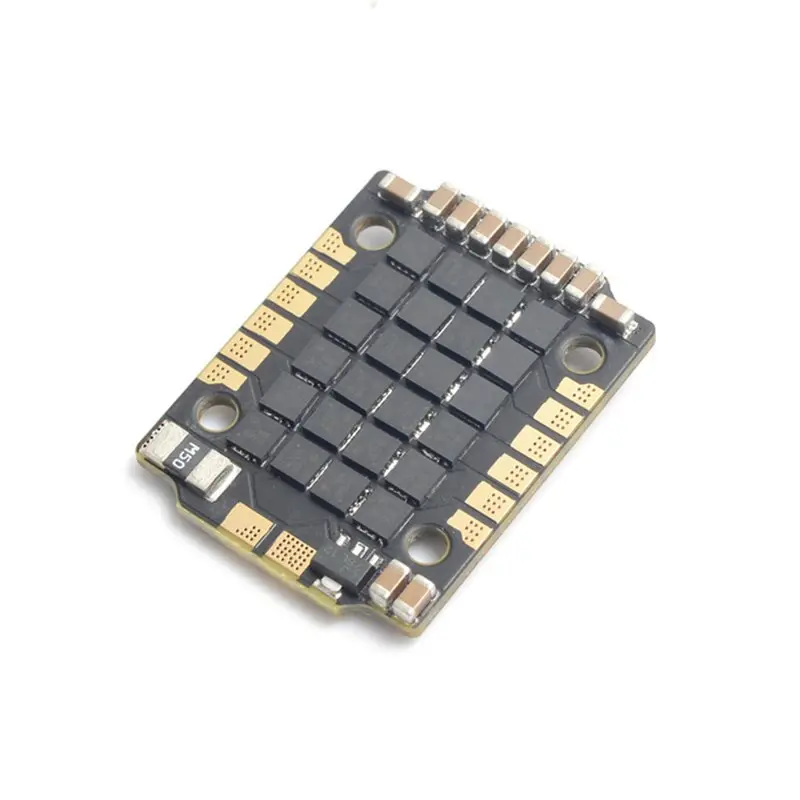

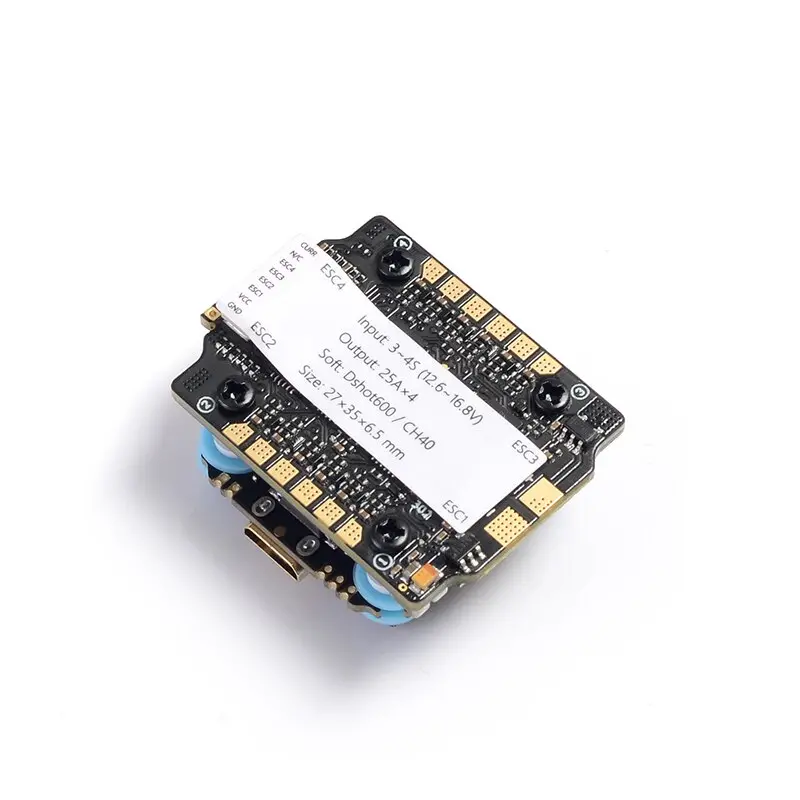

Mamba F25 ESC

Item name:  Mamba F25HV ESC

Input voltage: 2~4S (7.4V~16.8V)

Continue current: 25A×4

Burst current: 30A (10S)

BEC: NO

Size: 30×30×5mm

Mounting: 20mm / φM2

Weight: 8g
