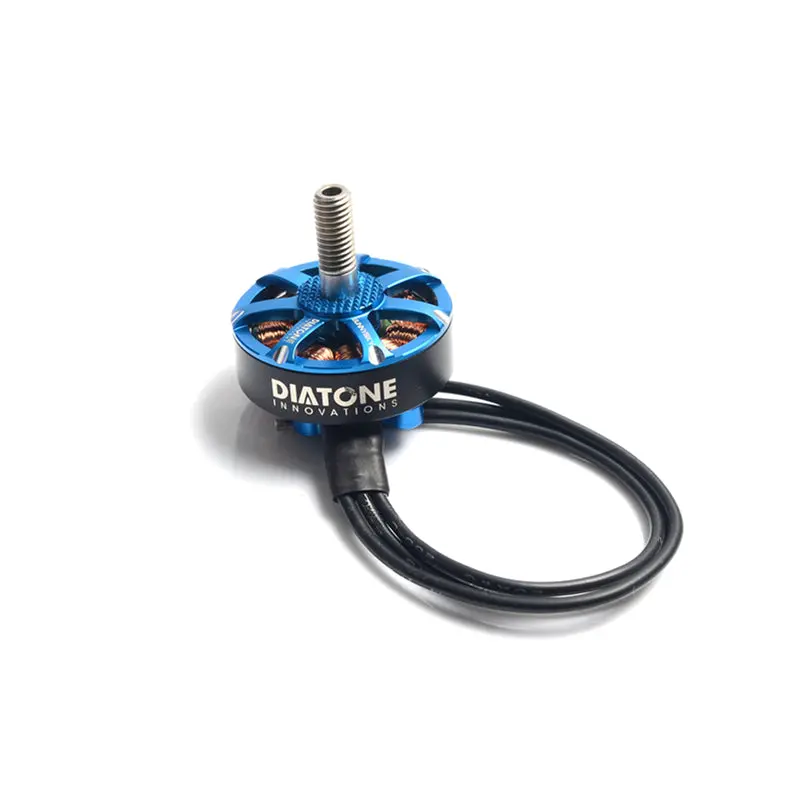

Diatone Edge 2306 2450KV Brushless Motor – Optimized for 3–5S FPV Drones (200–250mm Frames)

Description

Diatone Edge 2306 2450KV Brushless Motor 3-5S For 200 X220 250 RC Drone FPV Racing Frame


Description: Brand: Diatone  Item name: Edge 2306 2450KV brushless motor KV: 2450 (rpm/V) Stator diameter: 23mm Stator thickness: 6mm No. of stator arms: 12 No. of stator poles: 16 No. load current (A/10V): 2.0A Motor resistance: 24mΩ Max continuous current: 65A/10S Max continuous power: 1100W Weight: 32g Outside diameter: 23mm Body length: 40mm Max lipo cell: 3-5S ESC: 30-50A Recommended prop (inch): 5x4x3 / 5×4.5×3 / 5x5x3 CW screw threads   Package included:  1 x Edge 2306 2450KV brushless motor
